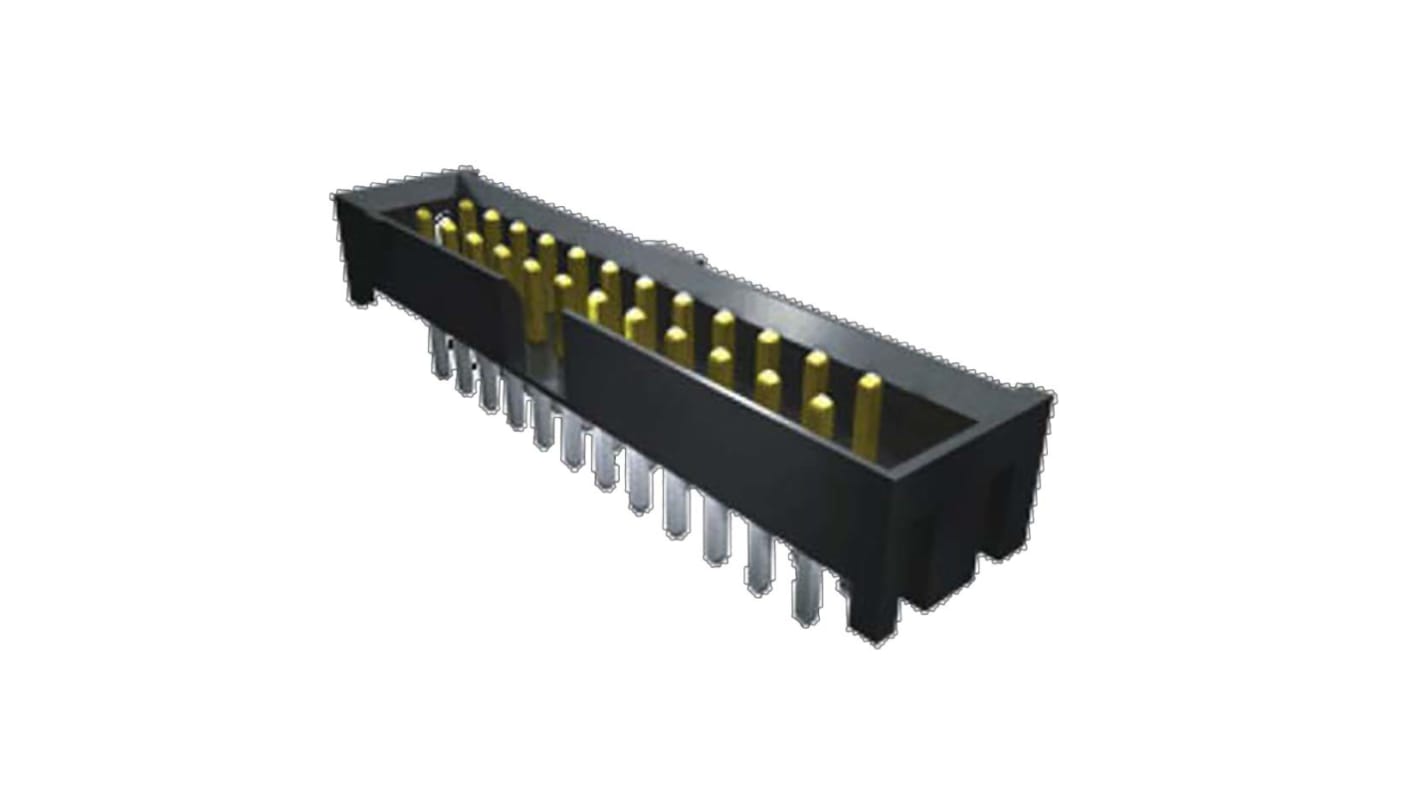

Samtec STMM Series Straight Through Hole PCB Header, 30 Contact(s), 2.0mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 198-1670
- Mfr. Part No.:
- STMM-115-02-G-D
- Brand:
- Samtec
Bulk discount available
Subtotal (1 tube of 16 units)*
£97.392
(exc. VAT)
£116.864
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
16 - 16 | £6.087 | £97.39 |
32 - 64 | £5.436 | £86.98 |
80 + | £5.174 | £82.78 |
*price indicative
- RS Stock No.:
- 198-1670
- Mfr. Part No.:
- STMM-115-02-G-D
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Samtec | |
Series | STMM | |
Pitch | 2.0mm | |
Number of Contacts | 30 | |
Number of Rows | 2 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Through Hole | |
Select all | ||
---|---|---|
Brand Samtec | ||
Series STMM | ||
Pitch 2.0mm | ||
Number of Contacts 30 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Through Hole | ||
The Samtec STMM series consist of shrouded terminal strip cable mate and it is having polarization notch. It also has black liquid Crystal Polymer insulating material.
Terminal material: phosphor bronze
SMT lead coplanarity:(0.10mm) .004" max
All common pin counts from 4 to 25
SMT lead coplanarity:(0.10mm) .004" max
All common pin counts from 4 to 25
