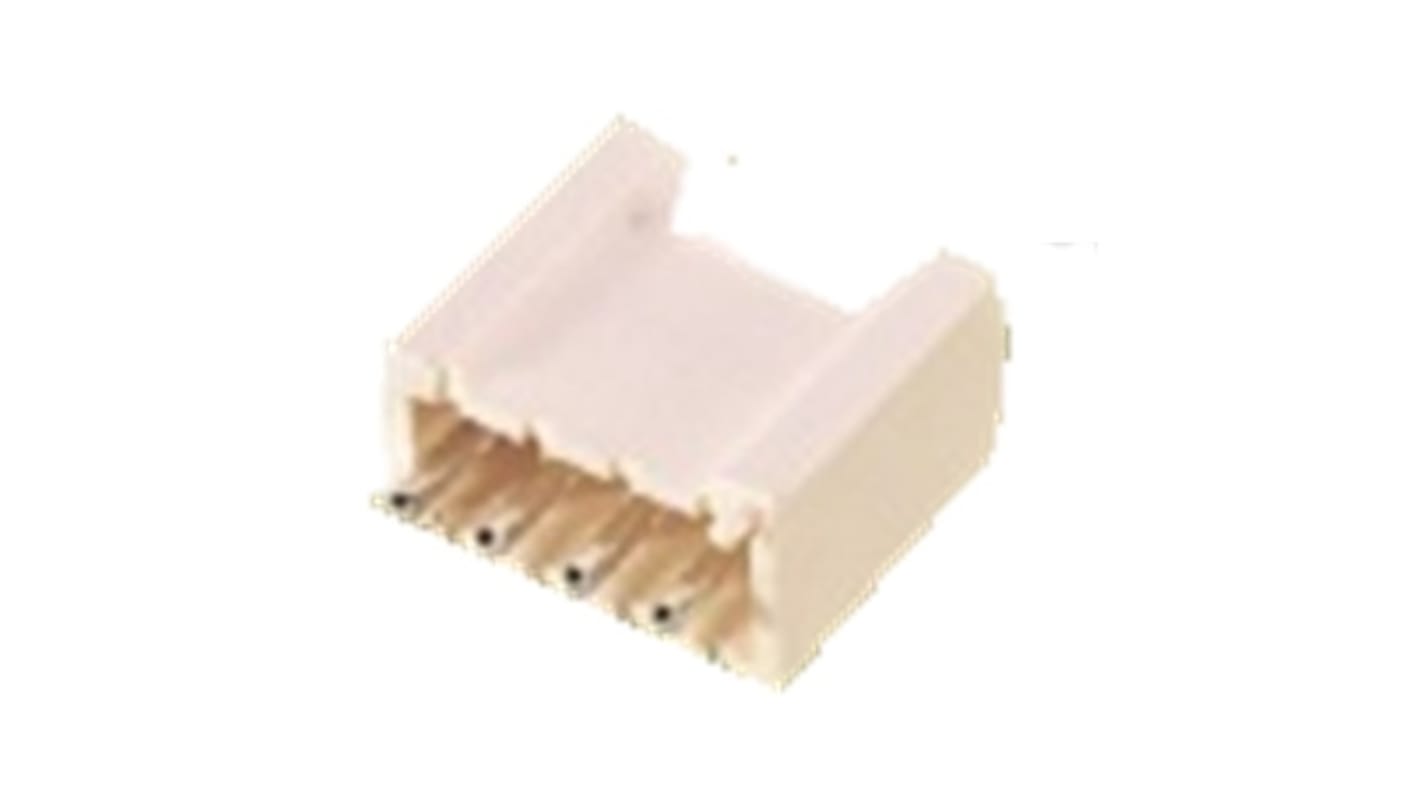

JST VH Series Vertical Surface PCB Header, 5 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
184-8380
Mfr. Part No.:
BH5P-VH-1(LF)(SN)
Brand:
JST
Find similar products by selecting one or more attributes.
Select all

Brand

JST

Series

VH

Product Type

PCB Header

Current

7A

Pitch

3.96mm

Housing Material

Glass Filled Nylon

Number of Contacts

5

Number of Rows

1

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mount Type

Surface

Connector System

Wire-to-Board

Contact Material

Brass

Row Pitch

3.96mm

Termination Type

Crimp

Minimum Operating Temperature

-25°C

Contact Gender

Male

Maximum Operating Temperature

85°C

Standards/Approvals

No

Voltage

250 V

COO (Country of Origin):
JP
The header is tall and fully shrouded so as to prevent the resin used to coat the PCB coming into contact with the mating pins. Designed for use specifically with resin coated ("potted") PC boards. The header is designed to accept VH mating receptacles. The housing has a lock mechanism which prevents the connector from coming loose due to vibration. The mechanism also prevents misinsertion.

Header for 3.96mm (.156") pitch VH connector for use specifically with resin coated ("potted") PC boards

This header is tall and fully shrouded so as to prevent the resin used to coat the PC boards from coming into contact with the mating pins.

Interchangeability

Designed to accept VH mating receptacles.
