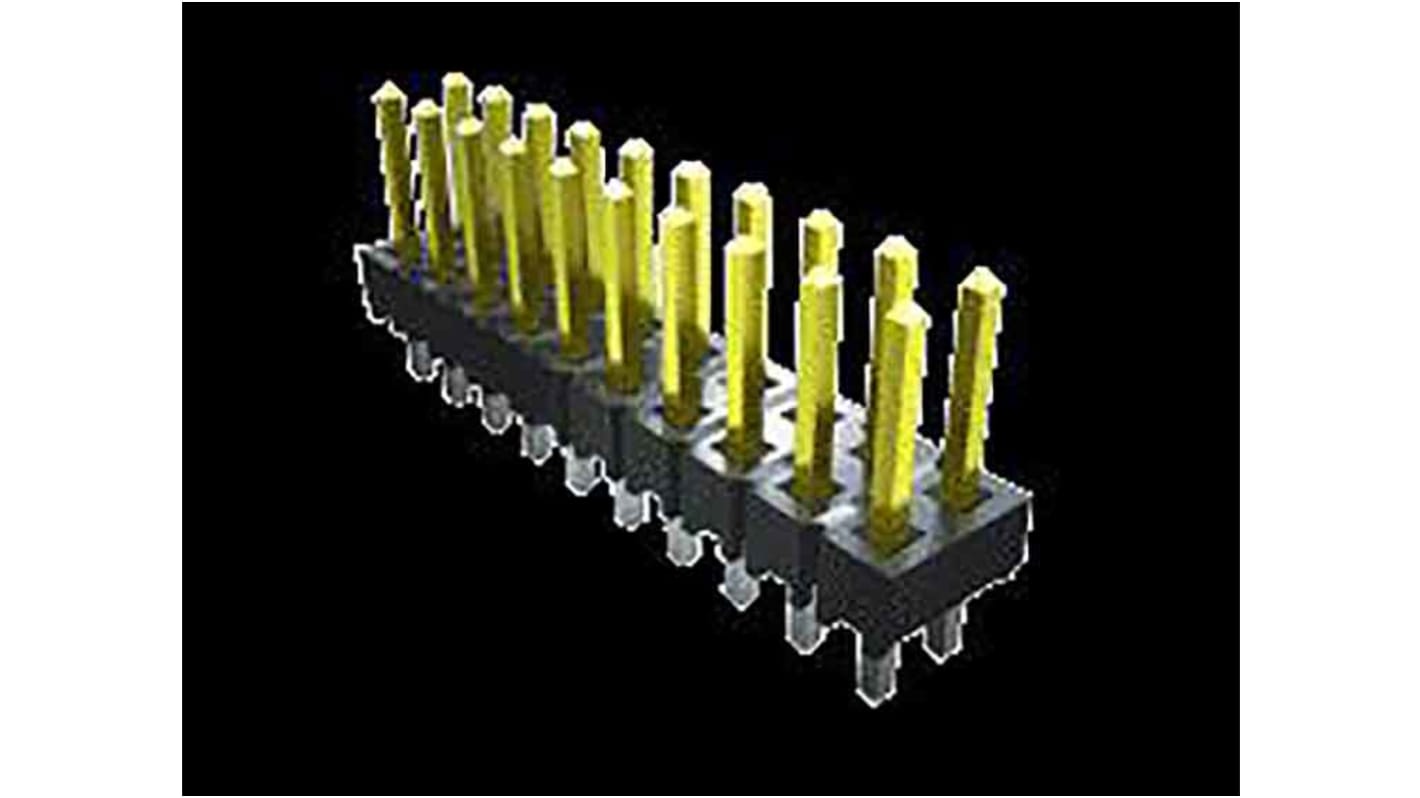

Samtec TSW Series Right Angle Through Hole Pin Header, 40 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 180-3448
- Mfr. Part No.:
- TSW-120-08-T-D-RA
- Brand:
- Samtec
6 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£1.842
(exc. VAT)
£2.21
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £1.842 | £9.21 |
25 - 45 | £1.674 | £8.37 |
50 - 95 | £1.534 | £7.67 |
100 - 245 | £1.414 | £7.07 |
250 + | £1.312 | £6.56 |
*price indicative
- RS Stock No.:
- 180-3448
- Mfr. Part No.:
- TSW-120-08-T-D-RA
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Pitch: .100" (2.54 mm)
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Termination: Through-hole
Application: large variety of standard pin counts, terminal lengths and options
Special Features: Many options for optimizing cost and performance with platings and ruggedizing features
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Termination: Through-hole
Application: large variety of standard pin counts, terminal lengths and options
Special Features: Many options for optimizing cost and performance with platings and ruggedizing features
Specifications
Attribute | Value |
---|---|
Series | TSW |
Pitch | 2.54mm |
Number of Contacts | 40 |
Number of Rows | 2 |
Body Orientation | Right Angle |
Shrouded/Unshrouded | Unshrouded |
Connector System | Board to Board |
Mounting Type | Through Hole |
Termination Method | Solder |
Contact Material | Phosphor Bronze |
Contact Plating | Tin |
Current Rating | 4.3A |
Tail Pin Length | 1.52mm |
Mating Pin Length | 5.84mm |
Voltage Rating | 400.0 V , 450.0 V ac, 500.0 V ac, 550.0 V ac |
