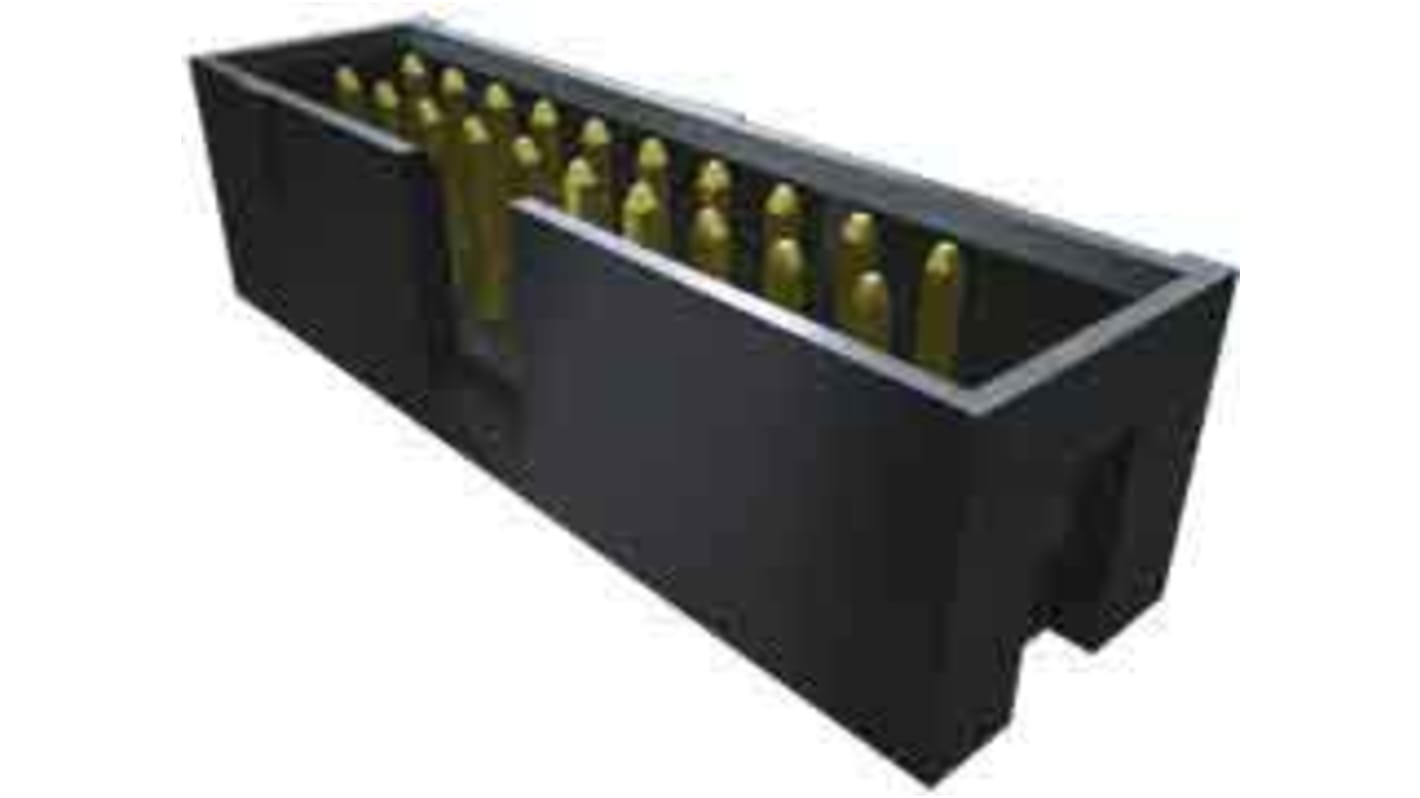

Samtec TST Series Straight Through Hole PCB Header, 16 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 180-3345
- Mfr. Part No.:
- TST-108-01-G-D
- Brand:
- Samtec
11 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£2.998
(exc. VAT)
£3.598
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.998 | £14.99 |
| 25 - 45 | £2.756 | £13.78 |
| 50 - 95 | £2.546 | £12.73 |
| 100 - 245 | £2.372 | £11.86 |
| 250 + | £2.214 | £11.07 |
*price indicative
- RS Stock No.:
- 180-3345
- Mfr. Part No.:
- TST-108-01-G-D
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Most common pin counts from 10 to 72
Polarization notch
.100" (2.54 mm) pitch
Through-hole vertical and right-angle
Polarization notch
.100" (2.54 mm) pitch
Through-hole vertical and right-angle
Specifications
Attribute | Value |
|---|---|
| Series | TST |
| Pitch | 2.54mm |
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Connector System | Board to Board |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 3.4A |
| Voltage Rating | 1.0 kV |
