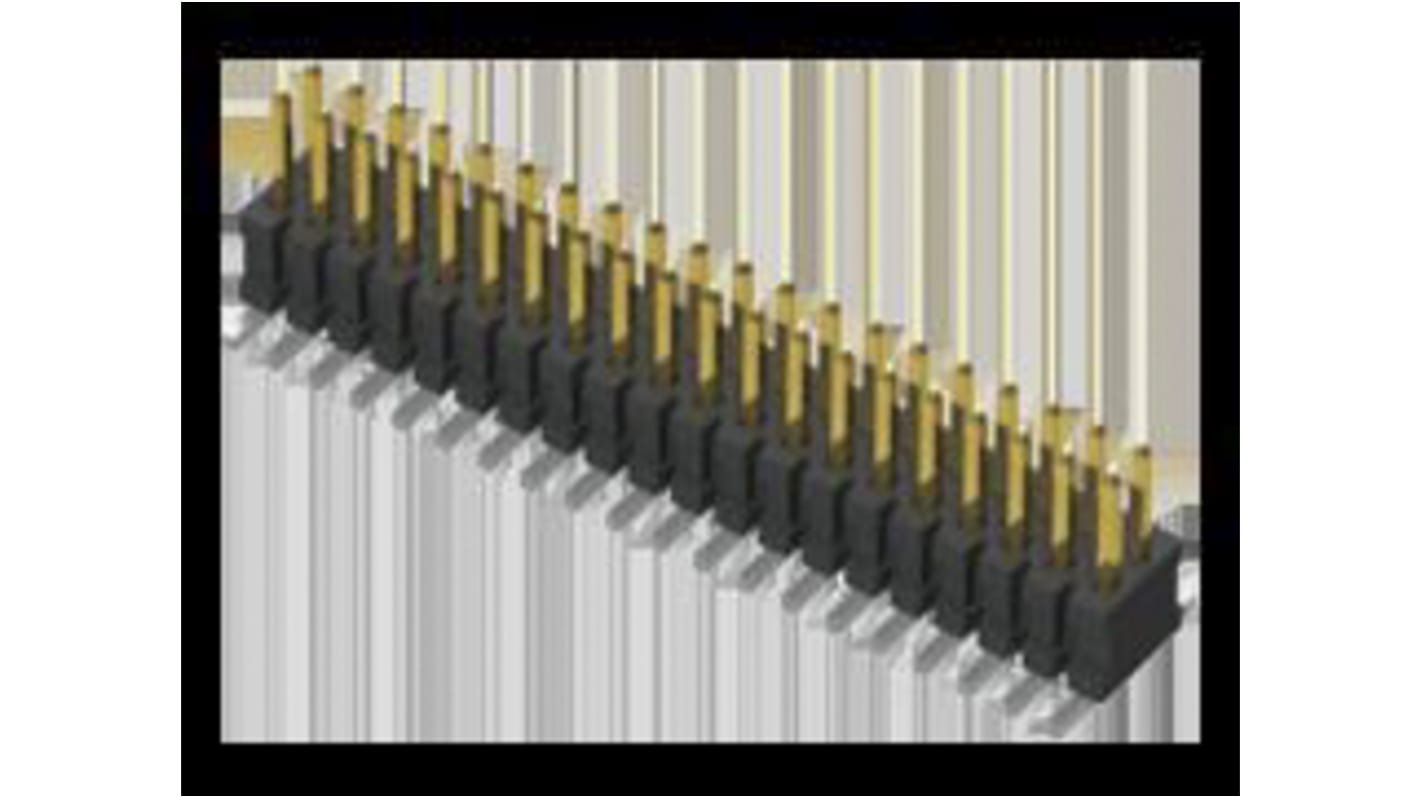

Samtec FTSH Series Straight Surface Mount Pin Header, 10 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

RS Stock No.:: 180-2565
Mfr. Part No.:: FTSH-105-01-L-DV-K-P-TR
Brand:: Samtec

Samtec FTSH Series Straight Surface Mount Pin Header, 10 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded

219 In stock - FREE next working day delivery available

Price Each (On a Reel of 500)

£2.029

(exc. VAT)

£2.435

(inc. VAT)

Units	Per unit	Per Reel*
500 +	£2.029	£1,014.50

*price indicative

RS Stock No.:: 180-2565
Mfr. Part No.:: FTSH-105-01-L-DV-K-P-TR
Brand:: Samtec

Technical Reference

Datasheet

Legislation and Compliance

Product Details

Samtec FTSH Series Pin Header, Gold Contact Plating, 3.4A - FTSH-105-01-L-DV-K-P-TR

This Samtec pin header with a 1.27 mm pitch from the FTSH series, model FTSH 120 01 F DV, is a versatile connector suitable for various applications in automation, electronics, electrical, and mechanical industries. Designed with high quality materials and precise specifications, this pin header offers reliable performance and durability.

Features & Benefits

• Straight pin header design for easy wire to board connection
• Features a through hole mounting type for secure installation
• Constructed with phosphor bronze contacts for enhanced conductivity
• Gold plated pins ensure excellent signal transmission and resistance to corrosion
• Can handle high current ratings up to 3.4 A, suitable for demanding applications
• Comes with 10 pins in 2 rows, providing flexibility in connectivity
• Unshrouded design for easy accessibility and connection
• Offers a pitch of 1.27 mm, ideal for compact and space constrained applications
• Solder termination method for a strong and reliable connection

Applications

• Ideal for use in PCB assemblies in automation and electronics applications
• Suitable for connecting various components in electrical equipment
• Perfect for board-to-board connections in mechanical systems
• Can be used in industrial control systems for reliable signal transmission
• Suitable for applications requiring a secure and high-current connection

Can it handle high current ratings effectively?

Yes, the Samtec pin header is designed to handle high current ratings of up to 3.4 A, making it ideal for demanding applications.

Is the connector suitable for through-hole mounting?

Yes, this pin header features a through-hole mounting type, ensuring a secure and stable connection in your application.

Will the gold-plated pins provide reliable signal transmission?

Yes, the gold-plated pins offer excellent conductivity and resistance to corrosion, ensuring reliable signal transmission.

Can it be used for wire-to-board connections?

Yes, this pin header is designed for wire-to-board connections, making it suitable for various connection scenarios in your application.

Is the pitch of 1.27 mm suitable for compact applications?

Yes, the 1.27 mm pitch of this pin header makes it ideal for compact and space-constrained applications where precision is essential.

Specifications

Attribute	Value
Series	FTSH
Pitch	1.27mm
Number of Contacts	10
Number of Rows	2
Body Orientation	Straight
Shrouded/Unshrouded	Unshrouded
Connector System	Wire to Board
Mounting Type	Surface Mount
Termination Method	Solder
Contact Material	Phosphor Bronze
Contact Plating	Gold
Current Rating	3.4A
Tail Pin Length	0.1mm
Mating Pin Length	3.05mm
