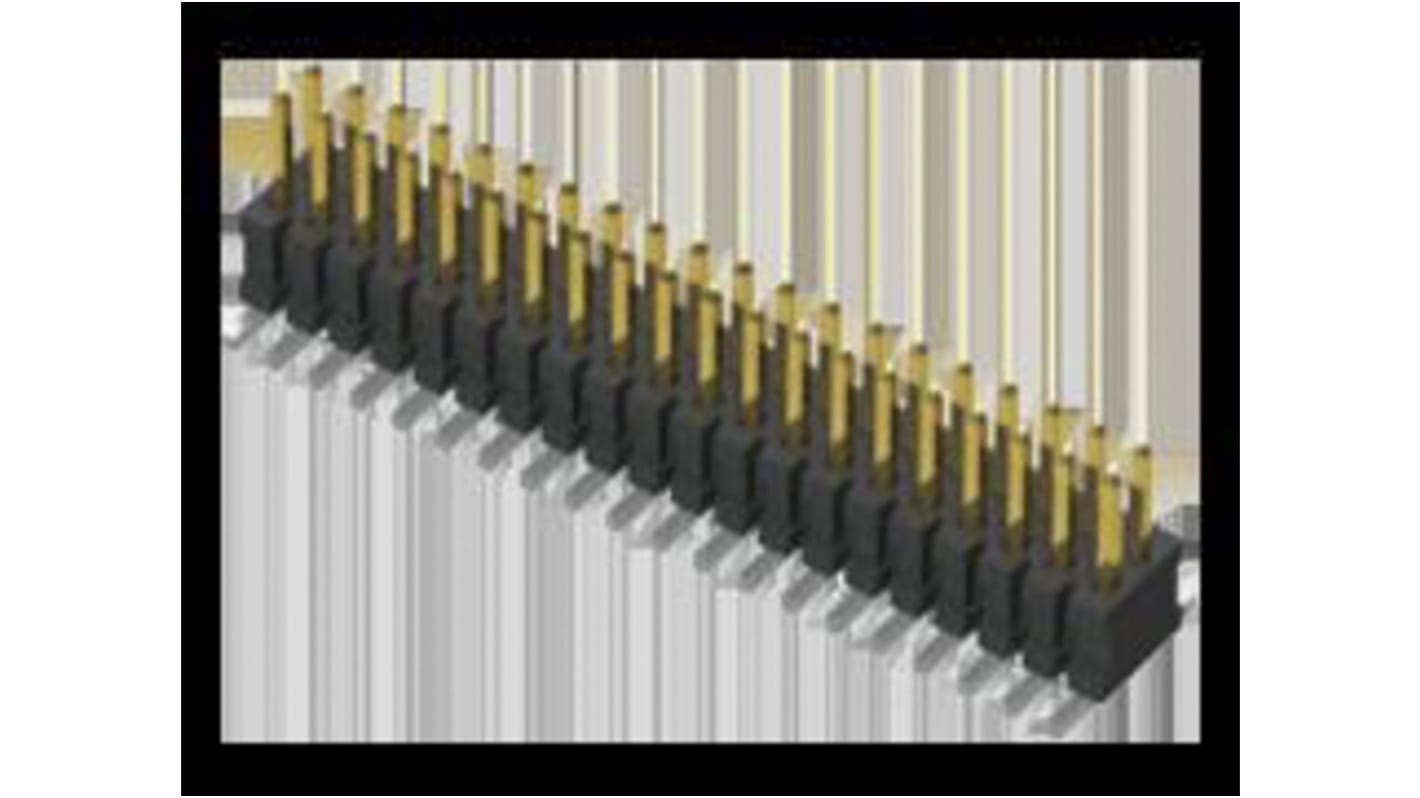

Samtec FTSH Series Straight Through Hole Pin Header, 34 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 180-1505
- Mfr. Part No.:
- FTSH-117-01-L-DV-K
- Brand:
- Samtec
Subtotal (1 tube of 27 units)*
£140.94
(exc. VAT)
£169.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
27 + | £5.22 | £140.94 |
*price indicative
- RS Stock No.:
- 180-1505
- Mfr. Part No.:
- FTSH-117-01-L-DV-K
- Brand:
- Samtec
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Samtec | |
Series | FTSH | |
Pitch | 1.27mm | |
Number of Contacts | 34 | |
Number of Rows | 2 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Unshrouded | |
Mounting Type | Through Hole | |
Connector System | Wire to Board | |
Termination Method | Solder | |
Contact Material | Phosphor Bronze | |
Contact Plating | Gold | |
Current Rating | 3.4A | |
Tail Pin Length | 0.1mm | |
Mating Pin Length | 3.05mm | |
Select all | ||
---|---|---|
Brand Samtec | ||
Series FTSH | ||
Pitch 1.27mm | ||
Number of Contacts 34 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type Through Hole | ||
Connector System Wire to Board | ||
Termination Method Solder | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Current Rating 3.4A | ||
Tail Pin Length 0.1mm | ||
Mating Pin Length 3.05mm | ||
