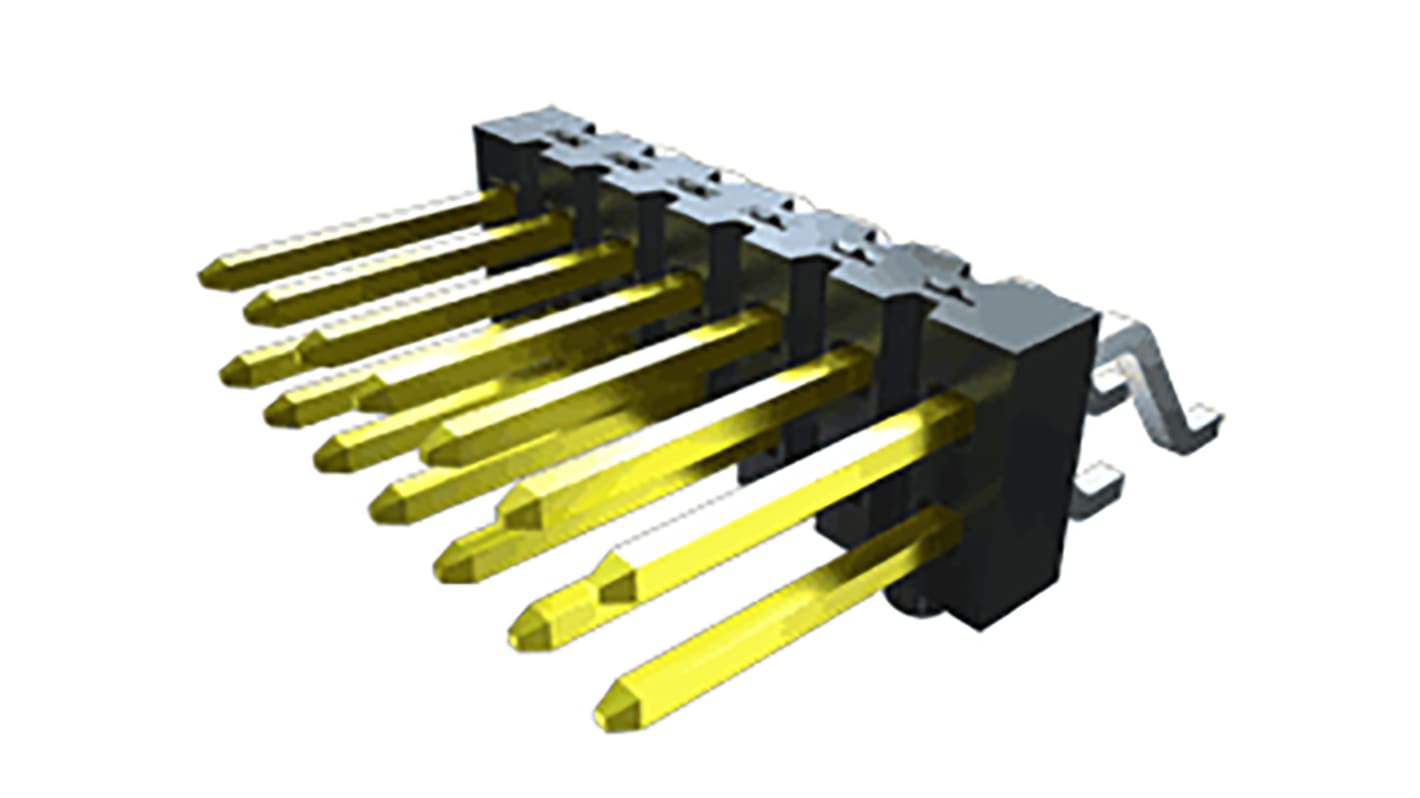

Samtec TSM Series Straight Surface Mount Pin Header, 16 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 179-8890
- Mfr. Part No.:
- TSM-108-01-L-DV-P-TR
- Brand:
- Samtec
Available to back order for despatch 22/07/2024
Price Each (On a Reel of 150)
£1.813
(exc. VAT)
£2.176
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 150 + | £1.813 | £271.95 |
*price indicative
- RS Stock No.:
- 179-8890
- Mfr. Part No.:
- TSM-108-01-L-DV-P-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
This surface mount .025” square post terminal strip features single, double and triple row options with straight, right-angle or mixed technology pins. This is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500).
Application: Choice of standard post heights provide solutions to mate with any Samtec socket
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, horizontal
Pitch: .100" (2.54 mm)
Special Features: Designed specifically for surface mount applications with many options to facilitate processing
Termination: Surface mount, mixed technology
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, horizontal
Pitch: .100" (2.54 mm)
Special Features: Designed specifically for surface mount applications with many options to facilitate processing
Termination: Surface mount, mixed technology
Specifications
Attribute | Value |
|---|---|
| Series | TSM |
| Pitch | 2.54mm |
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire to Board |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating | 4.0A |
| Tail Pin Length | 1.27mm |
| Mating Pin Length | 5.84mm |
| Voltage Rating | 475.0 V |
