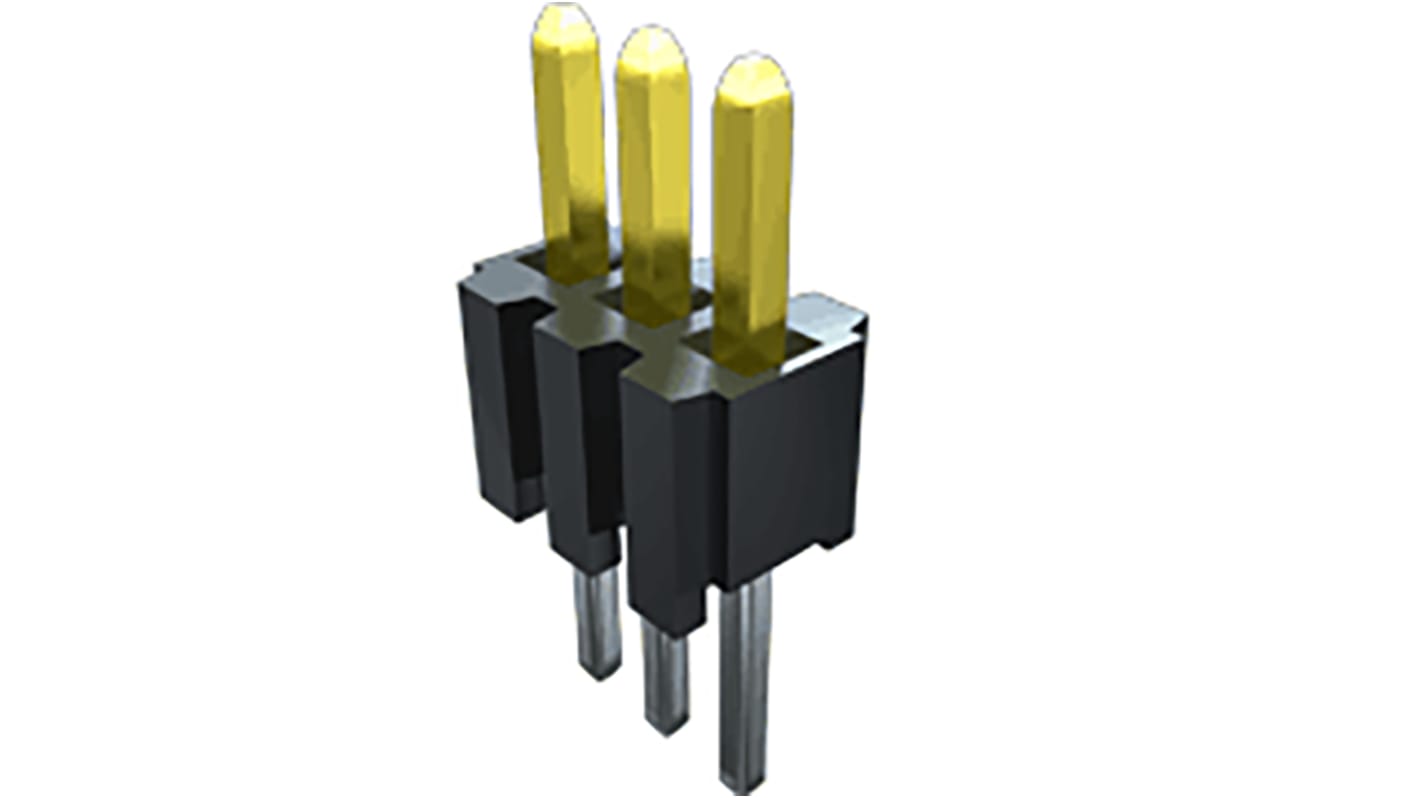

Samtec TMS Series Straight Through Hole Pin Header, 8 Contact(s), 1.27mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 179-8730
- Mfr. Part No.:
- TMS-108-01-G-S
- Brand:
- Samtec
Available to back order for despatch 21/05/2024
Added
Price Each (In a Tube of 58)
£1.274
(exc. VAT)
£1.529
(inc. VAT)
Units | Per unit | Per Tube* |
58 + | £1.274 | £73.892 |
*price indicative |
- RS Stock No.:
- 179-8730
- Mfr. Part No.:
- TMS-108-01-G-S
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Orientation: Vertical, right-angle
Pitch: .050" (1.27 mm)
Application: Optional polarization for single or double row design up to 100 pins
Contact System: .018" (0.46 mm) square post
Termination: Through-hole
Pitch: .050" (1.27 mm)
Application: Optional polarization for single or double row design up to 100 pins
Contact System: .018" (0.46 mm) square post
Termination: Through-hole
Specifications
Attribute | Value |
---|---|
Series | TMS |
Pitch | 1.27mm |
Number of Contacts | 8 |
Number of Rows | 1 |
Body Orientation | Straight |
Shrouded/Unshrouded | Unshrouded |
Mounting Type | Through Hole |
Connector System | Board to Board |
Termination Method | Solder |
Contact Material | Phosphor Bronze |
Contact Plating | Gold |
Current Rating | 5.0A |
Tail Pin Length | 3.05mm |
Mating Pin Length | 5.84mm |
