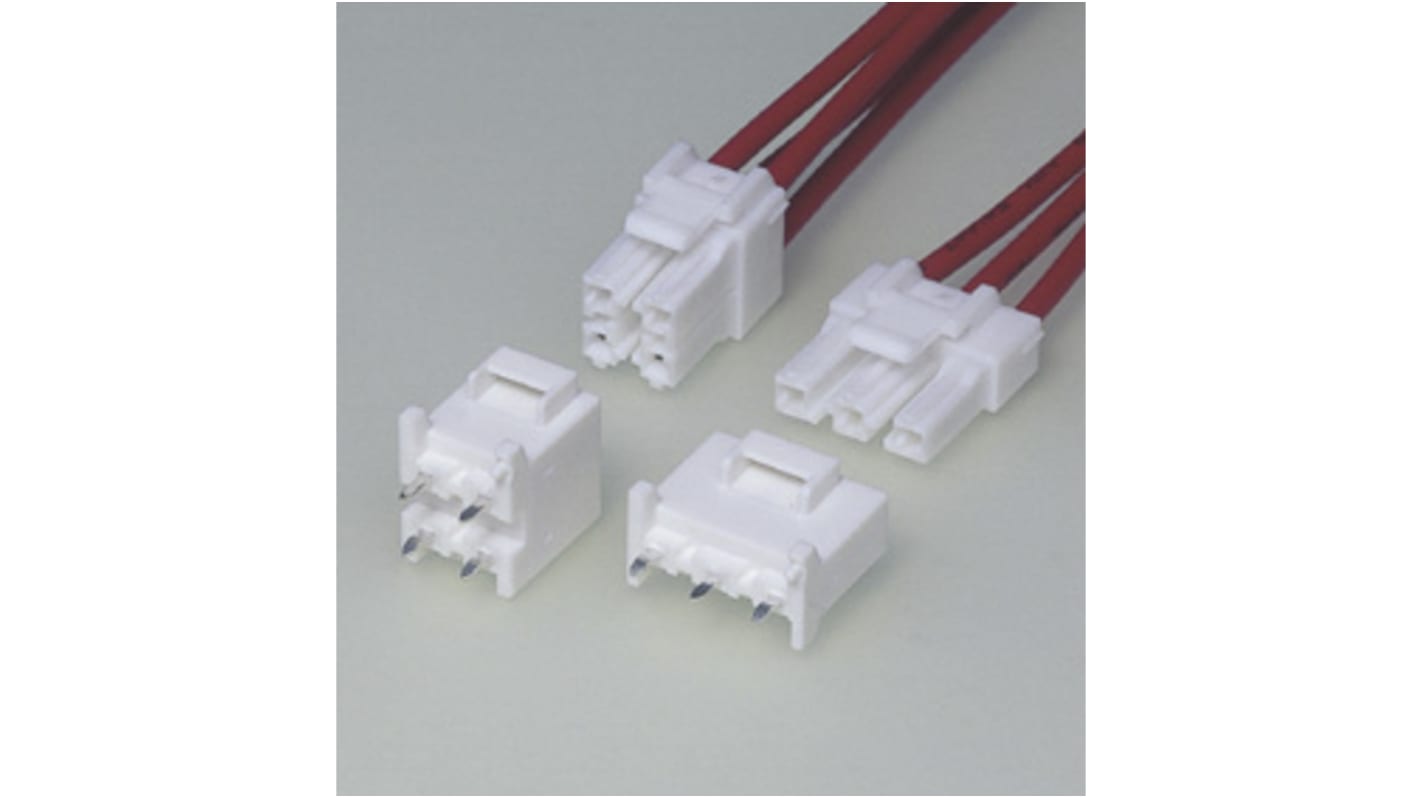

JST VYH Series Vertical PCB PCB Header, 3 Contact(s), 6.5 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 177-4565
- Mfr. Part No.:
- B03B-VYHSK-M-1
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)*
£5.50
(exc. VAT)
£6.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 360 unit(s) shipping from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.55 | £5.50 |
| 50 - 240 | £0.505 | £5.05 |
| 250 - 490 | £0.465 | £4.65 |
| 500 - 990 | £0.43 | £4.30 |
| 1000 + | £0.402 | £4.02 |
*price indicative
- RS Stock No.:
- 177-4565
- Mfr. Part No.:
- B03B-VYHSK-M-1
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | VYH | |
| Product Type | PCB Header | |
| Pitch | 6.5mm | |
| Current | 15A | |
| Housing Material | Glass Filled Nylon | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Connector System | Wire-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -25°C | |
| Row Pitch | 6.5mm | |
| Termination Type | Crimp | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 85°C | |
| Tail Pin Length | 3.8mm | |
| Standards/Approvals | No | |
| Voltage | 300 V | |
| Select all | ||
|---|---|---|
Brand JST | ||
Series VYH | ||
Product Type PCB Header | ||
Pitch 6.5mm | ||
Current 15A | ||
Housing Material Glass Filled Nylon | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Connector System Wire-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Minimum Operating Temperature -25°C | ||
Row Pitch 6.5mm | ||
Termination Type Crimp | ||
Contact Gender Male | ||
Maximum Operating Temperature 85°C | ||
Tail Pin Length 3.8mm | ||
Standards/Approvals No | ||
Voltage 300 V | ||
- COO (Country of Origin):
- JP
This connector is designed for wire-to-board 6.5mm pitch connector corresponding to large current. Secondary retainer, which prevents from insufficient insertion of contact and coming off contact, may use and large current circuit can be connected certainly and safely.
corresponding to large current
misinsertion prevention
housing lance for contact retention
secondary retainer
