Samtec TSW Series Straight Through Hole Pin Header, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

View all PCB Headers
Bulk discount available

Subtotal (1 box of 6370 units)*

£751.66

(exc. VAT)

£904.54

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,994,450 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
6370 - 57330£0.118£751.66
63700 - 312130£0.115£732.55
318500 - 630630£0.112£713.44
637000 - 3178630£0.109£694.33
3185000 +£0.106£675.22

*price indicative

RS Stock No.:
161-2243
Mfr. Part No.:
TSW-102-14-G-S
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Series

TSW

Pitch

2.54mm

Number of Contacts

2

Number of Rows

1

Body Orientation

Straight

Shrouded/Unshrouded

Unshrouded

Connector System

Board to Board, Wire to Board

Mounting Type

Through Hole

Termination Method

Solder

Contact Plating

Gold

Contact Material

Phosphor Bronze

Current Rating

4.7A

Voltage Rating

465.0 V

COO (Country of Origin):
US

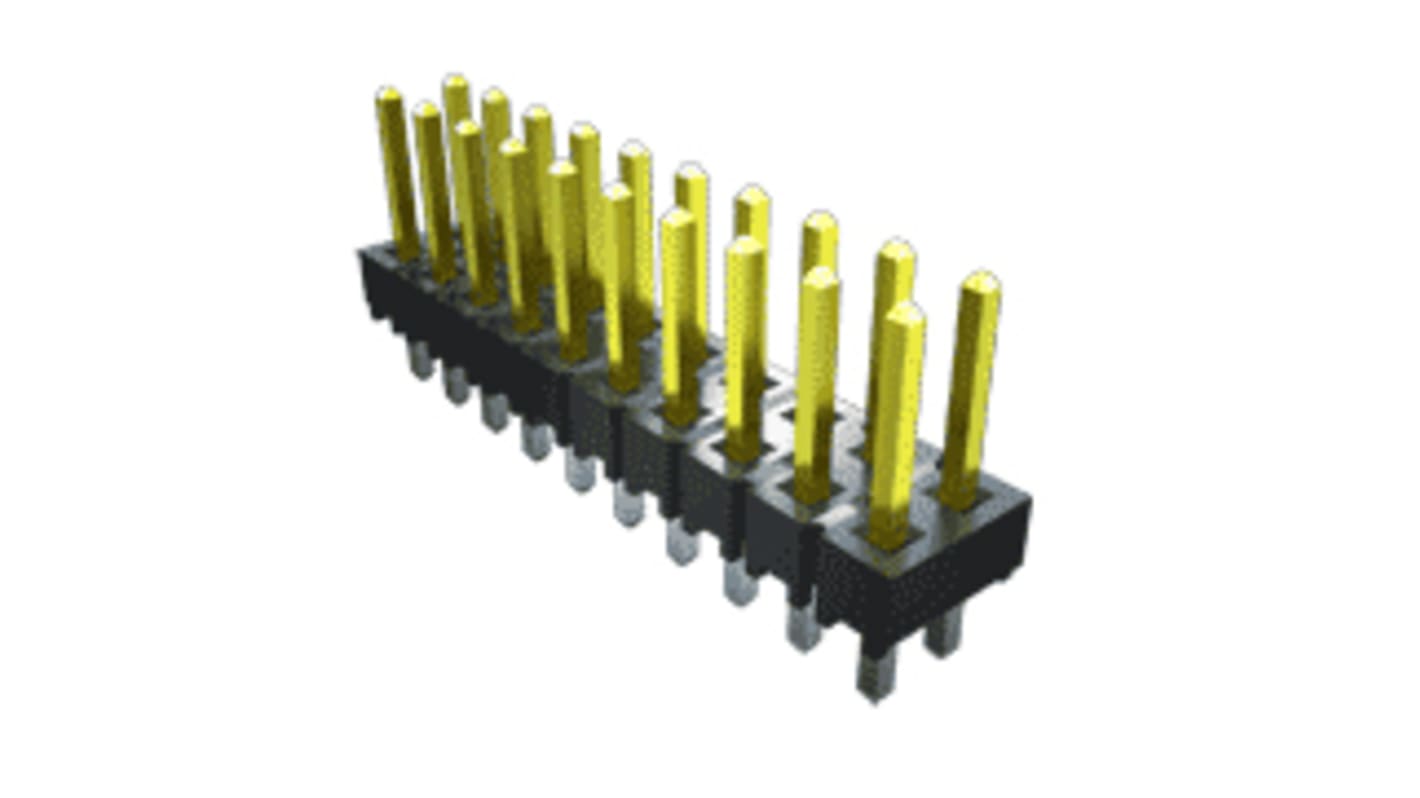

This through-hole .025” square post terminal strip features single, double and triple row options with straight or right-angle pins in a variety of post heights and body positions. This connector is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500).

Pitch: .100" (2.54 mm)
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Termination: Through-hole
Application: Industry's largest variety of standard pin counts, terminal lengths and options
Special Features: Many options for optimizing cost and performance with platings and ruggedizing features
