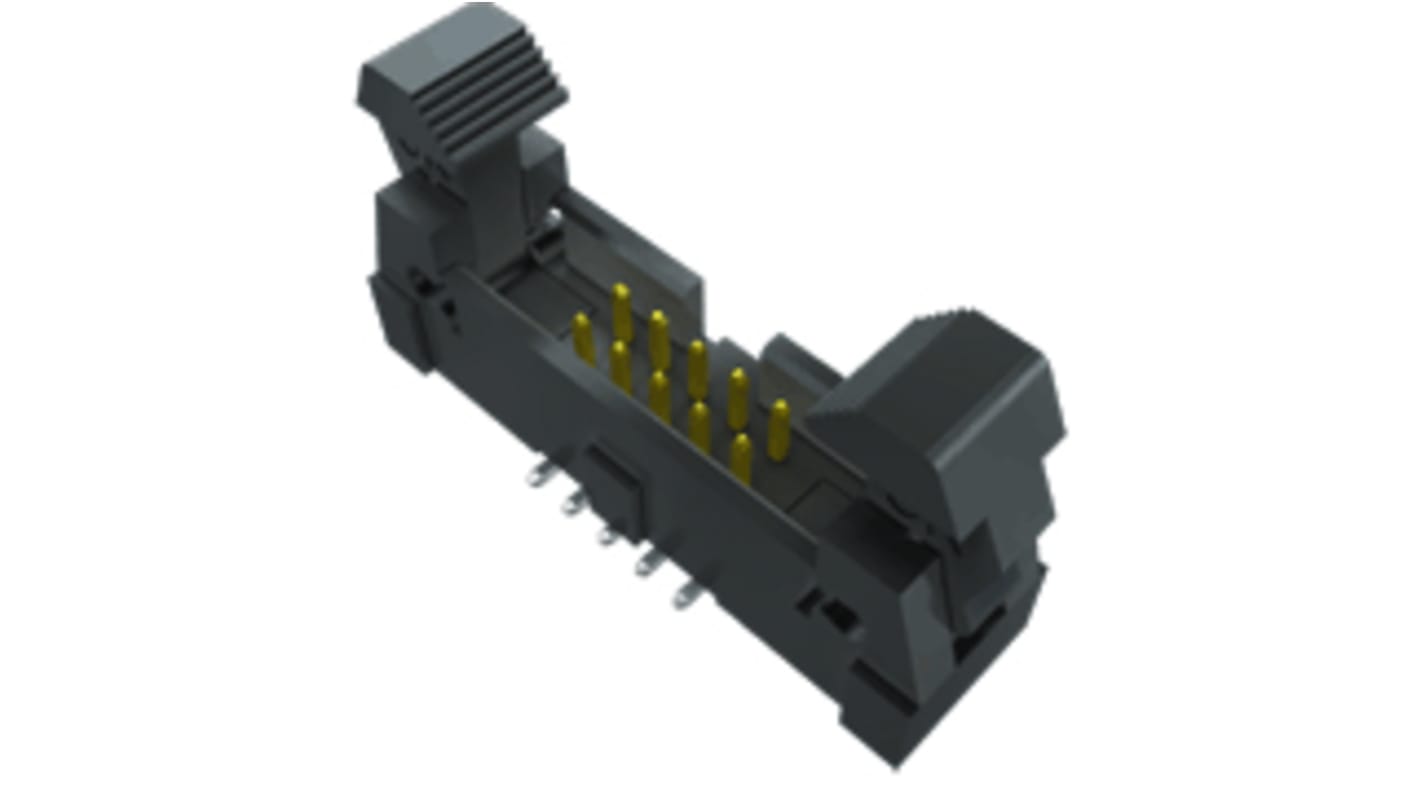

Samtec EHF Series Straight Surface Mount PCB Header, 20 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 159-3085
- Mfr. Part No.:
- EHF-110-01-F-D-SM-LC
- Brand:
- Samtec
Available to back order for despatch 30/05/2024
Added
Price Each (In a Tube of 20)
£4.606
(exc. VAT)
£5.527
(inc. VAT)
| Units | Per unit | Per Tube* |
| 20 - 180 | £4.606 | £92.12 |
| 200 + | £3.837 | £76.74 |
| *price indicative | ||
- RS Stock No.:
- 159-3085
- Mfr. Part No.:
- EHF-110-01-F-D-SM-LC
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
.050" Shrouded IDC Ejector Header
.050" (1.27 mm) pitch
All common pin counts from 4 to 25
Through-hole, right-angle and surface mount
Polarization notch
Optional caps to lock cable to header
All common pin counts from 4 to 25
Through-hole, right-angle and surface mount
Polarization notch
Optional caps to lock cable to header
Specifications
Attribute | Value |
|---|---|
| Series | EHF |
| Pitch | 1.27mm |
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Connector System | Wire to Board |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
