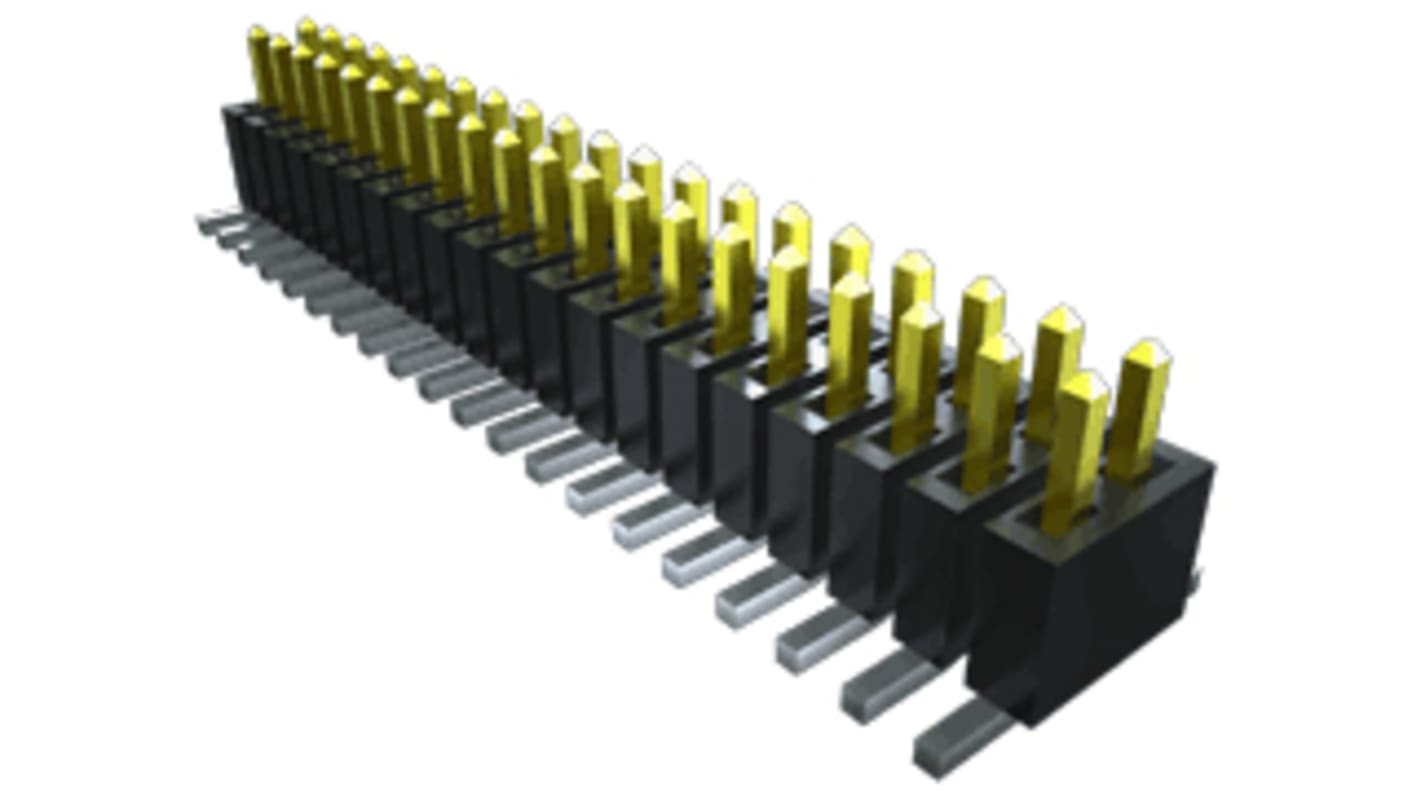

Samtec FTSH Series Straight Surface Mount Pin Header, 16 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 158-5775
- Mfr. Part No.:
- FTSH-108-01-L-DV-K
- Brand:
- Samtec
Save 9% when you buy 285 units
Subtotal (1 tube of 57 units)*
£180.747
(exc. VAT)
£216.885
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 57 - 57 | £3.171 | £180.75 |
| 114 - 228 | £3.015 | £171.86 |
| 285 + | £2.866 | £163.36 |
*price indicative
- RS Stock No.:
- 158-5775
- Mfr. Part No.:
- FTSH-108-01-L-DV-K
- Brand:
- Samtec
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | FTSH | |
| Pitch | 1.27mm | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board to Board, Wire to Board | |
| Mounting Type | Surface Mount | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Current Rating | 3.4A | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Series FTSH | ||
Pitch 1.27mm | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board to Board, Wire to Board | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Current Rating 3.4A | ||
