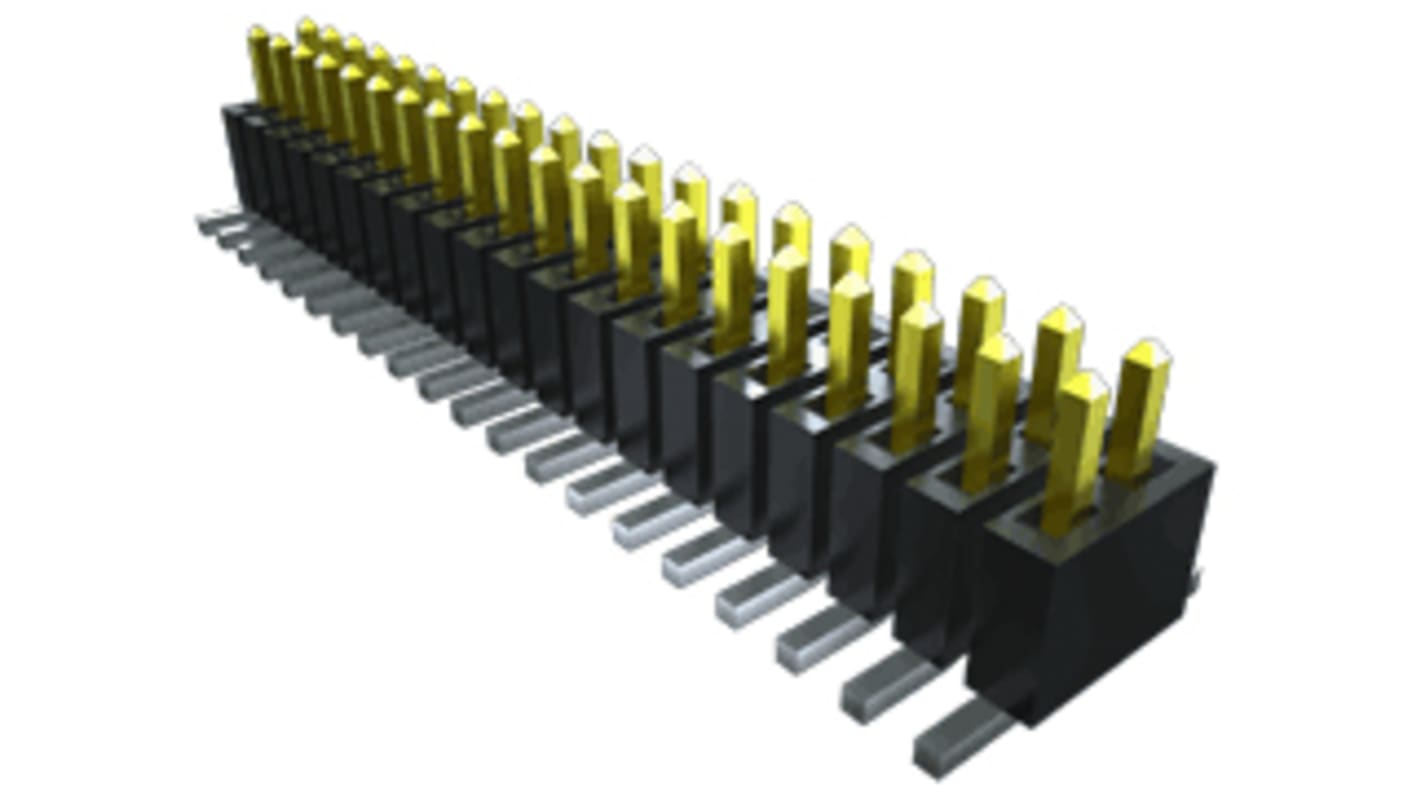

Samtec FTSH, 10 Way, 2 Row, Vertical Pin Header

  • RS Stock No. 158-5762
  • Mfr. Part No. FTSH-105-01-F-DV
  • Brand Samtec
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Surface Mount Micro Headers - FTSH Series

FTSH series SMT micro headers with a 1.27 mm pitch and gold plated contacts. This range of FTSH Series 1.27 mm pitch SMT micro terminal strips can be mated with appropriate socket strips or IDC cable assemblies.

Current rating 1.75 A at 80 °C
Operating temperature -55 to 125 °C

Note

FTSH Series SMT Terminal Strips mate with:
FFSD Series IDC cable assemblies, see stock number 159-880 typical.
CLP Series micro socket strips, see stock number 481-4695 typical.
FLE Series socket strips, see stock number 766-8959 typical.

Specifications
Attribute Value
Series FTSH
Pitch 1.27mm
Number of Contacts 10
Number of Rows 2
Body Orientation Vertical
Shrouded/Unshrouded Unshrouded
Mounting Type Surface Mount
Connector System Board to Board, Wire to Board
Termination Method Solder
Contact Plating Gold
Contact Material Phosphor Bronze
Current Rating 3.4A
92 In stock for FREE next working day delivery
Price Each (In a Tube of 92)
£ 1.169
(exc. VAT)
£ 1.403
(inc. VAT)
Units
Per unit
Per Tube*
92 - 92
£1.169
£107.548
184 - 368
£1.052
£96.784
460 +
£0.958
£88.136
*price indicative
