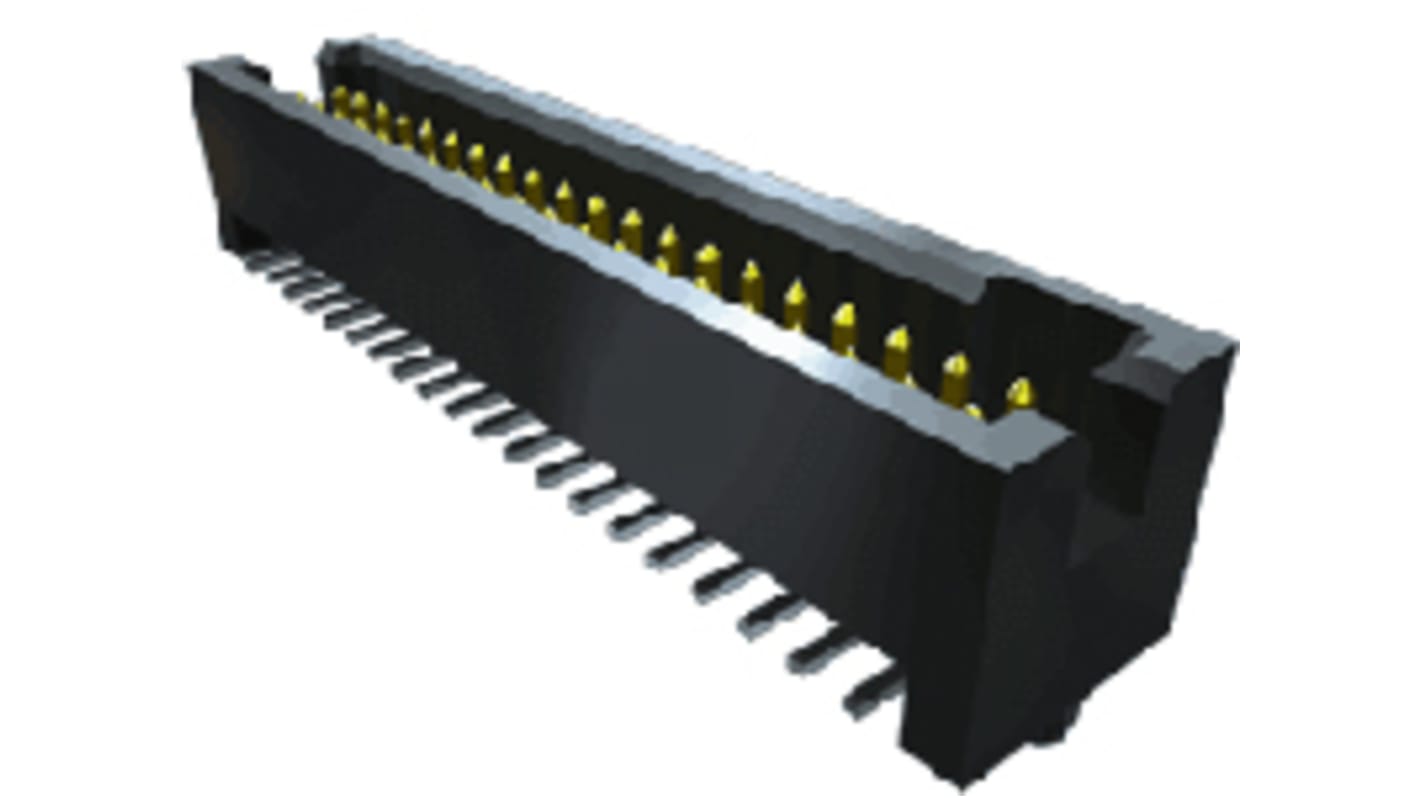

Samtec TFM Series Right Angle Surface Mount PCB Header, 40 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded

RS Stock No.:: 155-7917
Mfr. Part No.:: TFM-120-02-L-DH
Brand:: Samtec

Technical Reference

Samtec TFM Series Right Angle Surface Mount PCB Header, 40 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

6 In stock - FREE next working day delivery available

Price Each

£7.07

(exc. VAT)

£8.48

(inc. VAT)

Units	Per unit
1 - 9	£7.07
10 - 49	£6.51
50 - 99	£6.16
100 - 499	£5.84
500 +	£5.70

RS Stock No.:: 155-7917
Mfr. Part No.:: TFM-120-02-L-DH
Brand:: Samtec

COO (Country of Origin):: CR

Attribute	Value
Series	TFM
Pitch	1.27mm
Number of Contacts	40
Number of Rows	2
Body Orientation	Right Angle
Shrouded/Unshrouded	Shrouded
Mounting Type	Surface Mount
Connector System	Board to Board, Wire to Board
Termination Method	Solder
Contact Plating	Gold
Contact Material	Phosphor Bronze
Current Rating	3.2A
Voltage Rating	250.0 V
