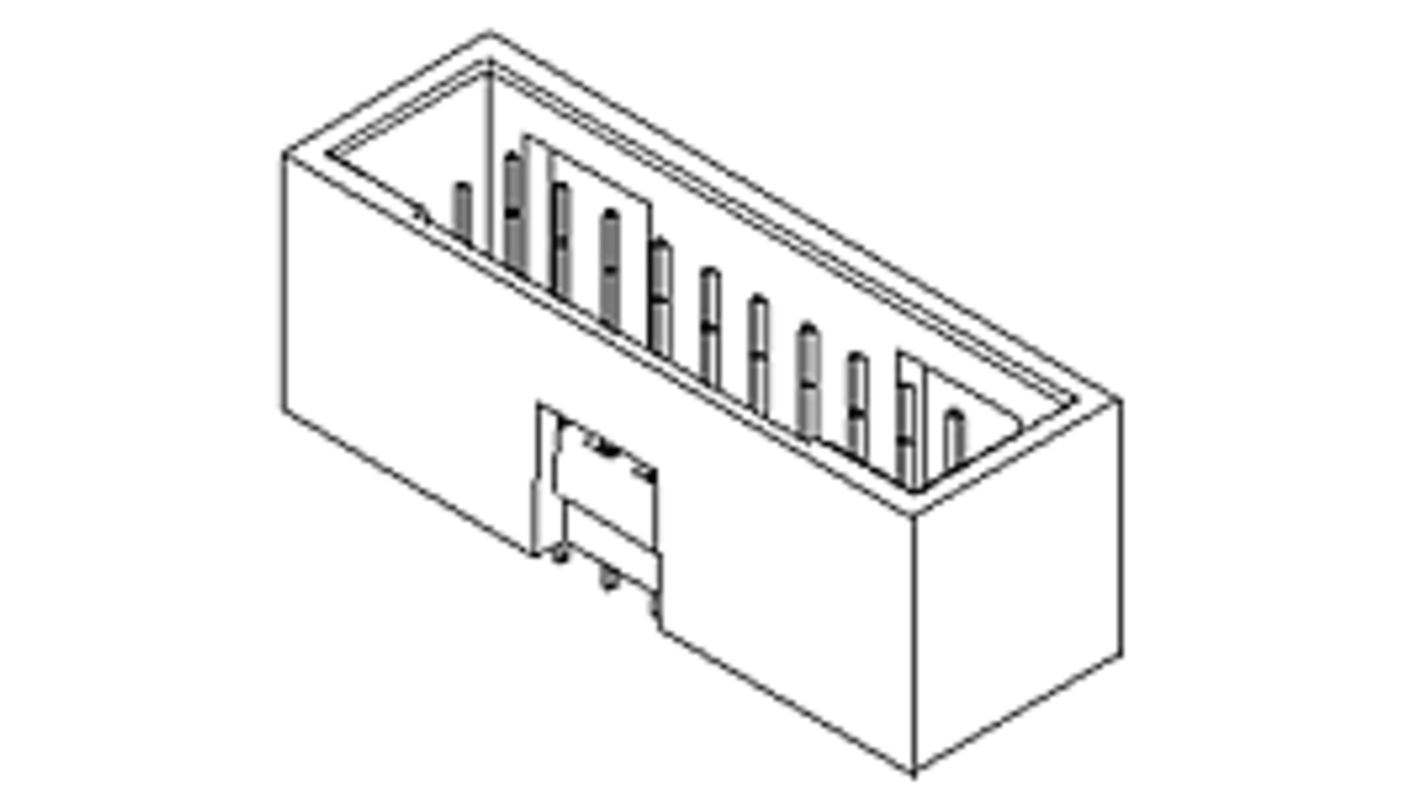

Molex 70567 Series Vertical Through Hole PCB Header Pin, 8 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 685-103
- Mfr. Part No.:
- 15-80-0081
- Brand:
- Molex
Subtotal (1 tube of 960 units)*
£658.29
(exc. VAT)
£789.95
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £658.29 | £0.686 |
*price indicative
- RS Stock No.:
- 685-103
- Mfr. Part No.:
- 15-80-0081
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 70567 | |
| Product Type | PCB Header Pin | |
| Pitch | 2.54mm | |
| Current | 2.5A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 8 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Brass, Phosphor Bronze | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -55°C | |
| Tail Pin Length | 3.3mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 70567 | ||
Product Type PCB Header Pin | ||
Pitch 2.54mm | ||
Current 2.5A | ||
Housing Material Thermoplastic | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Brass, Phosphor Bronze | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -55°C | ||
Tail Pin Length 3.3mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Voltage 250V | ||
- COO (Country of Origin):
- MY
The Molex C-Grid PCB Header is an advanced interconnection solution, designed to facilitate reliable signal and wire-to-board connectivity in various applications. Featuring a compact 2.54mm pitch configuration, this dual-row header optimally supports high-temperature environments while ensuring robust performance. Crafted for through-hole installation, the C-Grid connector is ideal for applications requiring dependable connectivity in circuit designs, allowing for easy integration in PCB layouts, particularly in tight spaces where reliability is paramount.
Features a shrouded design that offers protection against accidental disconnections
Includes PCB retention for secure mounting on printed circuit boards
Utilizes lead-free solder processes, conforming to environmental compliance standards
Polarized design ensures proper alignment during connection, preventing installation errors
