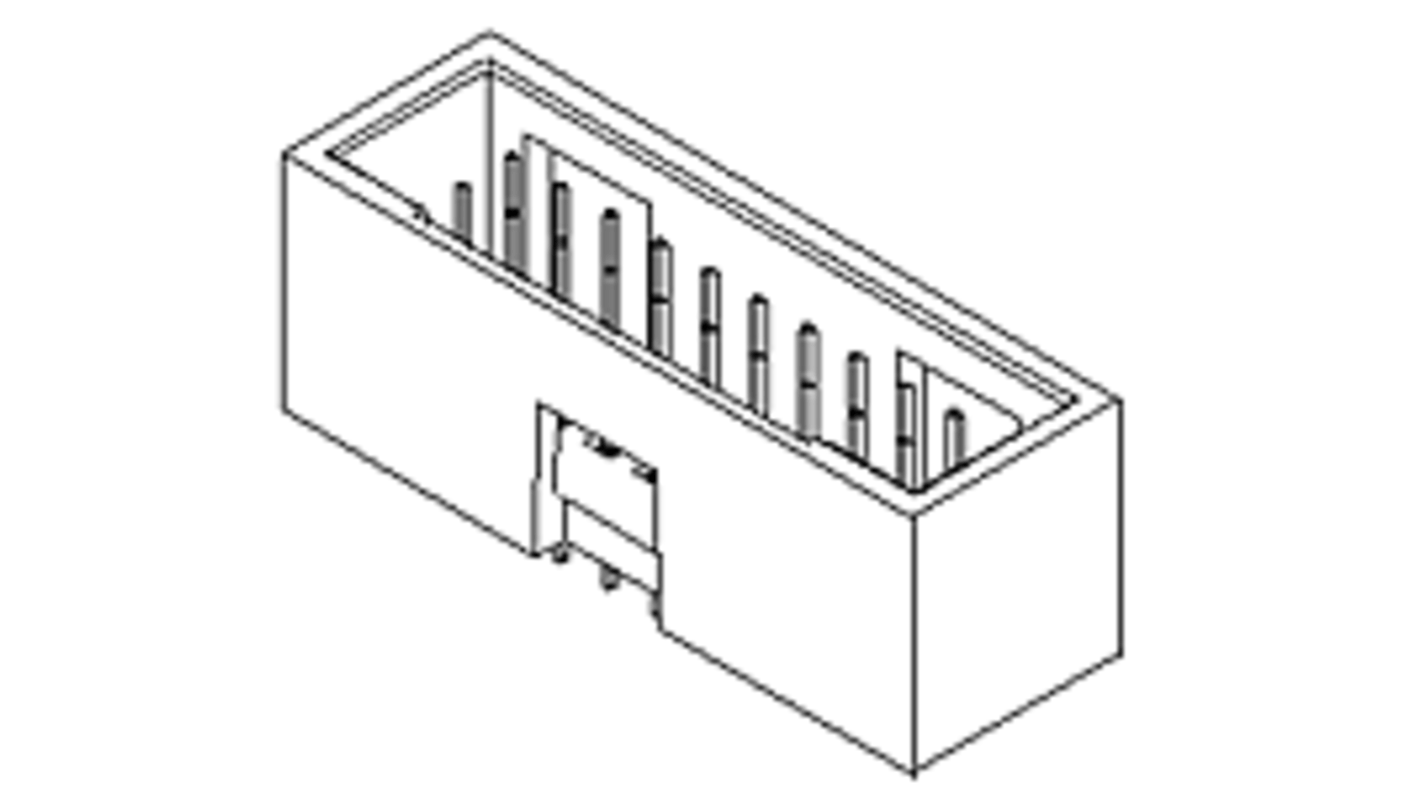

Molex 70567 Series Vertical PCB PCB Header, 22 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 684-228
- Mfr. Part No.:
- 15-80-0221
- Brand:
- Molex
Subtotal (1 tube of 85 units)*
£236.14
(exc. VAT)
£283.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £236.14 | £2.778 |
*price indicative
- RS Stock No.:
- 684-228
- Mfr. Part No.:
- 15-80-0221
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 70567 | |
| Product Type | PCB Header | |
| Current | 2.5A | |
| Pitch | 2.54mm | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 22 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Material | Brass, Phosphor Bronze | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Tail Pin Length | 3.3mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 70567 | ||
Product Type PCB Header | ||
Current 2.5A | ||
Pitch 2.54mm | ||
Housing Material Thermoplastic | ||
Number of Contacts 22 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Material Brass, Phosphor Bronze | ||
Contact Plating Tin | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Tail Pin Length 3.3mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- MY
The Molex C-Grid header is a highly reliable PCB connector designed specifically for wire-to-board applications. Featuring a compact 2.54mm pitch size, this dual-row header accommodates up to 22 circuits. Its high-temperature thermoplastic construction ensures durability in demanding environments, while the brass and phosphor bronze metal materials contribute to superior electrical performance. The shrouded design enhances mating security, making it ideal for various electronic assemblies, from consumer electronics to industrial devices. This product's active status guarantees ongoing support and availability, assuring users they are investing in a proven solution for robust connectivity.
Benefits from a current rating of 2.5A and a maximum voltage of 250V for reliable electrical performance
Compatible with both through hole and surface mount connectors, offering installation versatility
Lightweight design at only 3.806g facilitates ease of handling and assembly
Ensures structural stability with locked mating features to prevent accidental disconnection
