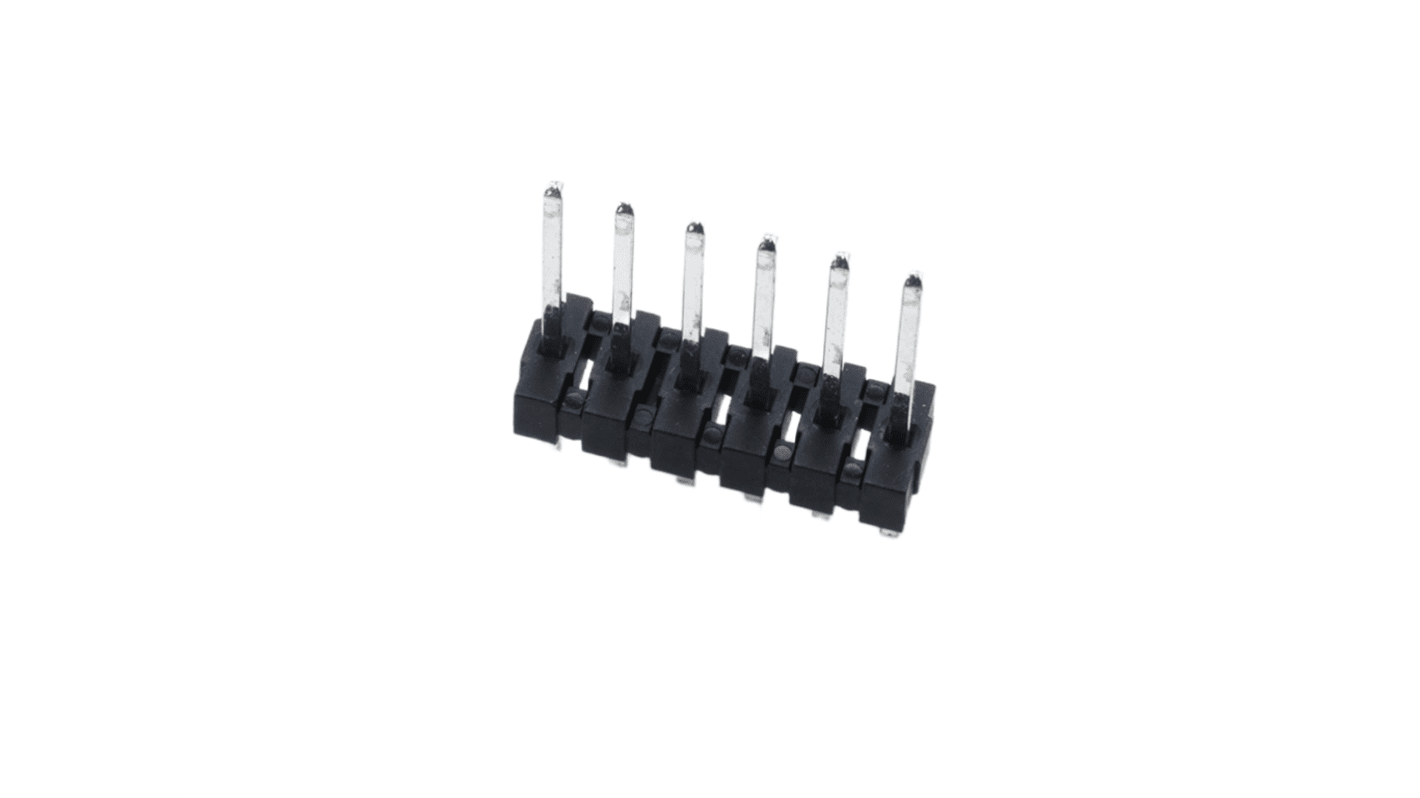

Molex 41661 Series Vertical Through Hole PCB Header, 6 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 684-708
- Mfr. Part No.:
- 26-48-1061
- Brand:
- Molex
Subtotal (1 bag of 400 units)*
£187.78
(exc. VAT)
£225.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £187.78 | £0.469 |
*price indicative
- RS Stock No.:
- 684-708
- Mfr. Part No.:
- 26-48-1061
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 41661 | |
| Product Type | PCB Header | |
| Current | 7A | |
| Pitch | 3.96mm | |
| Number of Contacts | 6 | |
| Housing Material | Polyester | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Row Pitch | 3.96mm | |
| Termination Type | Solder | |
| Tail Pin Length | 4.37mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 41661 | ||
Product Type PCB Header | ||
Current 7A | ||
Pitch 3.96mm | ||
Number of Contacts 6 | ||
Housing Material Polyester | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Row Pitch 3.96mm | ||
Termination Type Solder | ||
Tail Pin Length 4.37mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- IN
The Molex KK 396 Breakaway Header is a versatile and reliable connector designed for board-to-board and wire-to-board applications. Featuring six circuits in a vertical orientation, it provides exceptional performance with a maximum current rating of 7.0A and a voltage rating of 250V. This header is constructed with high-quality materials including brass and matte tin plating, ensuring durability and effectiveness in various electronic configurations. Ideal for industries requiring high standards of safety and compliance, this component meets EU RoHS directives and boasts a flammability rating of 94V0, making it suitable for a wide range of electronic devices and applications.
Designed for PCB headers and receptacles, ensuring compatibility with various electronic systems
Breakaway functionality allows for easy disconnection without damage, enhancing system reliability
Vertical orientation optimises space in compact applications, making it ideal for diverse designs
Durability is guaranteed with a mating cycle endurance of up to 25 cycles, ensuring longevity
Compliant with EU RoHS, underscoring a commitment to environmental safety and standards
Matte tin plating prevents corrosion, contributing to the longevity and functionality of connections
Compatible with a range of housings and tools, simplifying integration into existing systems
