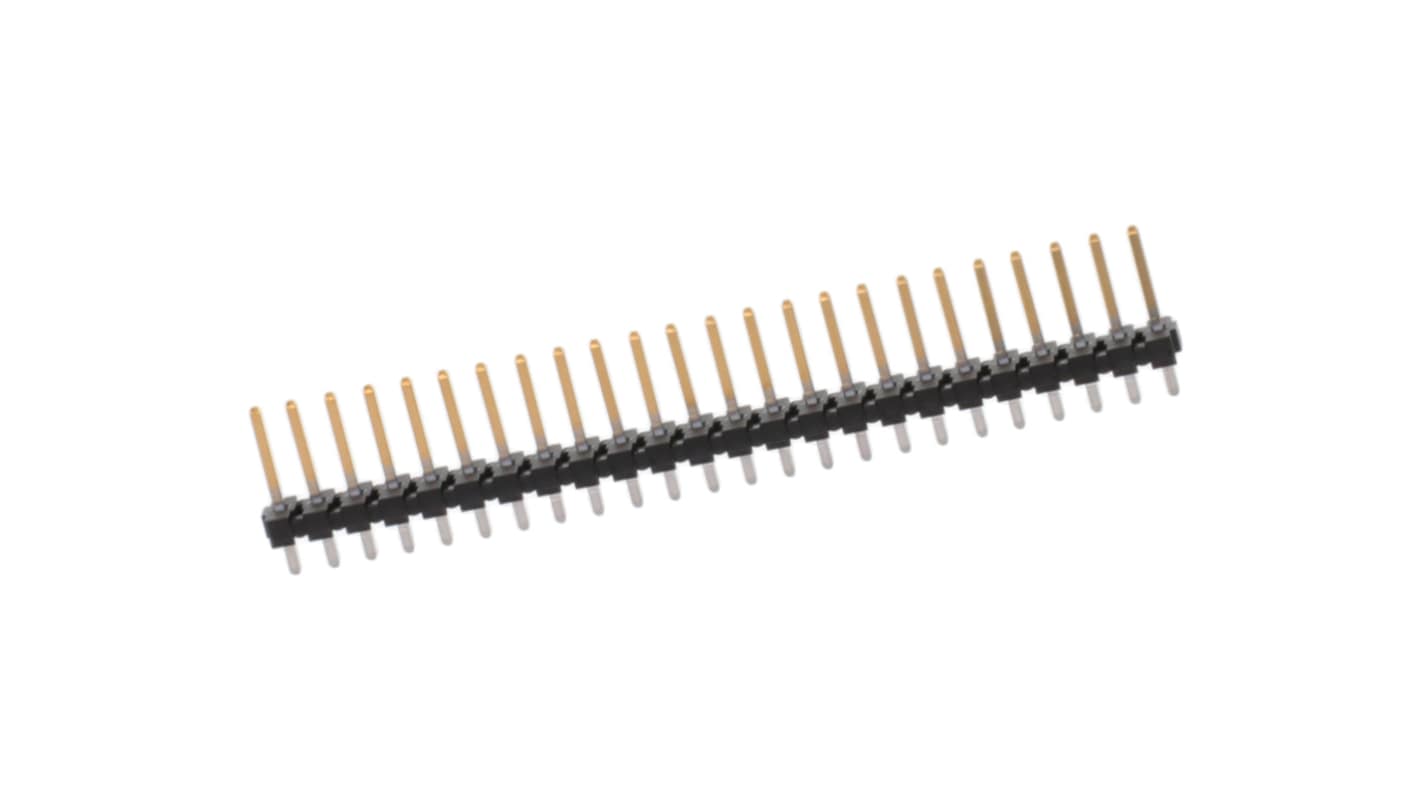

Molex 41661 Series Vertical Through Hole PCB Header, 24 Contact(s), 3.96 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 683-949
- Mfr. Part No.:
- 26-48-2241
- Brand:
- Molex
Subtotal (1 bag of 1200 units)*
£5,380.20
(exc. VAT)
£6,456.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £5,380.20 | £4.484 |
*price indicative
- RS Stock No.:
- 683-949
- Mfr. Part No.:
- 26-48-2241
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 41661 | |
| Product Type | PCB Header | |
| Current | 7A | |
| Pitch | 3.96mm | |
| Housing Material | Polyester | |
| Number of Contacts | 24 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Row Pitch | 3.96mm | |
| Termination Type | Solder | |
| Tail Pin Length | 5.38mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 41661 | ||
Product Type PCB Header | ||
Current 7A | ||
Pitch 3.96mm | ||
Housing Material Polyester | ||
Number of Contacts 24 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Row Pitch 3.96mm | ||
Termination Type Solder | ||
Tail Pin Length 5.38mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- IN
The Molex KK 396 Breakaway Header designed for seamless interconnection in diverse applications, including board-to-board and wire-to-board connections. Featuring 24 circuits and a pin length of 19.05mm, this vertical header provides exceptional connectivity with a 0.50μm gold selective plating for enhanced durability. The header is engineered for optimal performance and reliability in signal transmission, offering a compact solution for modern PCB designs. Its status as an active component in the PCB Headers and Receptacles category underlines its relevance in various electronic assemblies, ensuring efficient and reliable functionality in demanding electronic environments.
Maximum voltage of 250V for safe operation in high demand applications
Black resin colour provides aesthetic alignment in diverse electronic designs
Durability rated at 25 mating cycles for longevity and dependable use
Breakaway feature promotes ease of installation and maintenance in setups
Through hole termination interface style facilitates secure mounting
Stackable design allows for flexible configuration within limited spaces
