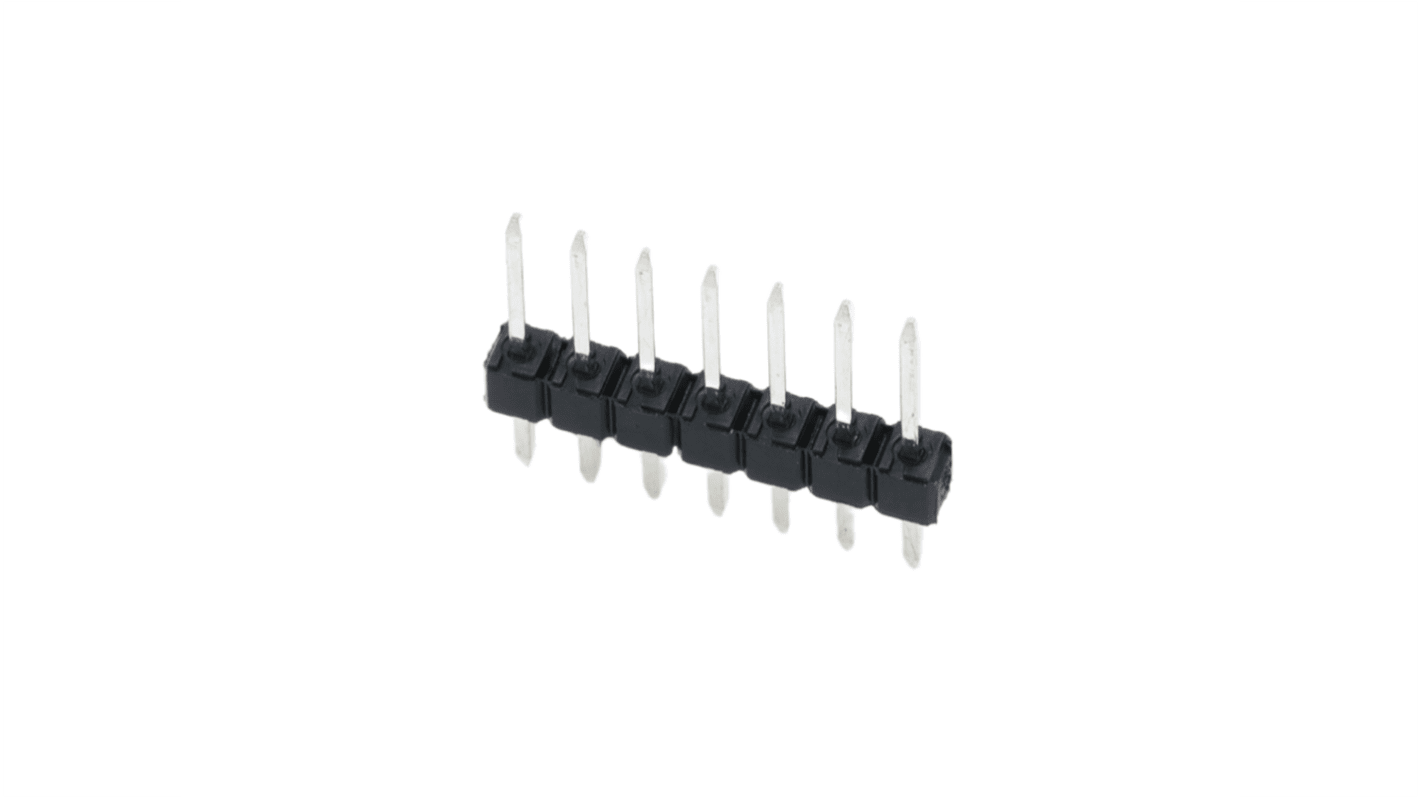

Molex 42375 Series Vertical Through Hole PCB Header, 7 Contact(s), 2.54 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 684-680
- Mfr. Part No.:
- 22-28-4070
- Brand:
- Molex
Subtotal (1 bag of 1000 units)*
£195.16
(exc. VAT)
£234.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £195.16 | £0.195 |
*price indicative
- RS Stock No.:
- 684-680
- Mfr. Part No.:
- 22-28-4070
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 42375 | |
| Current | 4A | |
| Pitch | 2.54mm | |
| Housing Material | Nylon | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Tail Pin Length | 3.05mm | |
| Standards/Approvals | RoHS | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 42375 | ||
Current 4A | ||
Pitch 2.54mm | ||
Housing Material Nylon | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Tail Pin Length 3.05mm | ||
Standards/Approvals RoHS | ||
Voltage 500 V | ||
- COO (Country of Origin):
- IN
The Molex KK 254 Breakaway Header designed for efficient board-to-board and wire-to-board applications, featuring a robust vertical orientation and seven circuits for superior connectivity. Built with high-temperature thermoplastic resin and a reliable tin plating, this durable component is capable of handling up to 4.0A electrical current and supports a maximum voltage of 500V. Its thoughtful design includes a 2.54mm pitch mating interface, ensuring easy and secure assembly with compatible connectors. The part’s active status and compliance with various industry standards highlight its suitability for diverse engineering environments, making it an essential choice for professionals seeking dependable electrical connections in their projects.
Vertical orientation enhances space optimisation in applications
Durable construction ensures long lasting performance, even in rigorous settings
Constructed from high temperature thermoplastic for improved resilience
Active status indicates readiness for immediate integration into projects
Meets multiple compliance requirements, assuring adherence to industry standards
Designed for seamless compatibility with a variety of connectors and terminations
