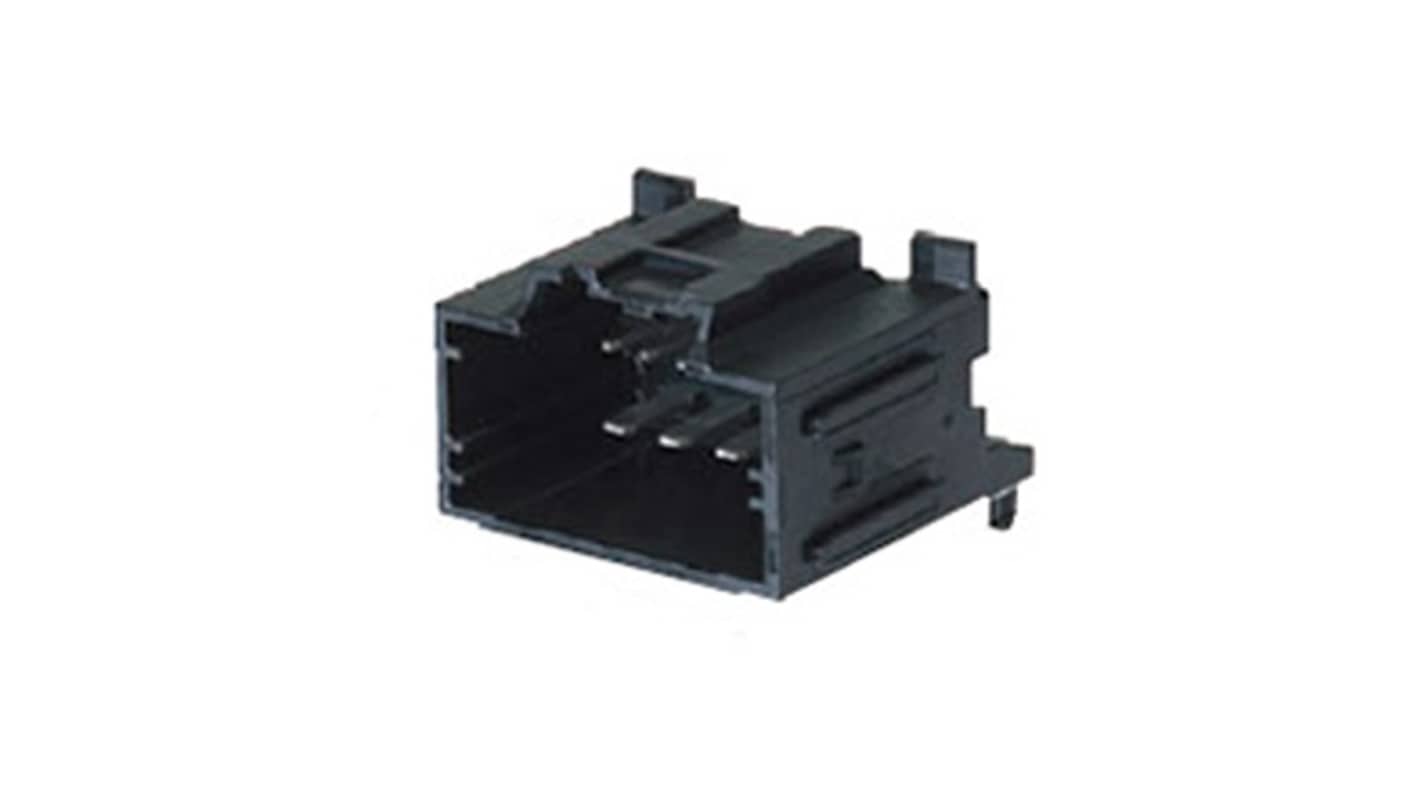

Molex 34696 Series Right Angle PCB Mount PCB Header, 10 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 684-218
- Mfr. Part No.:
- 34696-0100
- Brand:
- Molex
Subtotal (1 tray of 120 units)*
£229.98
(exc. VAT)
£275.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £229.98 | £1.917 |
*price indicative
- RS Stock No.:
- 684-218
- Mfr. Part No.:
- 34696-0100
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 34696 | |
| Pitch | 2.54mm | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Body Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | PCB Mount | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 34696 | ||
Pitch 2.54mm | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type PCB Mount | ||
- COO (Country of Origin):
- CN
The Molex Stac64 Single Bay Right-Angle Power Header designed for reliable and efficient connections in automotive and power applications. With 10 circuits and a robust design, this PCB header ensures secure mating and excellent electrical performance. Its high-temperature thermoplastic structure combined with a black resin finish provides durability, making it ideal for demanding environments. The product's unique polarization feature allows for easy alignment and prevents accidental disconnections, while its ability to withstand a temperature range from -40° to +100°C makes it suited for various operating conditions. The header's through-hole termination style and compatibility with industry-standard receptacles ensure seamless integration into existing systems, delivering trustworthy functionality in every connection.
Constructed from high-temperature thermoplastic for durability and reliability
Capable of handling a maximum voltage of 500V and current ratings up to 30.0A
Right-angle orientation facilitates easy circuit board layout designs
Tray packaging type ensures safe handling and delivery
Locks securely to mating parts which enhancing connection integrity
Low-Halogen and compliant with multiple regulatory standards for safety
Recommended PCB thickness of 1.57mm supports standard mounting practices
