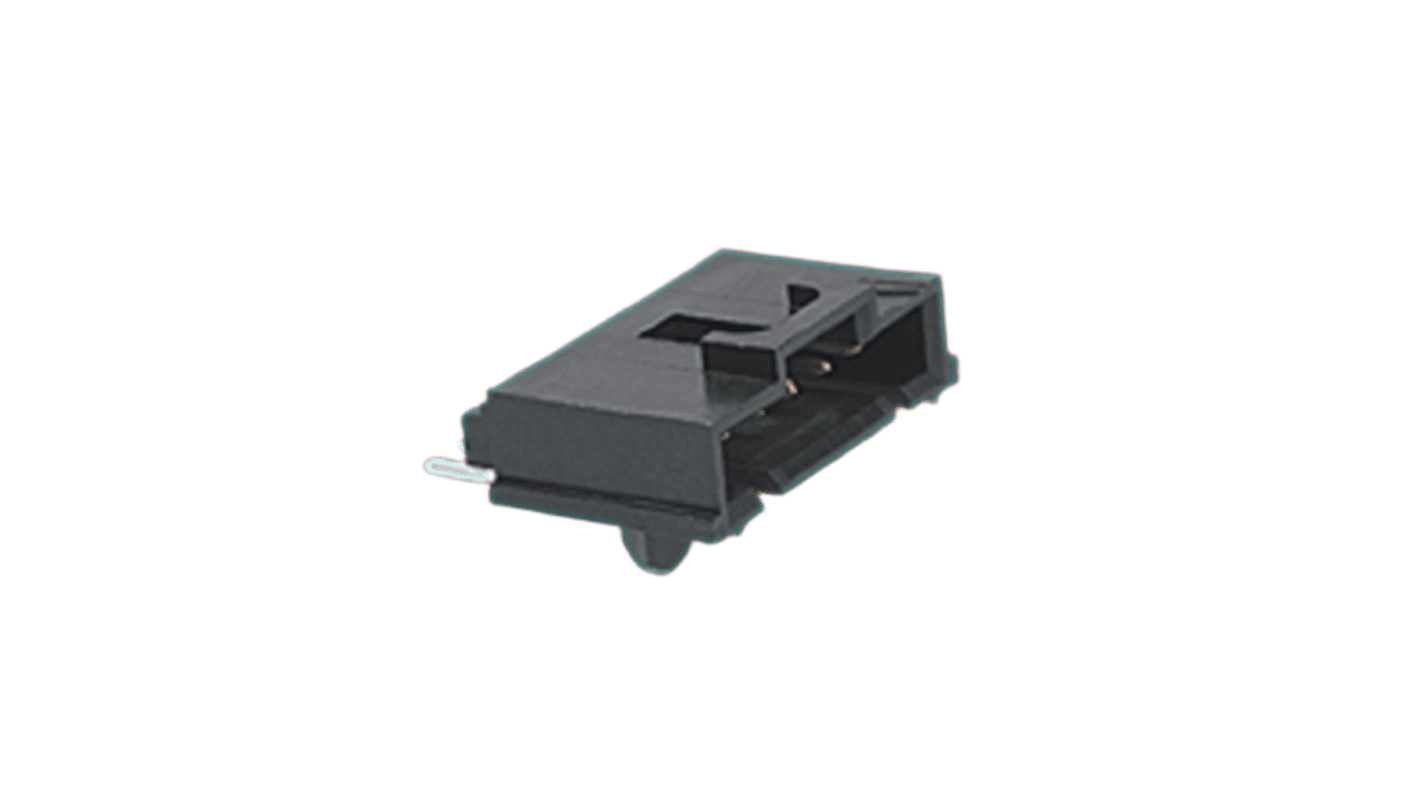

Molex 70634 Series Right Angle PCB PCB Header, 10 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 684-898
- Mfr. Part No.:
- 15-91-6109
- Brand:
- Molex
Subtotal (1 reel of 250 units)*
£1,432.97
(exc. VAT)
£1,719.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,432.97 | £5.732 |
*price indicative
- RS Stock No.:
- 684-898
- Mfr. Part No.:
- 15-91-6109
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 70634 | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Number of Contacts | 10 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 70634 | ||
Current 3A | ||
Pitch 2.54mm | ||
Number of Contacts 10 | ||
Housing Material Thermoplastic | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- MY
The Molex SL Wire-to-Board Header is expertly engineered to facilitate seamless electronic connections in compact spaces. Designed with a 2.54mm pitch and a low-profile configuration, this right-angle header excels in applications demanding reliable signal integrity. Its robust structure, featuring 10 circuits and tin plating, ensures optimal performance while maintaining durability. Ideal for surface-mount technology, this product is crafted to meet the needs of modern PCB designs. With a temperature range that supports operations from -40°C to +105°C, it is suitable for various environmental conditions, making it a versatile choice for diverse applications in the electronics realm.
Fully shrouded design provides added protection from mechanical damage
Compatible with various crimp housings and insulation displacement connectors
UL and CSA certified for high safety and performance standards
Embossed tape packaging simplifies storage and handling during assembly
