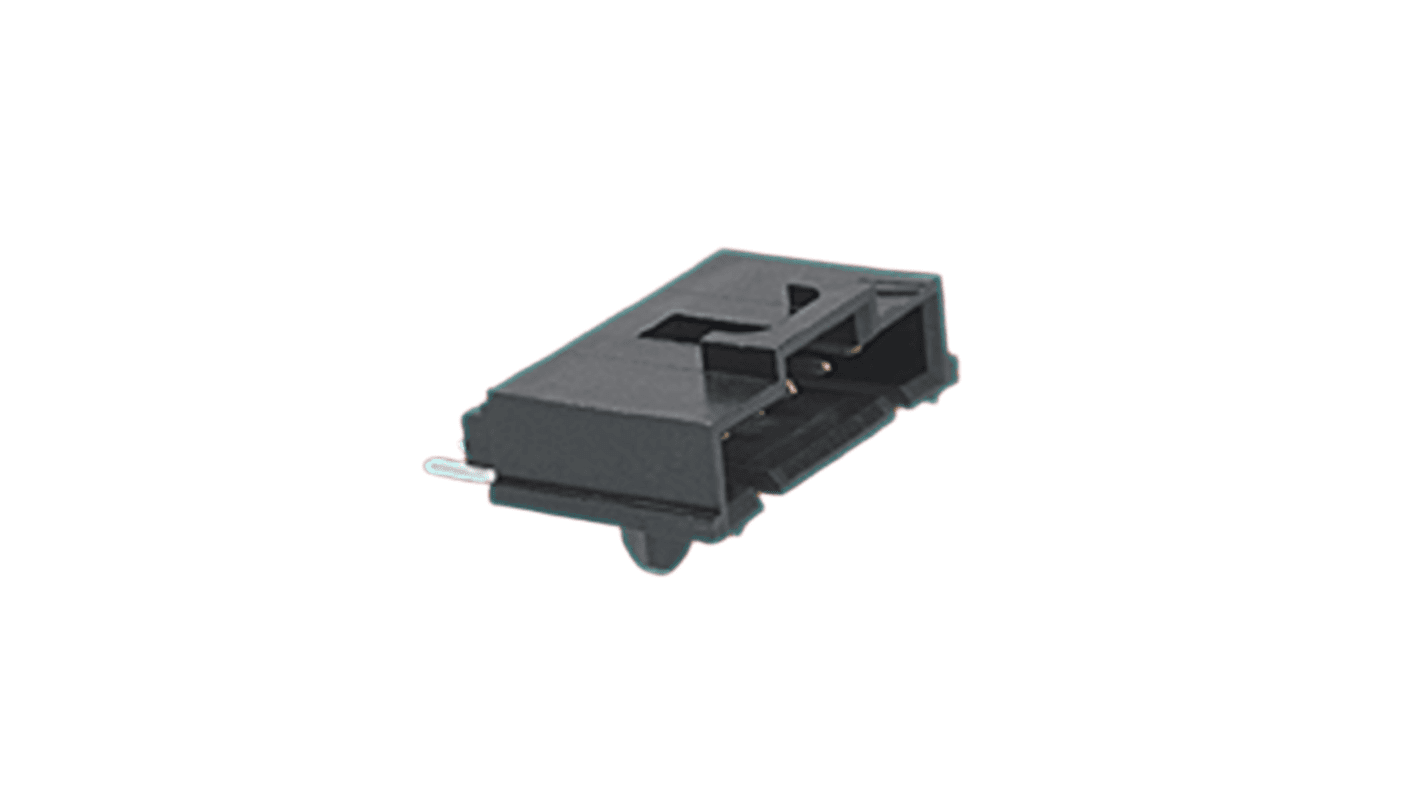

Molex 70634 Series Right Angle PCB PCB Header, 12 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 684-494
- Mfr. Part No.:
- 15-91-2125
- Brand:
- Molex
Subtotal (1 tube of 45 units)*
£238.94
(exc. VAT)
£286.73
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £238.94 | £5.31 |
*price indicative
- RS Stock No.:
- 684-494
- Mfr. Part No.:
- 15-91-2125
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 70634 | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 12 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 70634 | ||
Current 3A | ||
Pitch 2.54mm | ||
Housing Material Thermoplastic | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- MY
The Molex SL Wire-to-Board Header is engineered for reliable electrical connections in compact applications. This low-profile component boasts a 2.54mm pitch and designed for surface mounting, making it ideal for situations where space is at a premium. With its shrouded design and robust construction, it accommodates up to 12 circuits, ensuring secure connections with minimal risk of misalignment. The incorporation of high-quality materials, including brass and high-temperature thermoplastic, ensures that this header is durable and effective across various operating conditions, from -40°C to +105°C. Its user-friendly design, featuring a right-angle orientation and compatibility with multiple crimp housings and insulation displacement connectors, facilitates seamless integration into existing systems.
Polarization ensures correct mating to avoid connection errors
Suitable for a wide range of applications, including signal and wire-to-board connections
Compatible with various crimp housings and insulation displacement connector assemblies, providing flexibility in design
Meets rigorous industry compliance standards, ensuring quality and safety
