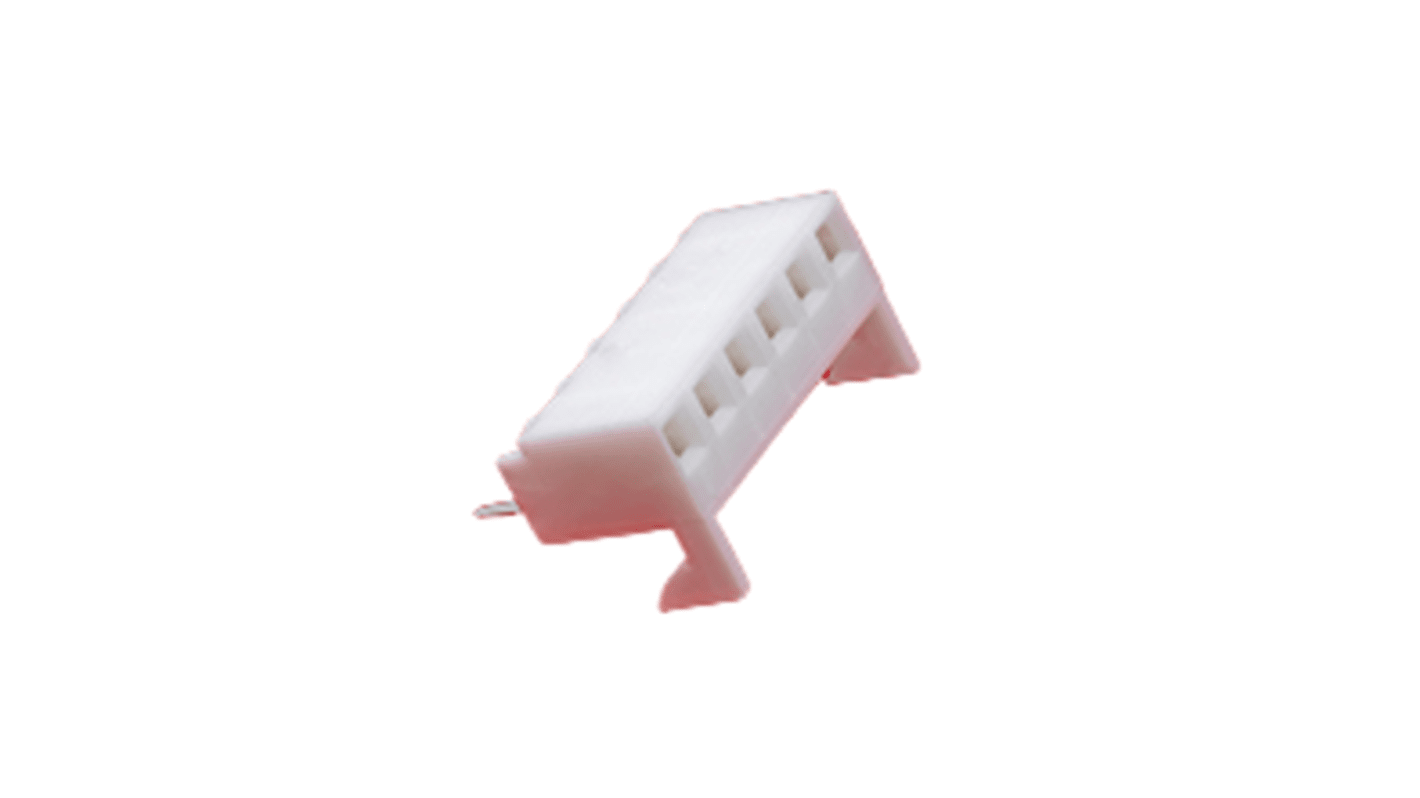

Molex 4455 Series Vertical PCB PCB Header, 5 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 683-726
- Mfr. Part No.:
- 22-02-7053
- Brand:
- Molex
Subtotal (1 tray of 400 units)*
£187.78
(exc. VAT)
£225.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £187.78 | £0.469 |
*price indicative
- RS Stock No.:
- 683-726
- Mfr. Part No.:
- 22-02-7053
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 4455 | |
| Product Type | PCB Header | |
| Current | 2.5A | |
| Pitch | 2.54mm | |
| Housing Material | Nylon | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Tail Pin Length | 3.35mm | |
| Standards/Approvals | RoHS | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 4455 | ||
Product Type PCB Header | ||
Current 2.5A | ||
Pitch 2.54mm | ||
Housing Material Nylon | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Tail Pin Length 3.35mm | ||
Standards/Approvals RoHS | ||
Voltage 500 V | ||
- COO (Country of Origin):
- MY
The Molex KK 254 PC Board Connector is an expertly designed solution for reliable board-to-board connectivity. Tailored with a top-entry configuration, this connector incorporates Cat Ear terminals and is ideal for applications requiring a secure and efficient connection. With a robust construction featuring a natural (white) nylon resin and brass metal components, the connector ensures durability and performance under various operating conditions. Compliant with key industry regulations such as EU RoHS and GADSL/IMDS, this product prioritises both environmental responsibility and user safety. The KK 254 connector is engineered for ease of use with a vertical orientation and matching mating parts, making it a versatile choice for PCB headers and receptacles.
Active product status ensures up to date availability
Supports up to 5 circuits to accommodate multiple connections
Natural resin finish offers an unobtrusive appearance
94V0 flammability rating for enhanced safety in applications
Vertical orientation assists in efficient space management on PCBs
Constructed with a tin plated brass for excellent conductivity
Lead free wave solder process capability ensures compatibility with modern assembly methods
Supplied in tray packaging for convenient handling and storage
Compatible with various headers, providing flexibility in design configurations
