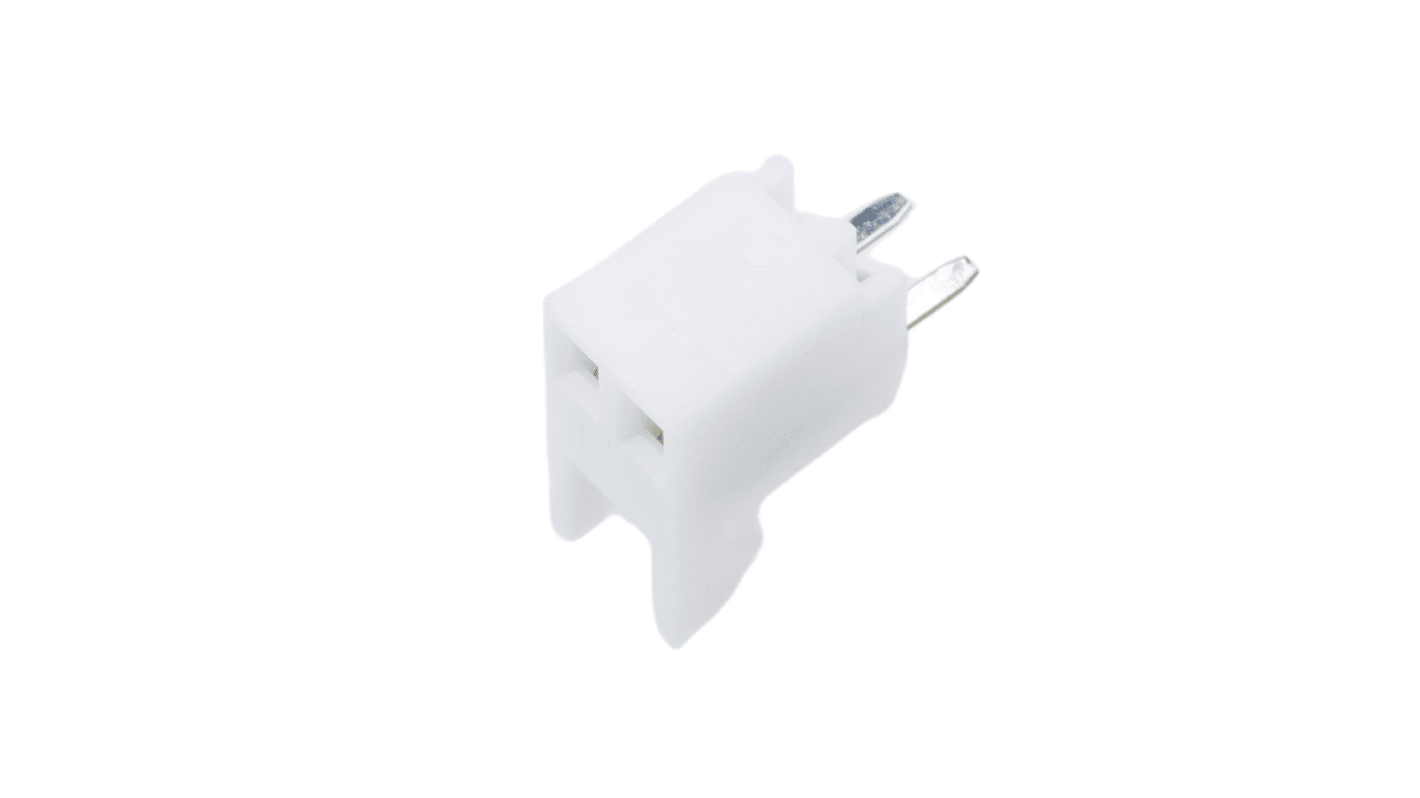

Molex 4455 Series Vertical PCB PCB Header, 2 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 683-725
- Mfr. Part No.:
- 22-02-2025
- Brand:
- Molex
Subtotal (1 tray of 1000 units)*
£200.45
(exc. VAT)
£240.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £200.45 | £0.20 |
*price indicative
- RS Stock No.:
- 683-725
- Mfr. Part No.:
- 22-02-2025
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 4455 | |
| Product Type | PCB Header | |
| Current | 2.5A | |
| Pitch | 2.54mm | |
| Housing Material | Nylon | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Tail Pin Length | 3.35mm | |
| Standards/Approvals | RoHS | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 4455 | ||
Product Type PCB Header | ||
Current 2.5A | ||
Pitch 2.54mm | ||
Housing Material Nylon | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Tail Pin Length 3.35mm | ||
Standards/Approvals RoHS | ||
Voltage 500 V | ||
- COO (Country of Origin):
- MY
The Molex KK 254 PC Board Connector is expertly designed for board-to-board signal applications, ensuring reliable connections in a compact space. Featuring a top entry configuration and a robust construction, this connector accommodates two circuits and boasts a secure mating interface through its precision-engineered components. Constructed from high-quality materials, including a nylon resin body and brass metal contacts plated with tin, it ensures exceptional conductivity and longevity. With a recommended PCB thickness of 1.60 mm, it meets stringent industry standards for performance and compliance, particularly in applications requiring low-halogen components. This versatile connector is ideal for various electronic applications, delivering both safety and efficiency in your designs.
Manufactured with a natural nylon resin for enhanced durability and performance
Designed for excellent electrical conductivity with brass contacts and tin plating
Vertical orientation allows for efficient space utilisation on PCBs
Max voltage rating of 500V ensures safety in high voltage applications
Low halogen compliant, supporting eco friendly initiatives in electronic assembly
Easy installation and secure mating with through hole termination style
