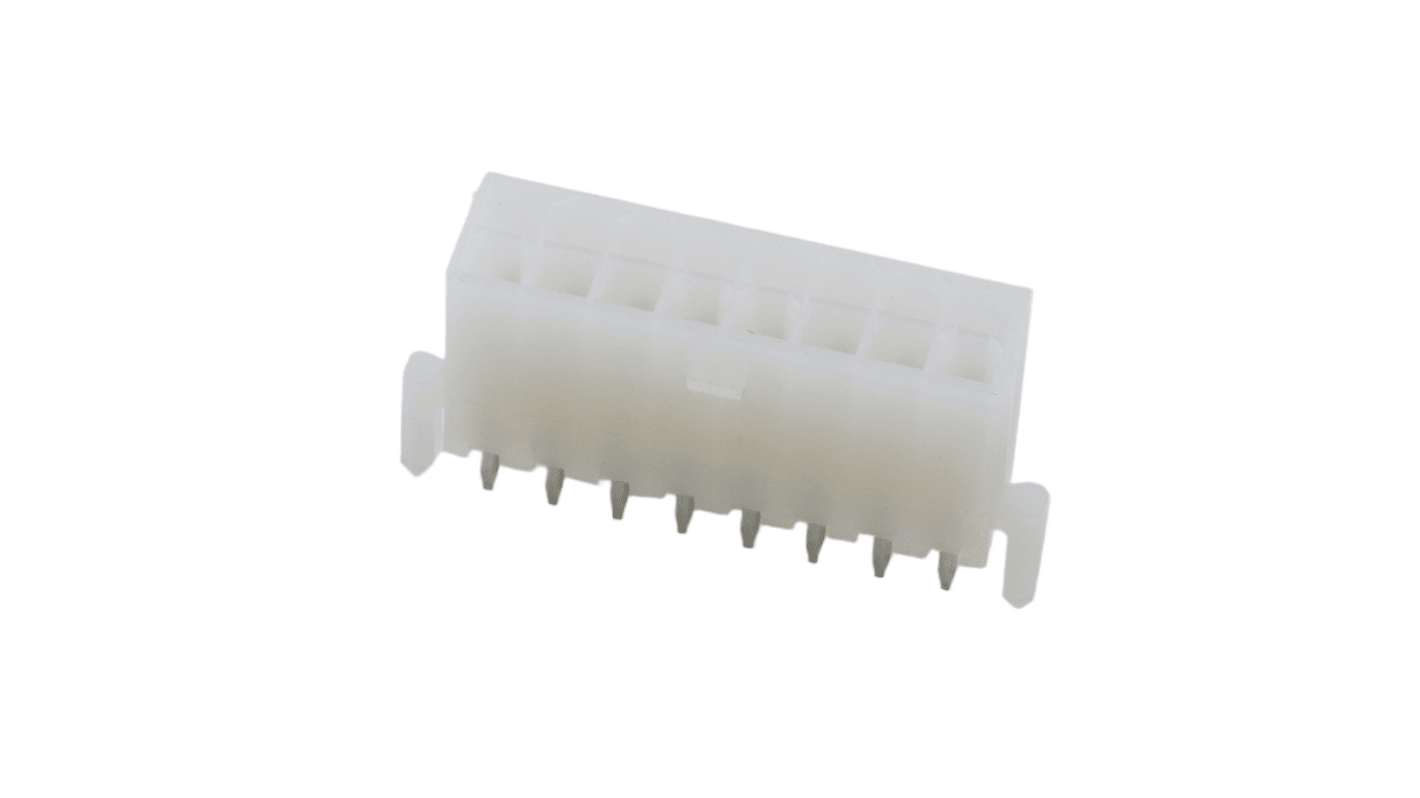

Molex 5566 Series Vertical PCB PCB Header, 16 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 683-702
- Mfr. Part No.:
- 39-29-9165
- Brand:
- Molex
Subtotal (1 tray of 60 units)*
£207.83
(exc. VAT)
£249.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £207.83 | £3.464 |
*price indicative
- RS Stock No.:
- 683-702
- Mfr. Part No.:
- 39-29-9165
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 5566 | |
| Pitch | 4.2mm | |
| Current | 9A | |
| Number of Contacts | 16 | |
| Housing Material | Nylon | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 4.2mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.5mm | |
| Standards/Approvals | RoHS | |
| Voltage | 600 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 5566 | ||
Pitch 4.2mm | ||
Current 9A | ||
Number of Contacts 16 | ||
Housing Material Nylon | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 4.2mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.5mm | ||
Standards/Approvals RoHS | ||
Voltage 600 V | ||
- COO (Country of Origin):
- MX
The Molex Mini-Fit Jr. Vertical Header is engineered for exceptional power delivery in wire to board connections. Designed with a robust snap-in plastic peg PCB lock this 16-circuit component ensures secure mating and reliable electrical performance. Its vertical orientation and 4.20mm pitch make it ideal for efficient space utilisation in compact PCB layouts. With an impressive current capacity of up to 9.0A per contact and a voltage rating of 600V this header adeptly meets the demands of various applications especially in power distribution. Crafted from high-quality materials including brass and nylon and featuring gold plating the Mini-Fit Jr. guarantees durability and uncompromised conductivity. Furthermore it complies with multiple regulatory standards emphasising its safe and eco-friendly design.
Low-halo and eco-compliant materials ensure environmental safety without compromising quality
Easy integration with other components facilitating streamlined assembly processes
Provides excellent durability with a mating cycle rating of 30 which ensuring long-term reliability
Flammability rated 94V-2 for added safety in critical applications
Recommended PCB thickness of 1.60mm optimises performance and stability
Fully shrouded design enhances user safety during installation
