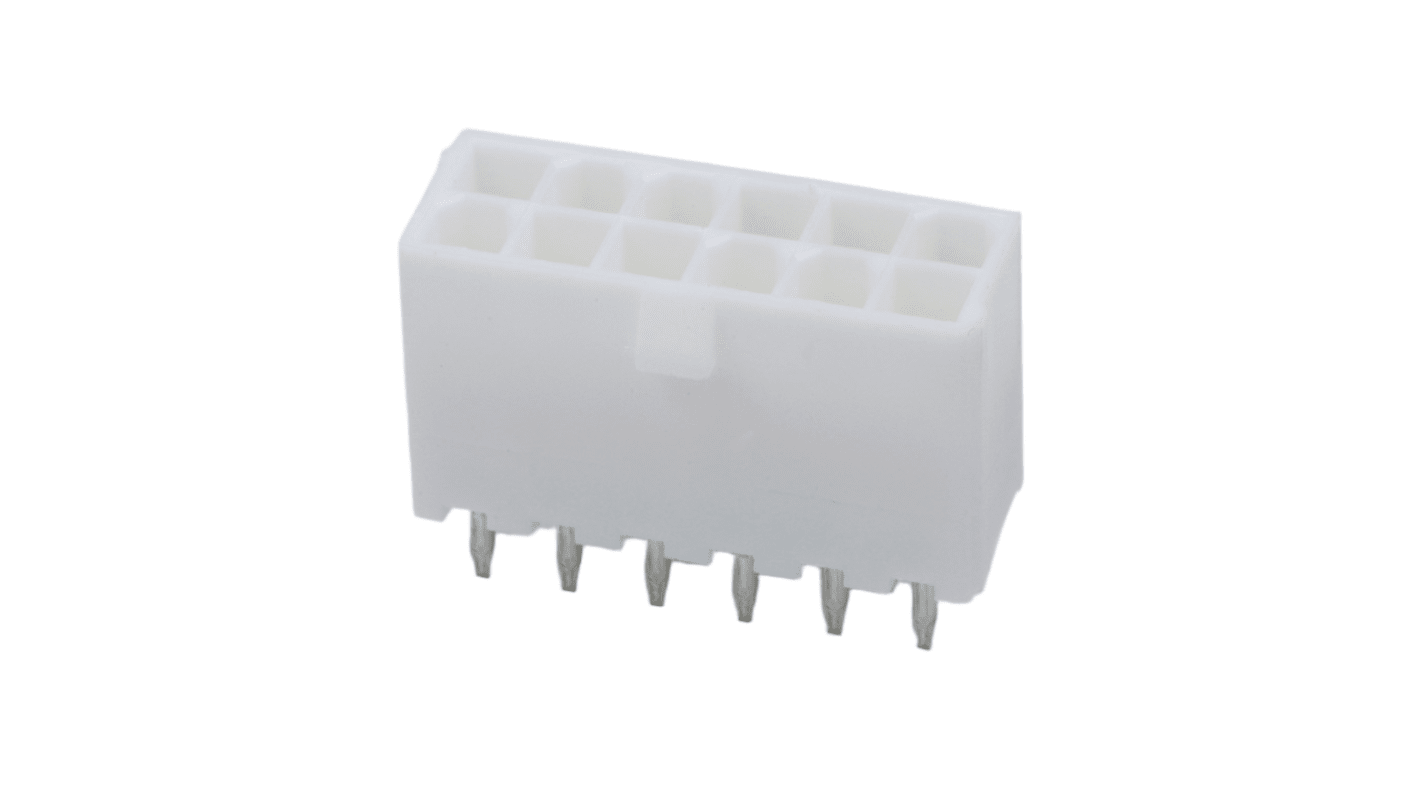

Molex 5566 Series Vertical PCB PCB Header, 12 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 683-697
- Mfr. Part No.:
- 39-29-6128
- Brand:
- Molex
Subtotal (1 bag of 25 units)*
£246.16
(exc. VAT)
£295.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £246.16 | £9.846 |
*price indicative
- RS Stock No.:
- 683-697
- Mfr. Part No.:
- 39-29-6128
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 5566 | |
| Current | 9A | |
| Pitch | 4.2mm | |
| Housing Material | Nylon | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 4.2mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.5mm | |
| Standards/Approvals | RoHS | |
| Voltage | 600 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 5566 | ||
Current 9A | ||
Pitch 4.2mm | ||
Housing Material Nylon | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 4.2mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.5mm | ||
Standards/Approvals RoHS | ||
Voltage 600 V | ||
- COO (Country of Origin):
- MX
The Molex Mini-Fit Jr. Vertical Header is engineered to deliver reliable connectivity in compact applications. Designed for power and wire to board connections this product accommodates up to 12 circuits with a 4.20mm pitch ensuring space-efficient yet effective integration. With its dual-row configuration and robust contact materials this header maximises durability and performance. Perfectly suited for applications requiring maximum current of 9.0A per contact and a voltage rating of 600V it stands out in terms of both functionality and compliance with industry standards. The design incorporates key features like a fully shrouded structure and lock to mating part functionality offering enhanced mating security while meeting the rigorous demands of modern electrical systems.
No snap-in locking mechanism ensures easy installation and removal when required
Meets low-halogen standards supporting eco-friendly initiatives for safer electronics
Compatibility with standard Mini-Fit female terminals making integration seamless
Durability up to 30 mating cycles which ensuring long-lasting reliability
Plastic resin construction for additional strength and resilience in demanding applications
