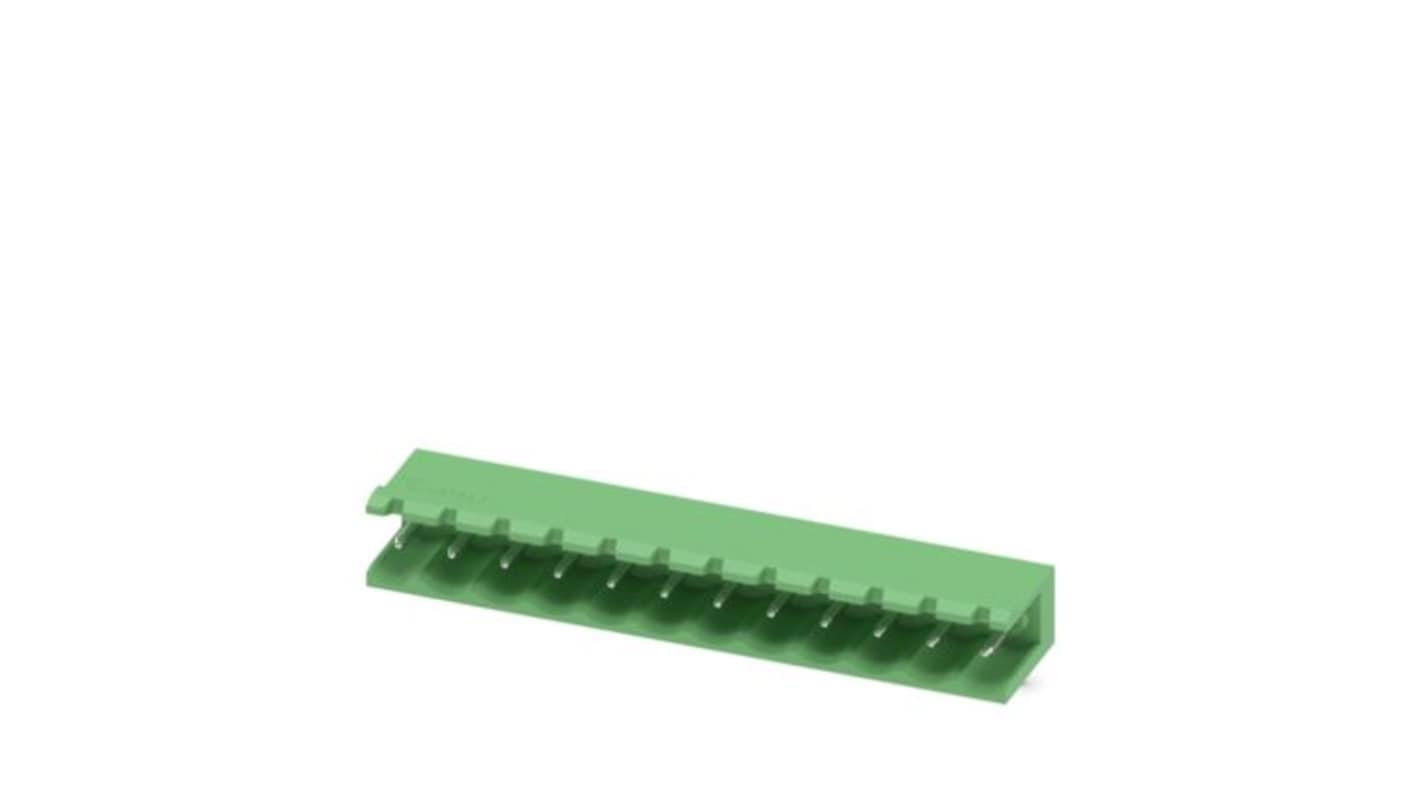

Phoenix Contact MSTB 2/5-G Series Solder PCB Header, 12 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 638-746
- Mfr. Part No.:
- 1754630
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£227.13
(exc. VAT)
£272.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £227.13 | £4.543 |
*price indicative
- RS Stock No.:
- 638-746
- Mfr. Part No.:
- 1754630
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | MSTB 2/5-G | |
| Product Type | PCB Header | |
| Pitch | 5mm | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Number of Contacts | 12 | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Solder | |
| Connector System | COMBICON MSTB 2.5 | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Row Pitch | 5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.23mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Mating Pin Length | 3.23mm | |
| Standards/Approvals | CSA, cULus Recognised, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512, IEC 61984, ISO 6988, JEDEC JESD 201, UL 94 V0, VDE | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series MSTB 2/5-G | ||
Product Type PCB Header | ||
Pitch 5mm | ||
Current 12A | ||
Housing Material Polyamide | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Solder | ||
Connector System COMBICON MSTB 2.5 | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Row Pitch 5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.23mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Mating Pin Length 3.23mm | ||
Standards/Approvals CSA, cULus Recognised, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512, IEC 61984, ISO 6988, JEDEC JESD 201, UL 94 V0, VDE | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Header is designed to enhance connectivity solutions in electronic applications. It features a robust construction with a nominal cross-section of 2.5 mm², offering exceptional reliability for various devices. Engineered for wave soldering, this header provides streamlined assembly while ensuring efficient space utilisation on PCBs. The product's green housing is not only aesthetically pleasing but meets stringent flammability ratings, ensuring safe operation under a broad range of conditions.
Meets stringent WEEE and RoHS compliance for environmentally responsible manufacturing
Lightweight design ensures minimal impact on overall PCB weight
Supports a wide operating temperature range making it suitable for diverse environments
Easy to handle and position during assembly reducing installation time
