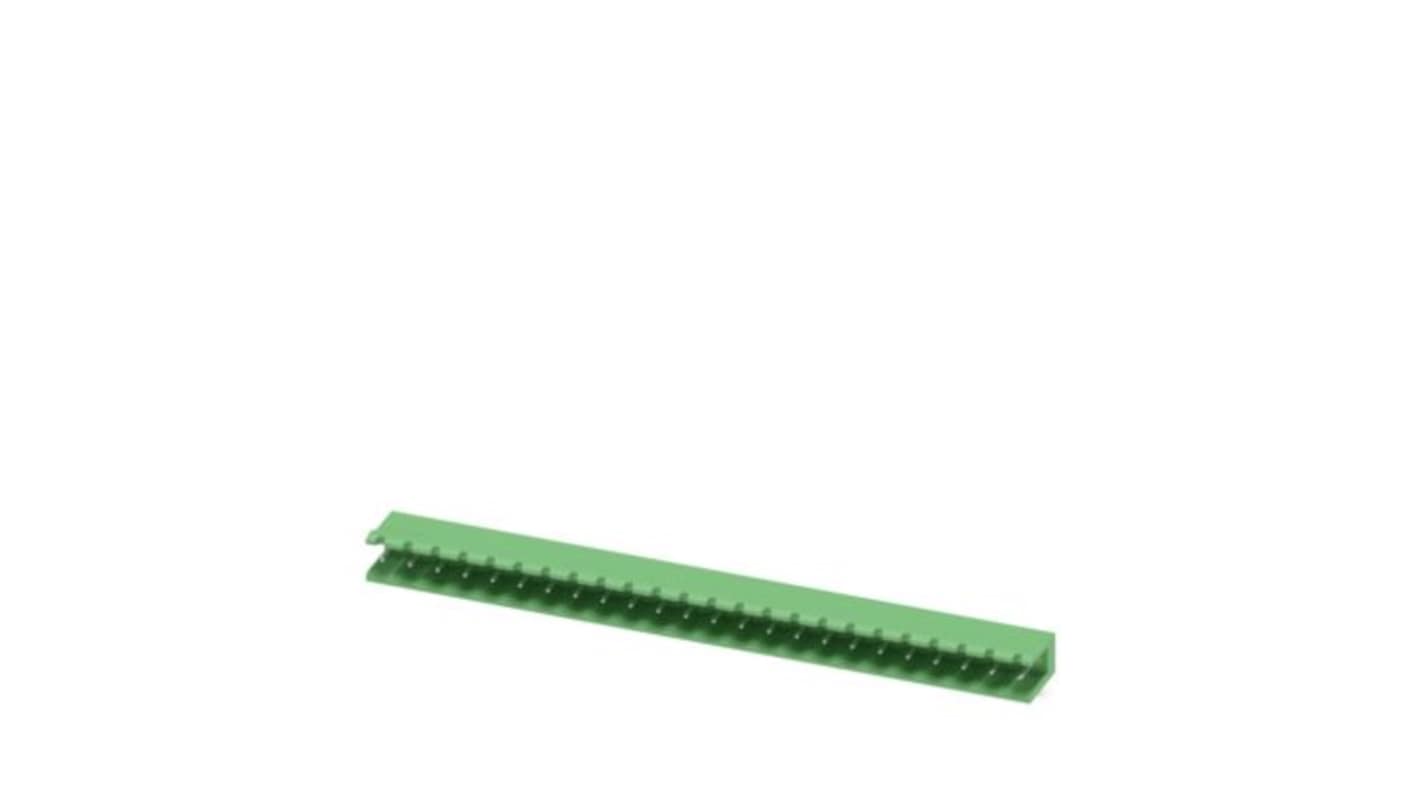

Phoenix Contact MSTB 2/5-G Series Parallel Solder PCB Header, 24 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£451.83

(exc. VAT)

£542.20

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£451.83£9.037

*price indicative

RS Stock No.:
638-545
Mfr. Part No.:
1759237
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

MSTB 2/5-G

Product Type

PCB Header

Pitch

5.08mm

Current

12A

Housing Material

Polybutylene Terephthalate

Number of Contacts

24

Number of Rows

1

Orientation

Parallel

Shrouded/Unshrouded

Shrouded

Mount Type

Solder

Connector System

COMBICON MSTB 2.5

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Minimum Operating Temperature

-40°C

Termination Type

Solder

Row Pitch

5.08mm

Contact Gender

Male

Tail Pin Length

3.23mm

Maximum Operating Temperature

100°C

Standards/Approvals

CSA, cULus, IEC 60068-2-70:1995-12, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, REACH, RoHS, UL 94 V0, VDE

Mating Pin Length

3.23mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB Header is engineered for seamless integration and exceptional performance within various electronic applications. Designed with a nominal cross section of 2.5 mm² and capable of handling nominal currents up to 12 A, this connector ensures a reliable performance in demanding environments. Its robust construction features a green housing, making it not only functional but also visually appealing. With a pin pitch of 5.08 mm and 24 positions, this versatile header provides ample connection options for efficient circuit designs.

Mounting principle is well known facilitating global compatibility

Pin connector pattern supports flexible PCB assembly with minimal space requirements

Compliant with WEEE and RoHS standards ensuring environmentally friendly use
