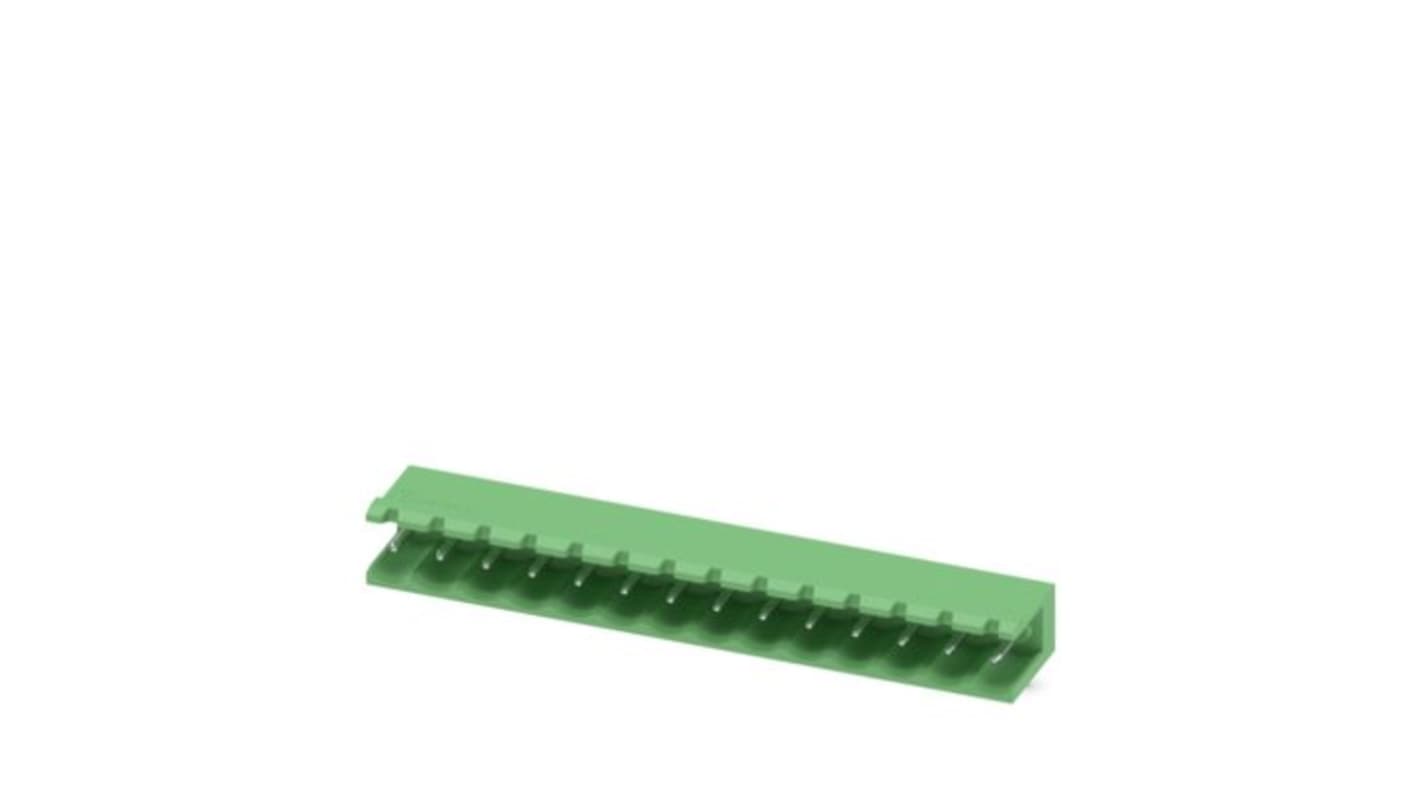

Phoenix Contact MSTB 2/5-G Series Straight Solder PCB Header, 14 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 566-280
- Mfr. Part No.:
- 1754672
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£268.42
(exc. VAT)
£322.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £268.42 | £5.368 |
*price indicative
- RS Stock No.:
- 566-280
- Mfr. Part No.:
- 1754672
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | MSTB 2/5-G | |
| Product Type | PCB Header | |
| Pitch | 5mm | |
| Current | 12A | |
| Number of Contacts | 14 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON MSTB 2.5 | |
| Mount Type | Solder | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 5mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.23mm | |
| Contact Gender | Male | |
| Mating Pin Length | 3.23mm | |
| Standards/Approvals | CSA, cULus, VDE | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series MSTB 2/5-G | ||
Product Type PCB Header | ||
Pitch 5mm | ||
Current 12A | ||
Number of Contacts 14 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON MSTB 2.5 | ||
Mount Type Solder | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 5mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.23mm | ||
Contact Gender Male | ||
Mating Pin Length 3.23mm | ||
Standards/Approvals CSA, cULus, VDE | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Header stands out for its robust design and high-performance capabilities, ideal for various industrial applications. Engineered for reliability, it features a nominal cross-section of 2.5 mm² and a striking green colour, making it easily identifiable in complex setups. With a nominal current of 12 A and a rated voltage of 320 V, this header ensures superior power handling. The innovative COMBICON system allows for straightforward integration with a range of connectors, enhancing system flexibility and ease of use. Its wave soldering mounting method provides dependable connections, while the linear pin layout simplifies the installation process.
Complies with international standards for electrical safety and reliability
Offers packed cardboard packaging for efficient storage and handling
The product line accommodates diverse connector types for added versatility
Provides a unique locking mechanism for secure connections
