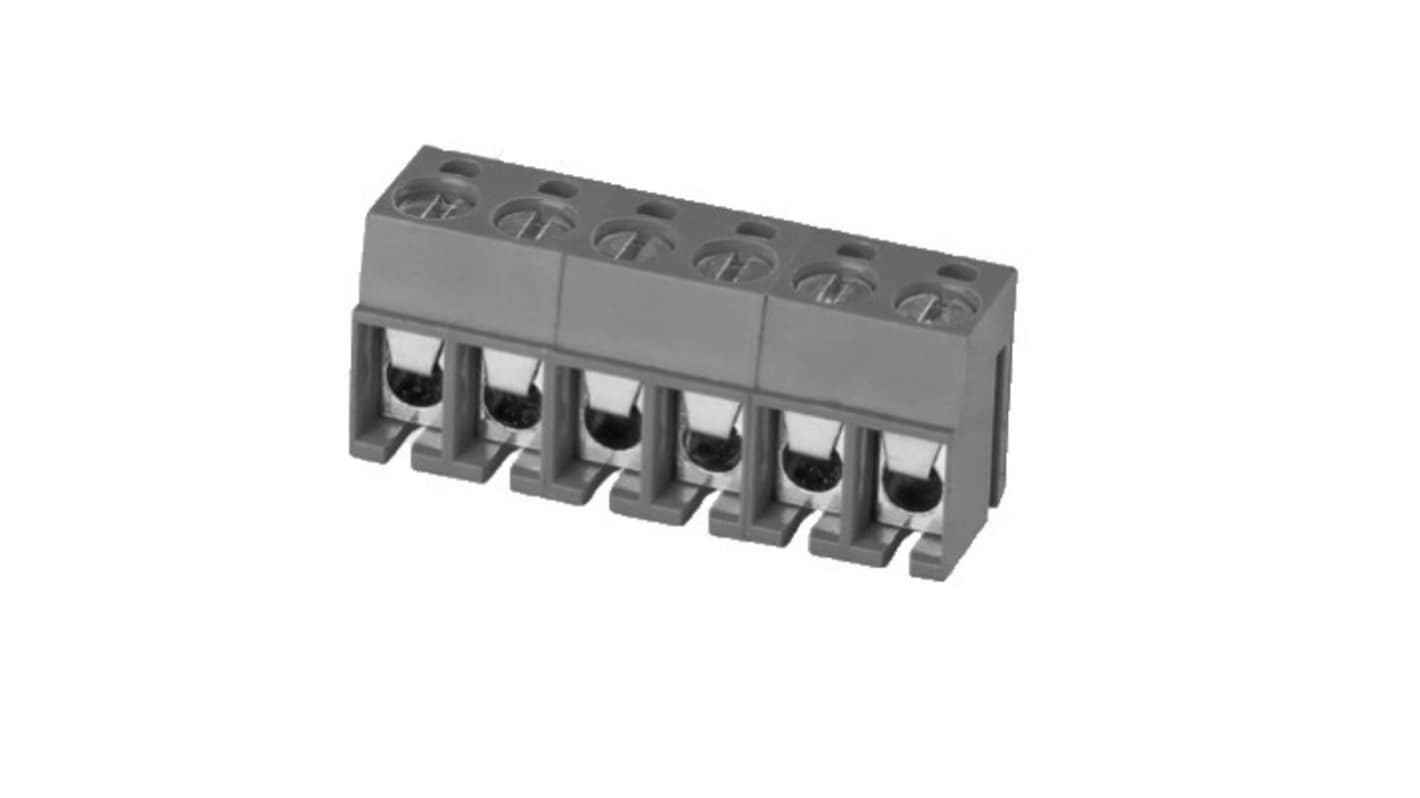

RS PRO XY301V Series Straight Through Hole PCB Header, 2 Contact(s), 5 mm Pitch, 1 Row, Shrouded

RS Stock No.:: 631-128
Brand:: RS PRO

RS PRO XY301V Series Straight Through Hole PCB Header, 2 Contact(s), 5 mm Pitch, 1 Row, Shrouded

Bulk discount available

View bulk pricing options

Subtotal (1 bag of 5 units)*

£4.72

(exc. VAT)

£5.66

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

123 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per unit*
1 - 4	£4.72	£0.944
5 - 9	£4.34	£0.868
10 +	£3.92	£0.784

*price indicative

RS Stock No.:: 631-128
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	PCB Header
	Series	XY301V
	Current	16A
	Pitch	5mm
	Housing Material	PBT
	Number of Contacts	2
	Number of Rows	1
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Connector System	Board-to-Board, Board-to-Wire
	Mount Type	Through Hole
	Contact Material	Brass
	Contact Plating	Tin
	Termination Type	Screw
	Minimum Operating Temperature	-40°C
	Tail Pin Length	4.2mm
	Contact Gender	Male
	Maximum Operating Temperature	105°C
	Standards/Approvals	ANSI-ESD S20.20:2021, CE, REACH, RoHS, UL, VDE
	Voltage	300V

	Select all
	Brand RS PRO
	Product Type PCB Header
	Series XY301V
	Current 16A
	Pitch 5mm
	Housing Material PBT
	Number of Contacts 2
	Number of Rows 1
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Connector System Board-to-Board, Board-to-Wire
	Mount Type Through Hole
	Contact Material Brass
	Contact Plating Tin
	Termination Type Screw
	Minimum Operating Temperature -40°C
	Tail Pin Length 4.2mm
	Contact Gender Male
	Maximum Operating Temperature 105°C
	Standards/Approvals ANSI-ESD S20.20:2021, CE, REACH, RoHS, UL, VDE
	Voltage 300V

COO (Country of Origin):: CN

RS PRO PCB Header, 2 Contacts, 5 mm Pitch, 16 A

The RS PRO PCB Header is designed for reliable electrical connections in board-to-board and board-to-wire applications. With a robust current rating of 16 A, it is Ideal for high-performance environments requiring secure and efficient connectivity.

Features and Benefits

Board-to-Board and Board-to-Wire System: Offers versatile connectivity options for various applications
Male Contact Gender: Ensures compatibility with female connectors for secure connections
Brass Contact Material: Provides excellent conductivity and durability
Tin Contact Plating: Enhances corrosion resistance and ensures long-lasting performance
Through Hole Mount Type: Facilitates easy and secure installation on PCBs
Shrouded Design: Protects contacts from damage and ensures proper alignment
Wide Operating Temperature Range (-40 °C to 105 °C): Suitable for use in diverse environmental conditions
Screw Termination Type: Allows for secure and reliable wire connections

Applications

Industrial automation
Consumer electronics
Telecommunications
Automotive electronics

Additional Information

Standards Approvals: Compliant with ANSI-ESD S20.20:2021, CE, REACH, RoHS, UL, and VDE standards, ensuring safety and reliability in various applications.

Why RS PRO?

RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
