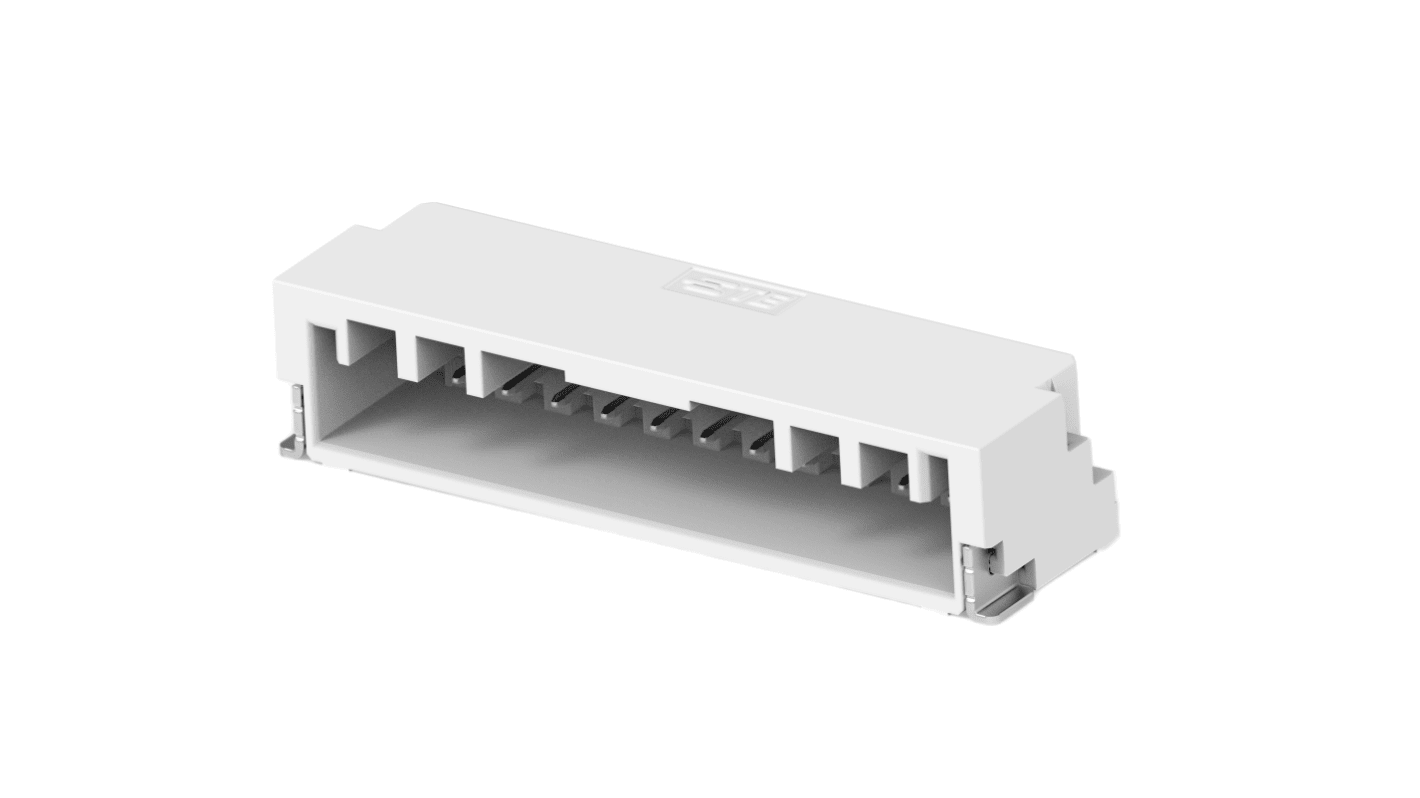

TE Connectivity GRACE INERTIA 1.25 Series Right Angle Surface Mount PCB Header, 12 Contact(s), 1.25mm Pitch, 1 Row(s),
- RS Stock No.:
- 602-374
- Mfr. Part No.:
- 1-2360545-2
- Brand:
- TE Connectivity
Subtotal (1 box of 4800 units)*
£5,082.98
(exc. VAT)
£6,099.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 208,333,333 unit(s) shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £5,082.98 | £1.059 |
*price indicative
- RS Stock No.:
- 602-374
- Mfr. Part No.:
- 1-2360545-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | GRACE INERTIA 1.25 | |
| Pitch | 1.25mm | |
| Number of Contacts | 12 | |
| Number of Rows | 1 | |
| Body Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire to Board | |
| Mounting Type | Surface Mount | |
| Termination Method | Surface Mount | |
| Contact Plating | Sn | |
| Current Rating | 1A | |
| Voltage Rating | 50 V ac | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series GRACE INERTIA 1.25 | ||
Pitch 1.25mm | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire to Board | ||
Mounting Type Surface Mount | ||
Termination Method Surface Mount | ||
Contact Plating Sn | ||
Current Rating 1A | ||
Voltage Rating 50 V ac | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is a wire-to-board connector designed for reliable electrical connections. It features a fully shrouded housing that helps ensure proper alignment and protection during mating. The contact mating area is plated with tin (Sn) to provide good conductivity and resistance to corrosion. This header is commonly used in compact PCB layouts for signal and low-power applications.
Surface mount termination method to PCB
Right angle mount orientation
EU RoHS compliant
Right angle mount orientation
EU RoHS compliant
