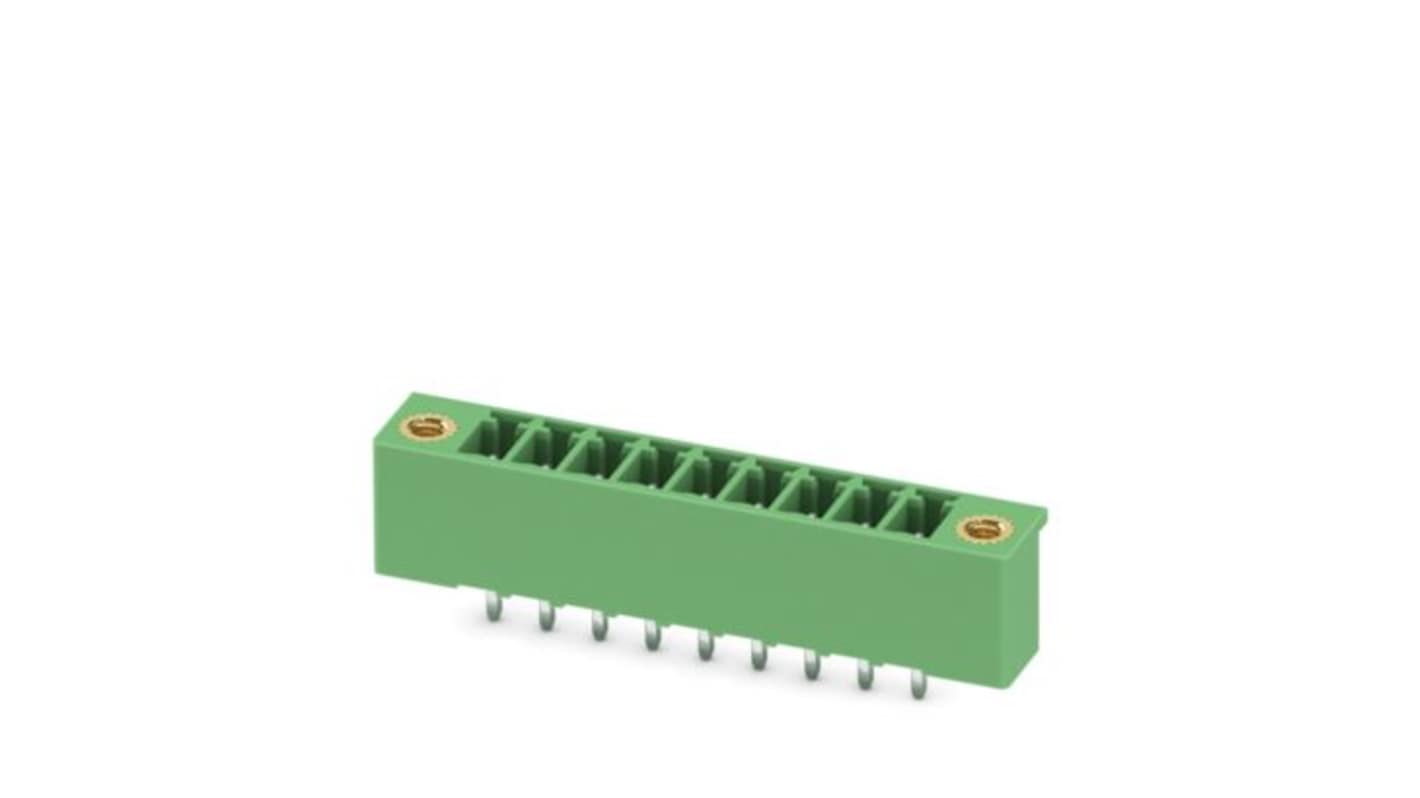

Phoenix Contact MCV Series Straight Wave Soldering Mount PCB Header, 9 Contact(s), 3.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 521-536
- Mfr. Part No.:
- 1818067
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£282.40
(exc. VAT)
£338.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £282.40 | £5.648 |
*price indicative
- RS Stock No.:
- 521-536
- Mfr. Part No.:
- 1818067
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | MCV | |
| Product Type | PCB Header | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 9 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | COMBICON MC 1.5 | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.4mm | |
| Contact Gender | Male | |
| Standards/Approvals | cULus, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, REACH, RoHS, UL 94 V0, VDE | |
| Mating Pin Length | 3.4mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series MCV | ||
Product Type PCB Header | ||
Pitch 3.5mm | ||
Current 8A | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 9 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System COMBICON MC 1.5 | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.4mm | ||
Contact Gender Male | ||
Standards/Approvals cULus, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, REACH, RoHS, UL 94 V0, VDE | ||
Mating Pin Length 3.4mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- IN
The Phoenix Contact PCB header is a reliable solution designed to meet the demands of modern electronic applications. Its robust construction accommodates nominal currents of 8 A and rated voltages up to 160 V, ensuring dependable performance under varying conditions. The unique design features a Lock-and-Release locking system, providing both security and user-friendly operation. Additionally, the green housing adds a visual distinction while incorporating durable materials that comply with environmental standards. Tailored for wave soldering, this header offers ease of installation and integration in multi-row arrangements, showcasing its versatility across different devices. The dimensional attributes not only cater to efficiency but also facilitate compact assembly on printed circuit boards.
Lock-and-Release mechanism provides intuitive operation and security
Capable of accommodating various connection technologies for greater flexibility
Designed for wave soldering, simplifying the assembly process
Constructed from durable materials that meet WEEE/RoHS compliance
Optimised dimensions enhance mounting efficiency on PCBs
Features a visual locking system facilitating easy identification and use
High-performance characteristics tested under harsh environmental conditions
