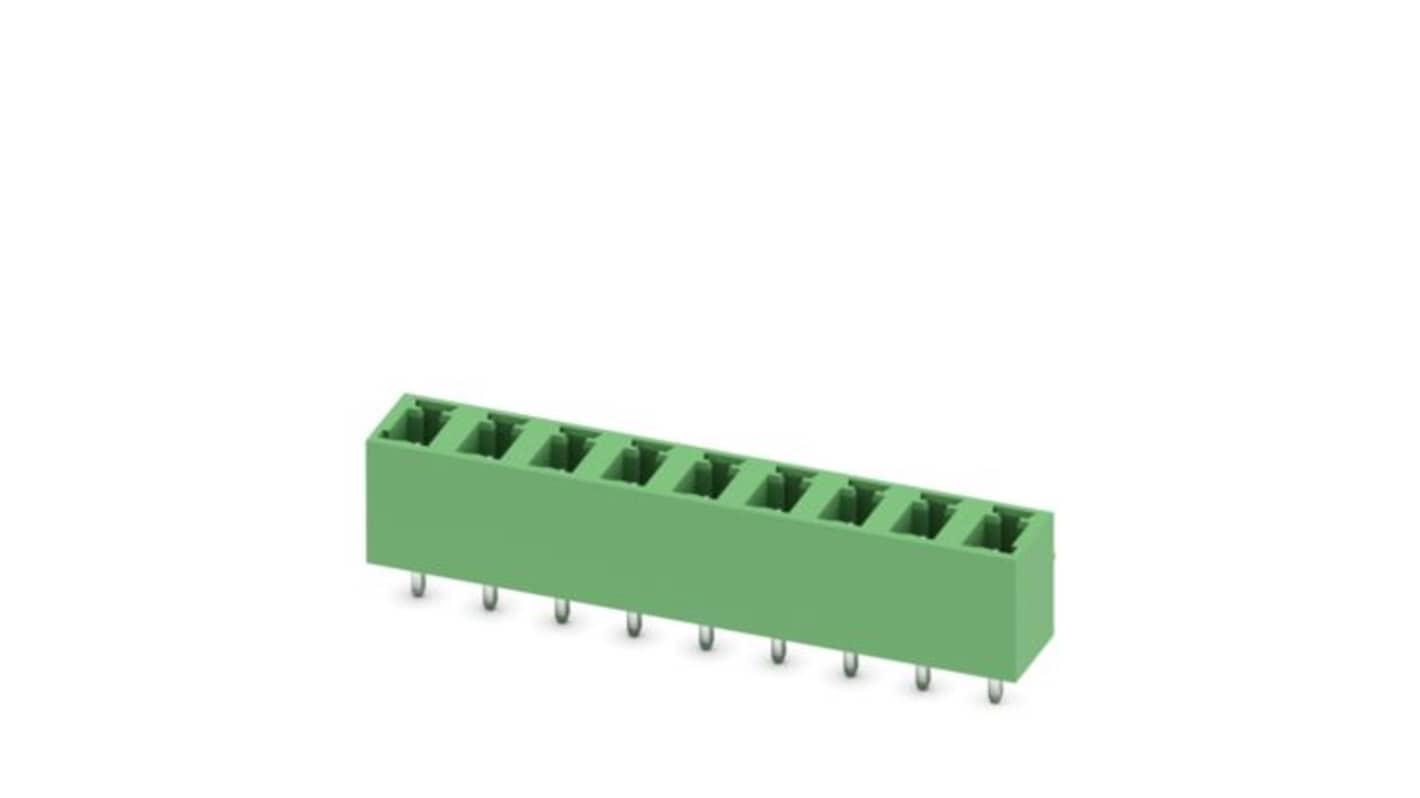

Phoenix Contact MCV Series Vertical Wave Soldering PCB Header, 9 Contact(s), 5.08mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 492-690
- Mfr. Part No.:
- 1836367
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£198.07
(exc. VAT)
£237.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £198.07 | £3.961 |
*price indicative
- RS Stock No.:
- 492-690
- Mfr. Part No.:
- 1836367
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | MCV | |
Pitch | 5.08mm | |
Number of Contacts | 9 | |
Number of Rows | 1 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Wave Soldering | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series MCV | ||
Pitch 5.08mm | ||
Number of Contacts 9 | ||
Number of Rows 1 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Wave Soldering | ||
- COO (Country of Origin):
- DE
The Phoenix Contact MCV 1.5/9-G-5.08 is a PCB header that seamlessly bridges connectivity needs with robust design. Crafted for versatility, this component supports a nominal current of 8 A and an impressive rated voltage of 320 V, making it ideal for a variety of applications. The green PBT housing and tin-plated contacts ensure durability and compliance with WEEE/RoHS standards. With a pitch of 5.08 mm, this header accommodates nine positions and connections, offering efficient layout options for multi-row arrangements. The linear pinning allows for easy installation on PCBs through wave soldering, while the maximum dimensions of 45.72 mm width and 12.6 mm height exemplify a compact footprint without sacrificing performance. Whether you're designing new devices or upgrading existing systems, this PCB header provides the flexibility and reliability essential in modern electronic solutions.
PCB headers designed for easy multi-row configurations
Durable materials ensure long-lasting performance under various conditions
Versatile accommodation of different connection technologies
Compliance with international standards and regulations for safety
Provides a reliable interface for seamless electronic integrations
Optimised pin design enables straightforward and secure mounting
Suitable for numerous applications requiring efficient electrical connections
Enhances device flexibility in both design and functionality
Durable materials ensure long-lasting performance under various conditions
Versatile accommodation of different connection technologies
Compliance with international standards and regulations for safety
Provides a reliable interface for seamless electronic integrations
Optimised pin design enables straightforward and secure mounting
Suitable for numerous applications requiring efficient electrical connections
Enhances device flexibility in both design and functionality
