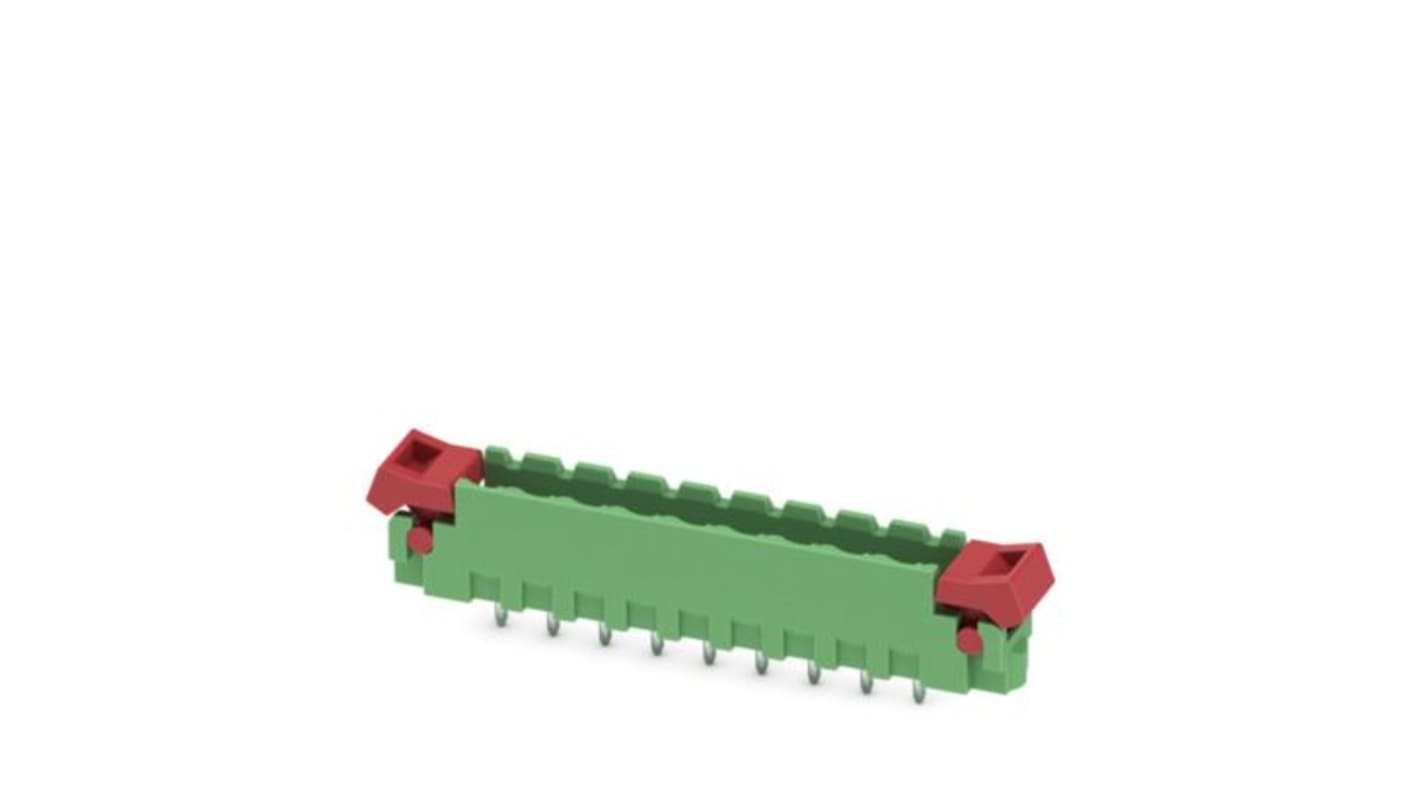

Phoenix Contact MSTBV Series Straight Wave Soldering Mount PCB Header, 9 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£208.33

(exc. VAT)

£250.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£208.33£4.167

*price indicative

RS Stock No.:
497-064
Mfr. Part No.:
1808531
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

MSTBV

Product Type

PCB Header

Current

12A

Pitch

5.08mm

Number of Contacts

9

Housing Material

Polybutylene Terephthalate

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON MSTB 2.5

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Minimum Operating Temperature

-40°C

Row Pitch

5.08mm

Termination Type

Solder

Maximum Operating Temperature

105°C

Tail Pin Length

3.9mm

Contact Gender

Male

Mating Pin Length

3.9mm

Standards/Approvals

CSA 13631-2585951, cULus E60425-19931011, EN ISO 22479:2022-06, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, UL 94 V0, VDE 40050648

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header delivers exceptional connectivity with its robust design, making it a perfect choice for demanding applications. This innovative product combines a compact form with reliable electrical performance, ensuring seamless integration into various electronic systems. The product’s features are optimised for ease of use, enabling efficient installation and maintenance. It offers high current and voltage ratings, ensuring dependable operation even in challenging environments. The combination of durability and functionality positions this PCB header as a top choice for professionals seeking high standards of quality and performance in their projects.

Designed for reliable electrical connectivity in demanding applications

Compact footprint optimises space utilisation on PCBs

Supports high current loads for versatile use

Constructed with quality materials ensuring long-term reliability

Suitable for wave soldering installation for user-friendly assembly

Features linear pin layout for simplified plug-in alignment

WEEE/RoHS compliant, supporting environmentally friendly practices

Tested to rigorous standards for electrical and mechanical performance

Provides effective contact resistance for stable connections

Manufactured in Germany, reflecting high-quality engineering
