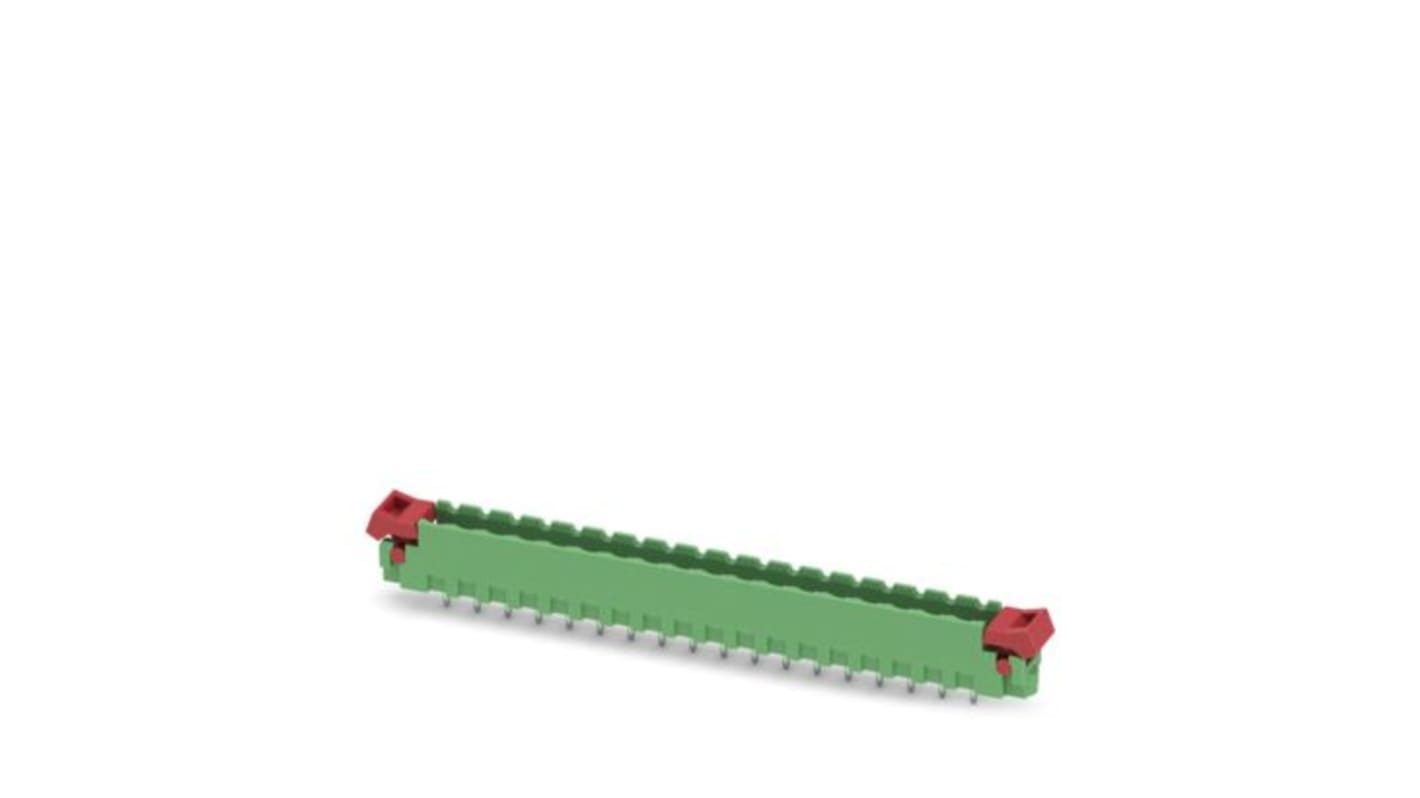

Phoenix Contact MSTBV Series Straight Wave Soldering Mount PCB Header, 18 Contact(s), 5.08 mm Pitch, 1 Row, Shrouded

View all PCB Headers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
520-216
Mfr. Part No.:
1808625
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

MSTBV

Current

12A

Pitch

5.08mm

Number of Contacts

18

Housing Material

Polybutylene Terephthalate

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON MSTB 2.5

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Row Pitch

5.08mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Tail Pin Length

3.9mm

Contact Gender

Male

Standards/Approvals

CSA, cULus, EN ISO 22479:2022-06, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, VDE

Mating Pin Length

3.9mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact MSTBV 2.5/18-GEH-5.08 PCB header is a versatile and high-performance solution designed to meet diverse connection needs in electronic applications. Ideal for PCB integrations, this header accommodates a nominal cross-section of 2.5 mm², offering exceptional reliability with a nominal current of 12 A and a rated voltage of 320 V. Its innovative design includes a linear pin layout with an efficient pitch of 5.08 mm, ensuring a compact configuration while facilitating multi-row arrangements. Constructed from quality materials compliant with WEEE and RoHS directives, this product guarantees durability and reliability in a variety of environments. Further enhancing its appeal, the header supports wave soldering mounting techniques, streamlining installation processes and optimising device design flexibility.

Supports a variety of connector technologies for maximum design adaptability

Allows vertical connection solutions to optimise PCB space

Compliant with international standards for enhanced safety and reliability

Tin-plated contacts improve performance and increase longevity

Free from whiskers according to strict testing protocols for added reliability

Compact design reduces space requirements on PCBs

Minimal weight enhances overall product efficiency during transport and handling

Durable structure withstands rigorous operational demands across various industries
