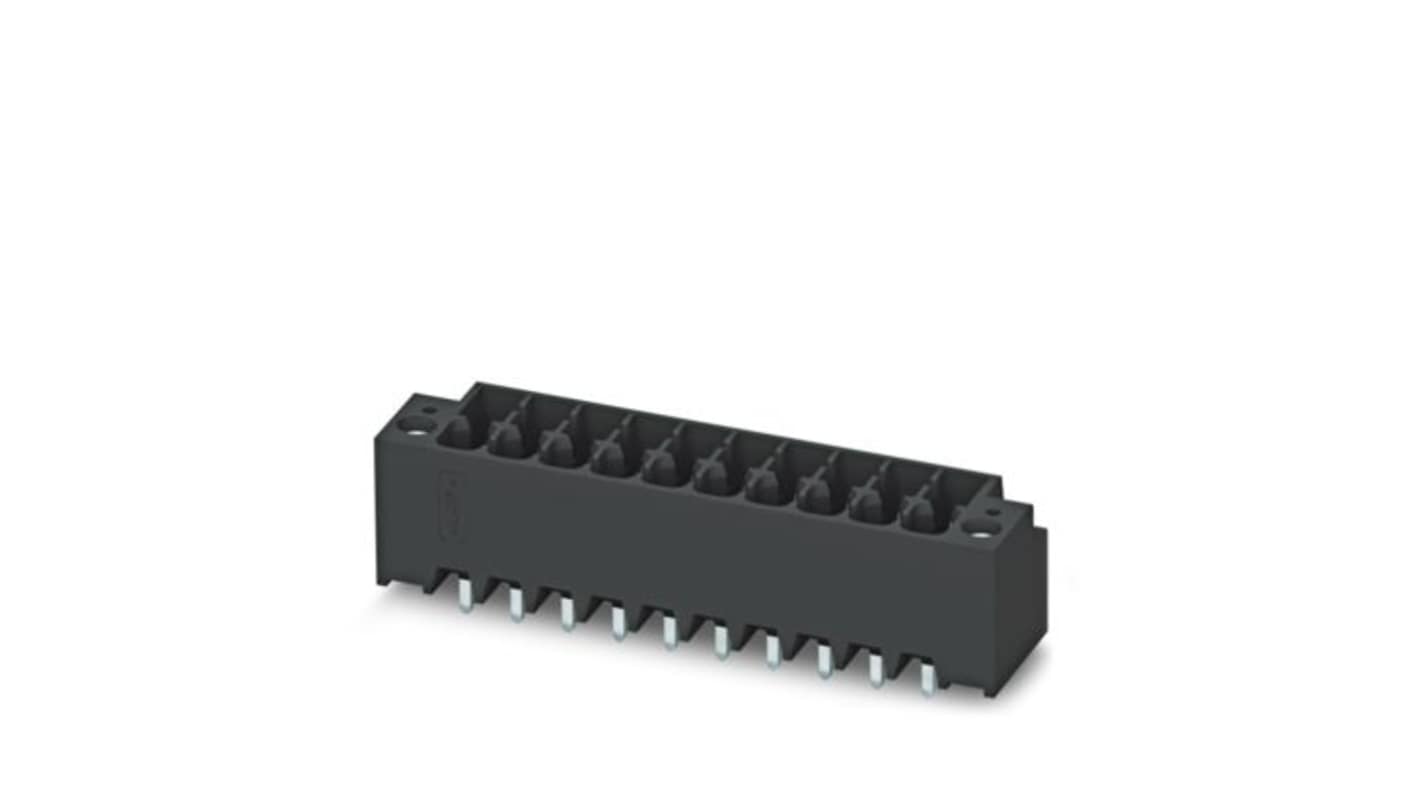

Phoenix Contact DMCV Series Straight Through Hole PCB Header, 38 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 520-918
- Mfr. Part No.:
- 1875013
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£789.15
(exc. VAT)
£946.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £789.15 | £15.783 |
*price indicative
- RS Stock No.:
- 520-918
- Mfr. Part No.:
- 1875013
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | DMCV | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Contacts | 38 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | COMBICON | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 2.6mm | |
| Contact Gender | Male | |
| Standards/Approvals | cULus Recognised, VDE | |
| Mating Pin Length | 2.6mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series DMCV | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Contacts 38 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System COMBICON | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 2.6mm | ||
Contact Gender Male | ||
Standards/Approvals cULus Recognised, VDE | ||
Mating Pin Length 2.6mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header is expertly crafted for seamless integration into various electronic applications, ensuring reliable connections and optimal performance. Engineered for compact spaces, the device features a space-saving design and a robust structure that supports multiple rows and potentials. The innovative locking mechanism enhances user experience, allowing for effortless insertion and release while providing secure engagement. Its advanced design, focused on durability and functionality, makes this component a preferred choice for modern PCB configurations.
Designed for efficient integration into the SMT soldering process
Facilitates multi-row arrangements with vertical connectivity
Intuitive release mechanism enhances user-friendliness
Robust screwable flange guarantees superior mechanical stability
Optimised for applications where space efficiency is crucial
Constructed from high-quality, RoHS-compliant materials
Adapts well to both reflow and wave soldering processes
