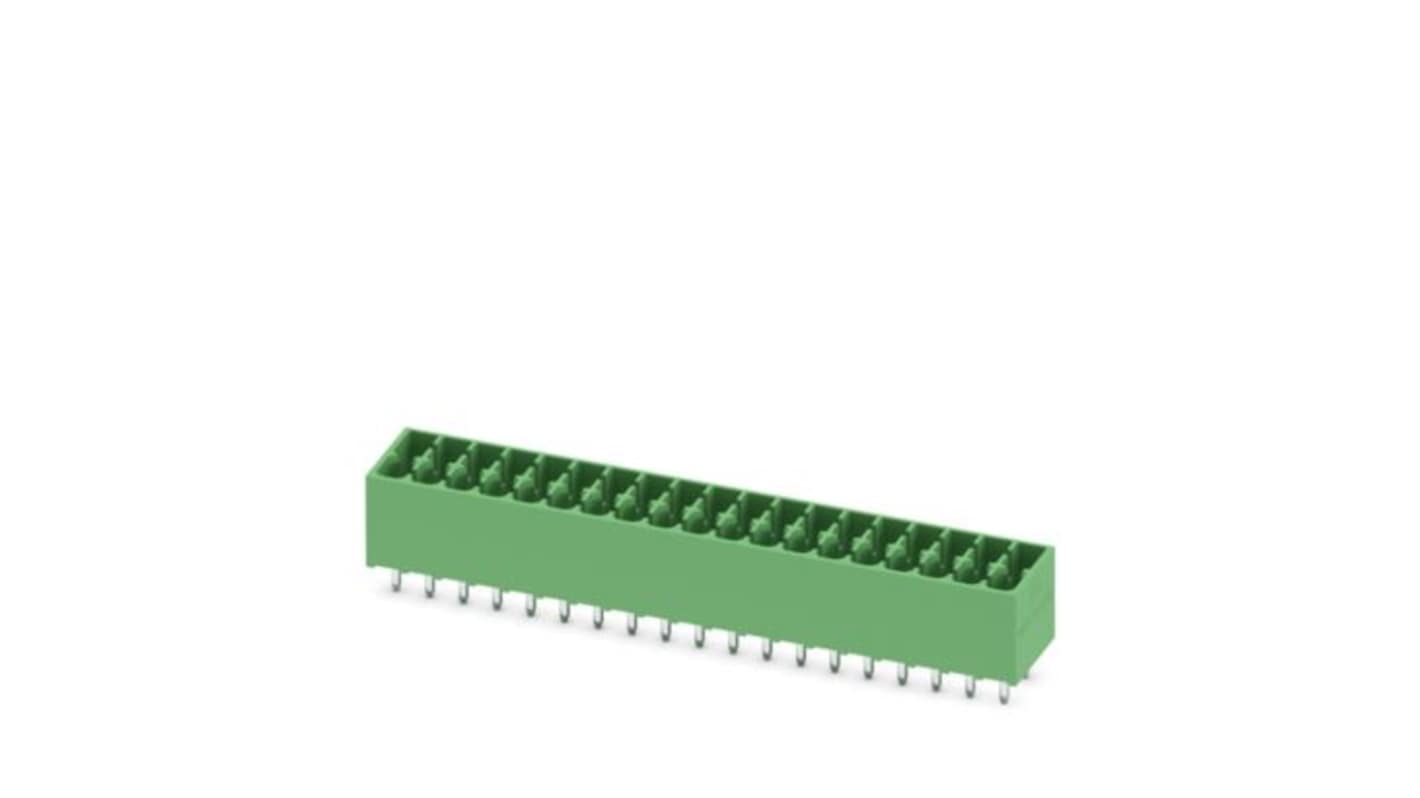

Phoenix Contact DMCV Series Wave Soldering Mount PCB Header, 38 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 556-177
- Mfr. Part No.:
- 1053861
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£711.95
(exc. VAT)
£854.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £711.95 | £14.239 |
*price indicative
- RS Stock No.:
- 556-177
- Mfr. Part No.:
- 1053861
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | DMCV | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 3.5mm | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 38 | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | COMBICON DFMC 1 | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder Pin | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3.5mm | |
| Standards/Approvals | cULus Recognised | |
| Mating Pin Length | 3.5mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series DMCV | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 3.5mm | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 38 | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System COMBICON DFMC 1 | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Termination Type Solder Pin | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Tail Pin Length 3.5mm | ||
Standards/Approvals cULus Recognised | ||
Mating Pin Length 3.5mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB header, part of the DMCV 1.5/-G1 series, redefines versatility and efficiency in connection technologies. Designed to accommodate a nominal current of 8 A and a rated voltage of 160 V, it expertly combines robust electrical performance with compact dimensions, making it ideal for applications where space is a premium. The innovative multi-level conductor connection enhances contact density, facilitating a more efficient layout on your PCB. Crafted from durable materials, the component ensures reliability, even in demanding environments. Whether deployed in automation or control technology, this header simplifies connections while adhering to global standards, proving to be a dependable choice for engineers and technicians alike. Available in a practical packing unit, it’s a must-have for your project needs.
Compact design optimises space without sacrificing performance
Multi-level connection enhances contact density for efficient layouts
Robust materials provide excellent durability for demanding applications
Standardised mounting principles ensure ease of installation worldwide
WEEE/RoHS compliant, supporting eco-friendly initiatives
