Phoenix Contact DMCV Series Vertical Wave Soldering Mount PCB Header, 20 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 487-834
- Mfr. Part No.:
- 1818782
- Brand:
- Phoenix Contact

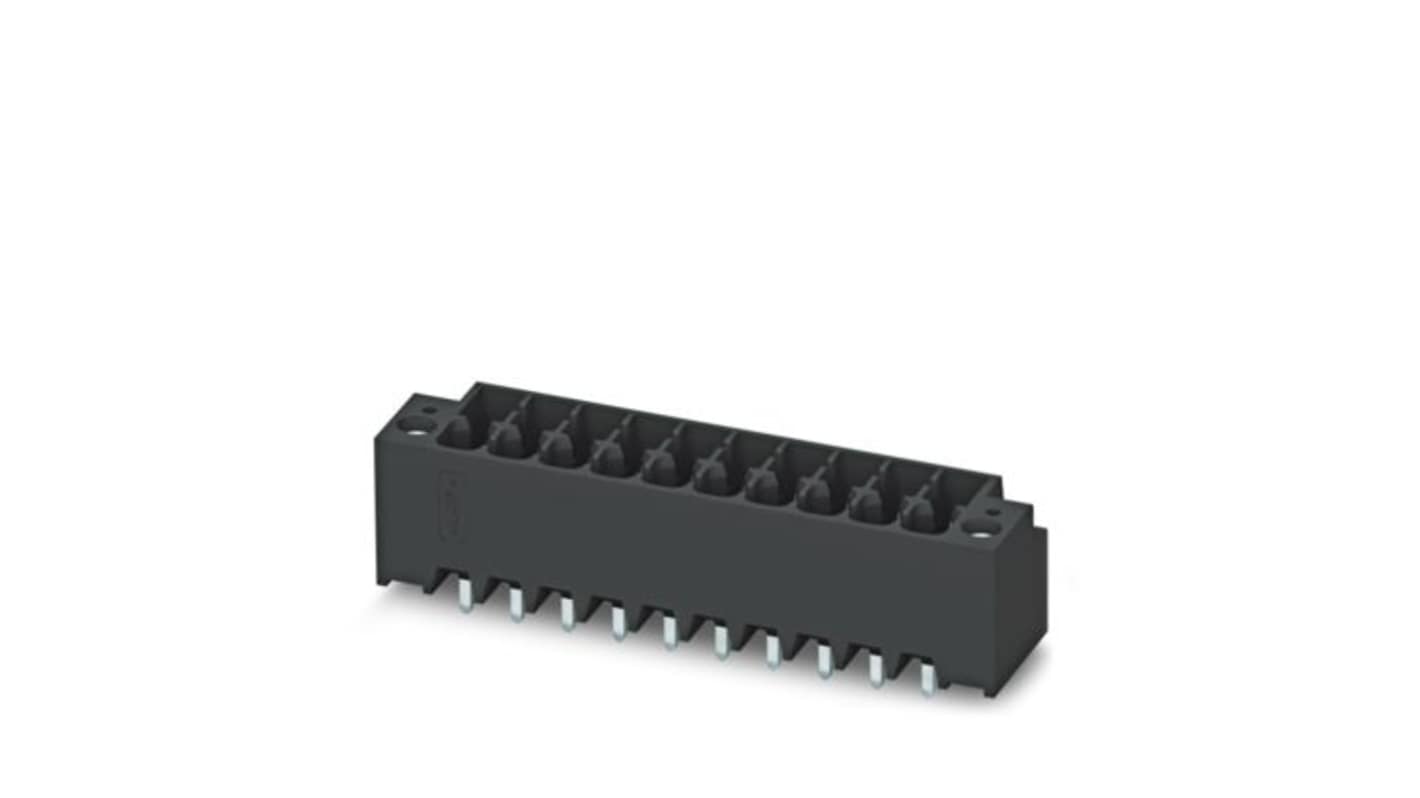

Image representative of range
Subtotal (1 pack of 220 units)*
£737.70
(exc. VAT)
£885.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £737.70 | £3.353 |
*price indicative
- RS Stock No.:
- 487-834
- Mfr. Part No.:
- 1818782
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | DMCV | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Contacts | 20 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON DFMC 1 | |
| Mount Type | Wave Soldering Mount | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 2mm | |
| Contact Gender | Male | |
| Mating Pin Length | 2mm | |
| Standards/Approvals | cULus Recognised, VDE | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series DMCV | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Contacts 20 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON DFMC 1 | ||
Mount Type Wave Soldering Mount | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 2mm | ||
Contact Gender Male | ||
Mating Pin Length 2mm | ||
Standards/Approvals cULus Recognised, VDE | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header, part of the DMCV 1.5/-G1F-THR series, is designed to enhance connectivity in Compact electronic applications. Built for seamless integration into SMT soldering processes, this innovative header features a vertical connection that facilitates multi-row arrangements on printed circuit boards (PCBs). Its snap-in locking mechanism ensures reliable performance while allowing for easy installation and removal. With a robust and Compact design, the product caters to the demands of modern electronics, making it an Ideal choice for applications where space is at a premium. Its high-quality construction guarantees excellent performance under varied environmental conditions, ensuring longevity and reliability in all settings. The DMCV 1.5/10-G1F-3.5-LRP20THRR72 is not just a header, it's a solution that adapts to your needs, making it a standout choice in PCB connectivity.
Designed specifically for SMT soldering processes
Facilitates vertical connection for efficient PCB layout
Includes a snap-in locking system for secure retention
Compact design optimises space without compromising performance
High-quality materials ensure compliance with environmental standards
Robust construction allows for enhanced mechanical stability
Catering to a wide range of applications in electronics
