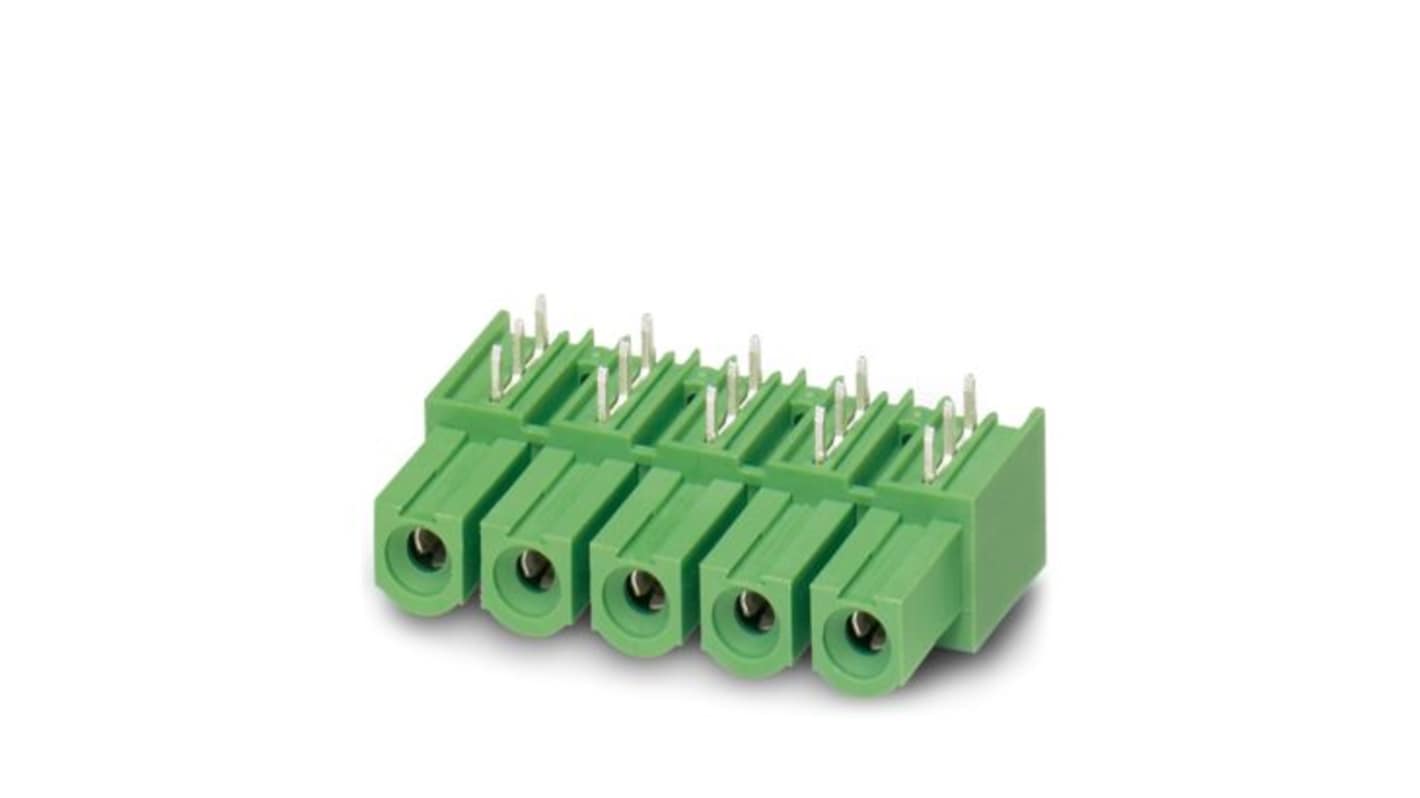

Phoenix Contact IPC Series 180° Wave Soldering Mount PCB Header, 9 Contact(s), 10.16 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£1,742.43

(exc. VAT)

£2,090.92

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Pack(s)
Per Pack
Per unit*
1 +£1,742.43£34.849

*price indicative

RS Stock No.:
518-776
Mfr. Part No.:
1969920
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

IPC

Pitch

10.16mm

Current

76A

Number of Contacts

9

Housing Material

Polyamide

Number of Rows

1

Orientation

180°

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON PC 6 hybrid

Contact Plating

Silver

Contact Material

Copper Alloy

Minimum Operating Temperature

-40°C

Row Pitch

10.16mm

Termination Type

Solder

Maximum Operating Temperature

100°C

Tail Pin Length

4mm

Contact Gender

Female

Standards/Approvals

cULus Recognised, IEC 61984, VDE

Mating Pin Length

4mm

Voltage

1000 V

COO (Country of Origin):
PL
The Phoenix Contact IPC 16/9-GU-10.16 PCB header exemplifies innovation in connector technology, designed to notably enhance device flexibility. Built for versatile applications, this inverted socket boasts a robust construction ideal for touch-proof outputs and PCB-to-PCB connections. The incorporation of a double steel spring fortifies reliability against fluctuations in temperature and power, ensuring consistent performance in demanding environments. With a thoughtful design that facilitates wave soldering and an intuitive pin layout for easy installation, this product distinctively meets the needs of modern device configuration. Its premium material construction guarantees compliance with WEEE/RoHS standards while promoting longevity. Experience unparalleled connectivity solutions with this expertly developed header that merges functional design with quality assurance, making it a superior choice for engineers and manufacturers alike.

Designed for touch-proof device outputs and PCB-to-PCB connections

Double steel spring ensures stability under temperature and power variations

Facilitates easy installation with a user-friendly pin layout

Constructed from high-quality materials for long-lasting durability

Complies with stringent WEEE/RoHS standards for environmental safety

Offers flexibility for various connection technologies in device design

Optimized for wave soldering, ensuring efficient assembly
