Phoenix Contact IPC Series Wave Soldering Mount PCB Header, 4 Contact(s), 10.16 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 483-706
- Mfr. Part No.:
- 1969632
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£829.13
(exc. VAT)
£994.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £829.13 | £16.583 |
*price indicative
- RS Stock No.:
- 483-706
- Mfr. Part No.:
- 1969632
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | IPC | |
| Pitch | 10.16mm | |
| Current | 76A | |
| Housing Material | Polyamide | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | COMBICON PC 6 hybrid | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Row Pitch | 10.16mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Tail Pin Length | 4mm | |
| Standards/Approvals | cULus Recognised, VDE | |
| Mating Pin Length | 4mm | |
| Voltage | 1000 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series IPC | ||
Pitch 10.16mm | ||
Current 76A | ||
Housing Material Polyamide | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System COMBICON PC 6 hybrid | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Row Pitch 10.16mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Tail Pin Length 4mm | ||
Standards/Approvals cULus Recognised, VDE | ||
Mating Pin Length 4mm | ||
Voltage 1000 V | ||
- COO (Country of Origin):
- PL

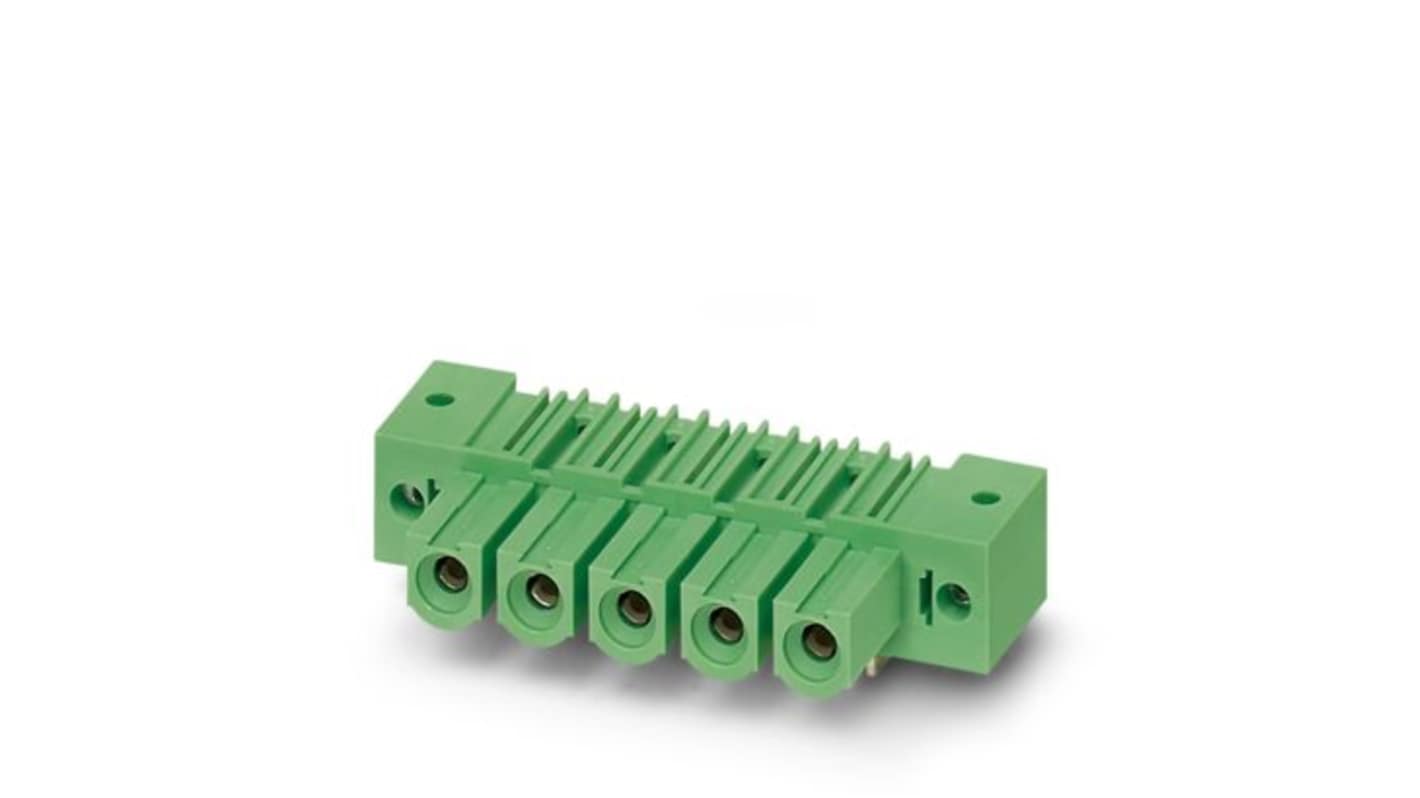

The Phoenix Contact IPC 16/4-GF-10.16 PCB header is designed to meet the needs of modern connectivity solutions with its ingenious inverted structure facilitating easy device integration. This product is engineered with precision, drawing on extensive expertise in connector technology, making it a dependable choice for a wide range of applications. With a nominal current rating of 76 A and a robust rated voltage of 1000 V, this header is suitable for demanding electrical environments. Its green colour and high-quality materials reflect a commitment to both aesthetics and durability, ensuring it stands strong under various operational stresses. The user-friendly design optimises ease of installation while maintaining high standards of safety and performance.
Inverted header design enhances touch-proof connections
Compatible with various connection technologies for maximum versatility
Screw locking mechanism provides superior mechanical stability
Integrated double steel spring offers added safety during voltage fluctuations
Threaded flange allows for reliable mounting on PCBs
