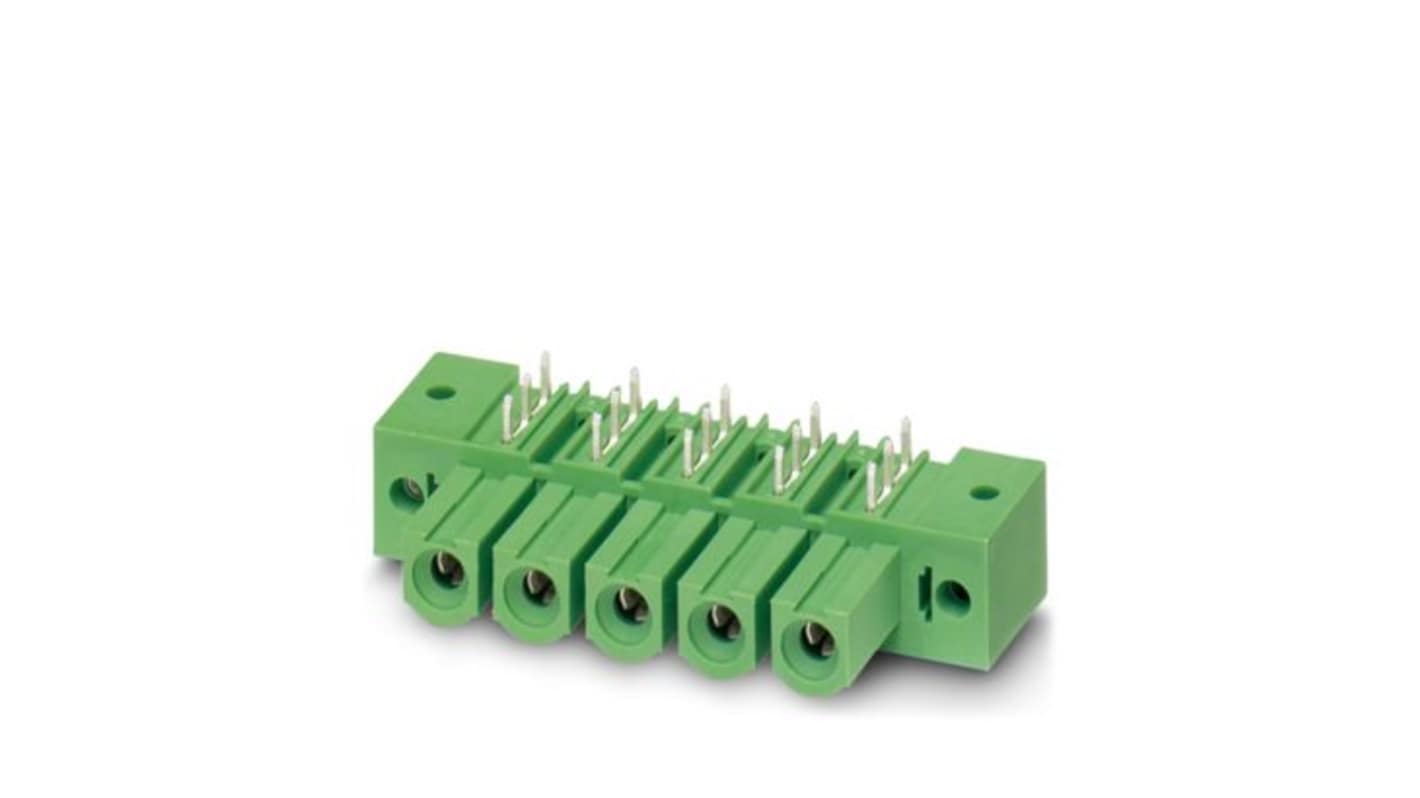

Phoenix Contact IPC Series 180° Wave Soldering Mount PCB Header, 5 Contact(s), 10.16 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£1,022.46

(exc. VAT)

£1,226.95

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£1,022.46£20.449

*price indicative

RS Stock No.:
496-954
Mfr. Part No.:
1969962
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

IPC

Product Type

PCB Header

Pitch

10.16mm

Current

76A

Number of Contacts

5

Housing Material

Polyamide

Number of Rows

1

Orientation

180°

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON PC 6 hybrid

Contact Material

Copper Alloy

Contact Plating

Silver

Termination Type

Solder

Row Pitch

10.16mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Tail Pin Length

4mm

Contact Gender

Female

Standards/Approvals

cULus Recognised, VDE

Mating Pin Length

4mm

Voltage

1000 V

COO (Country of Origin):
PL
The Phoenix Contact IPC 16/5-GFU-10.16 PCB header delivers an optimal combination of performance and versatility for modern device designs. Boasting a nominal current of 76 A and an impressive rated voltage of 1000 V, this inverted header is engineered for seamless integration into various application environments. Its design facilitates wave soldering, ensuring durable connections in demanding conditions. The user-friendly screw locking mechanism enhances mechanical stability while providing ease of use during installation. Furthermore, compliance with WEEE/RoHS standards ensures that the product aligns with environmental sustainability requirements. Its compact design, with a pitch of 10.16 mm, allows for efficient space utilisation on your PCB, making it an ideal choice for projects requiring reliability and performance without compromising on space.

Inverted header design enhances safety for touch-proof device outputs

Flexible design accommodates various connection technologies

Screwable flange provides superior mechanical stability

Integrated double steel spring ensures enhanced safety during temperature fluctuations

Optimized for wave soldering, streamlining production processes

Manufactured from WEEE/RoHS compliant materials for environmentally friendly usage

Dimensions support efficient layout options in compact designs

Utilises a common pin layout for compatibility across multiple applications
