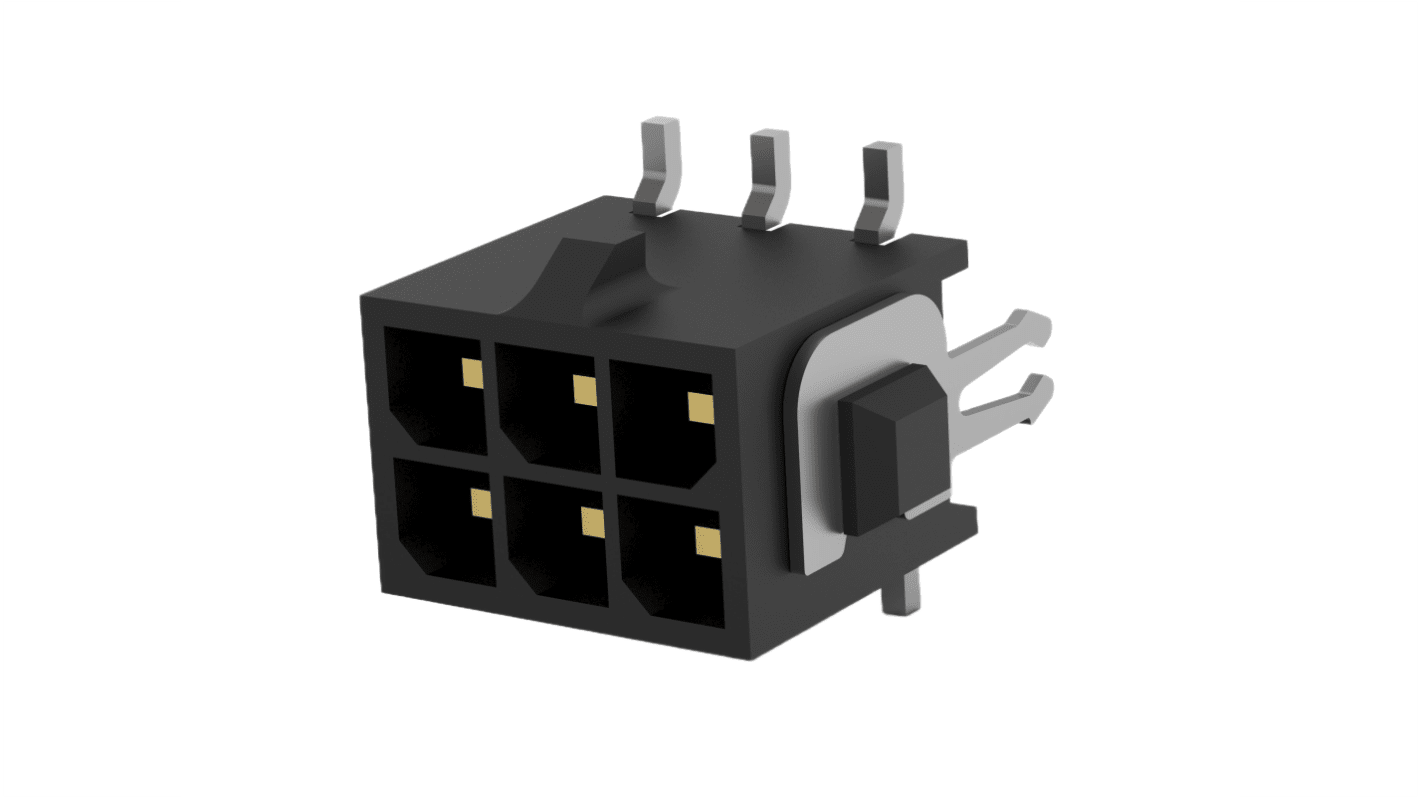

TE Connectivity MATE-N-LOK Series Vertical Surface PCB Header, 6 Contact(s), 3 mm Pitch, 2 Row, Shrouded

View all PCB Headers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
510-094
Distrelec Article No.:
304-58-607
Mfr. Part No.:
3-794635-6
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

MATE-N-LOK

Current

5A

Pitch

3mm

Housing Material

Nylon

Number of Contacts

6

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Surface

Contact Plating

Gold Plated

Contact Material

Contact Base Material Brass

Termination Type

Surface Mount

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Mating Pin Length

4.15mm

Standards/Approvals

2016 Compliant, China RoHS 2 Directive MIIT Order No 32, CNR, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, Glow Wire Rating GWT 750°C (Without Flame), UL 94V-0, UL E28476, USR UL Rating Recognised

Voltage

250 V

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Header is engineered for seamless integration in vertical wire-to-board applications, offering exceptional performance for a variety of circuit designs. This fully shrouded connector is designed with a 6-position arrangement, utilising a 3 mm centreline that ensures efficient space utilisation on printed circuit boards. Its robust gold-plated contacts provide reliable connectivity while enhancing longevity through excellent corrosion resistance. The header features a rugged nylon housing, capable of withstanding demanding environments with operating temperatures ranging from -40 to 105 °C. This innovative solution is ideal for engineers seeking dependable and high-performance connectors in power applications, facilitating ease of assembly and minimising installation errors.

Utilises a fully shrouded design for enhanced protection against physical damage

Incorporates a locking tab to secure the mating connection reliably

Features a top entry location that simplifies access during assembly

Compatible with high temperature nylon material for improved durability

Allows for surface mount termination methods, accommodating various PCB designs

Offers a phosphor bronze retention feature for secure board attachment

Meets stringent industry standards for safety and reliability in electronic applications

Enhanced mating alignment type ensures consistent connection integrity during use
