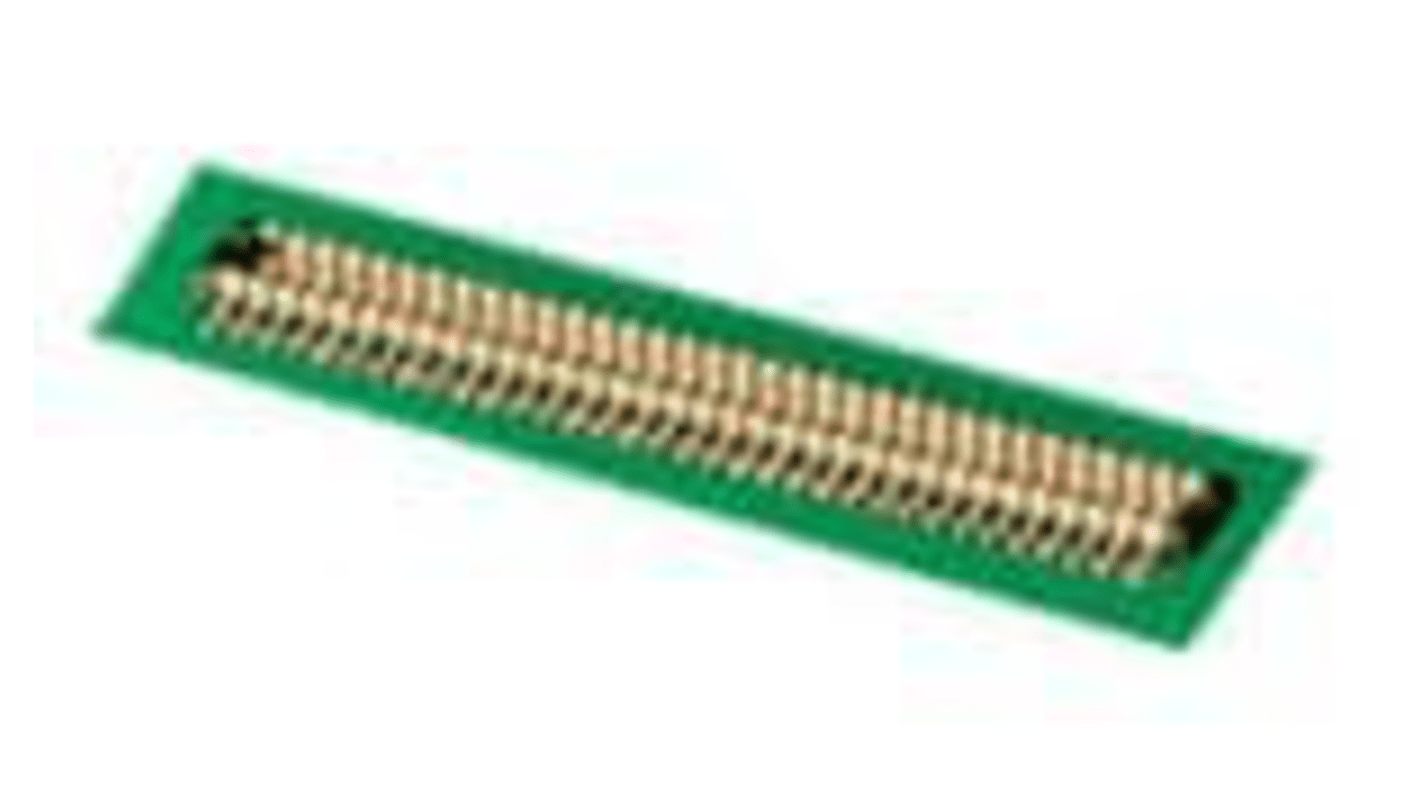

Molex 504622 Series Vertical Surface PCB Header, 10 Contact(s), 0.35 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 506-079
- Mfr. Part No.:
- 504622-1010
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£477.42
(exc. VAT)
£572.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £477.42 | £0.159 |
*price indicative
- RS Stock No.:
- 506-079
- Mfr. Part No.:
- 504622-1010
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 504622 | |
| Product Type | PCB Header | |
| Pitch | 0.35mm | |
| Current | 0.3A | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 0.35mm | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Voltage | 50 Vrms | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 504622 | ||
Product Type PCB Header | ||
Pitch 0.35mm | ||
Current 0.3A | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 0.35mm | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Voltage 50 Vrms | ||
- COO (Country of Origin):
- JP
The TE Connectivity connector is engineered for superior performance in a wide range of applications. Specifically designed for board-to-board connectivity, it boasts an innovative slim profile that reduces space requirements without compromising functionality. With a robust construction accommodating up to 10 circuits, this connector has been developed for high-density environments, ensuring reliable operation in critical electronic assemblies. Its vertical orientation allows for easy integration into various PCB layouts, while the surface mount design enhances installation efficiency. Built to face diverse operating conditions, this connector guarantees optimal durability and reliability for the most demanding applications.
Optimised for slim-profile designs for space-constrained applications
Vertical orientation simplifies assembly and integration into PCBs
Capable of supporting multiple mating cycles for enhanced longevity
Constructed from high-quality materials for dependable performance
Includes robust copper alloy construction for reliable electrical connectivity
Offers a maximum operating temperature range to suit various environments
Utilises gold plating on both mating and termination areas for improved conductivity
Designed to meet stringent compliance standards for environmental safety
