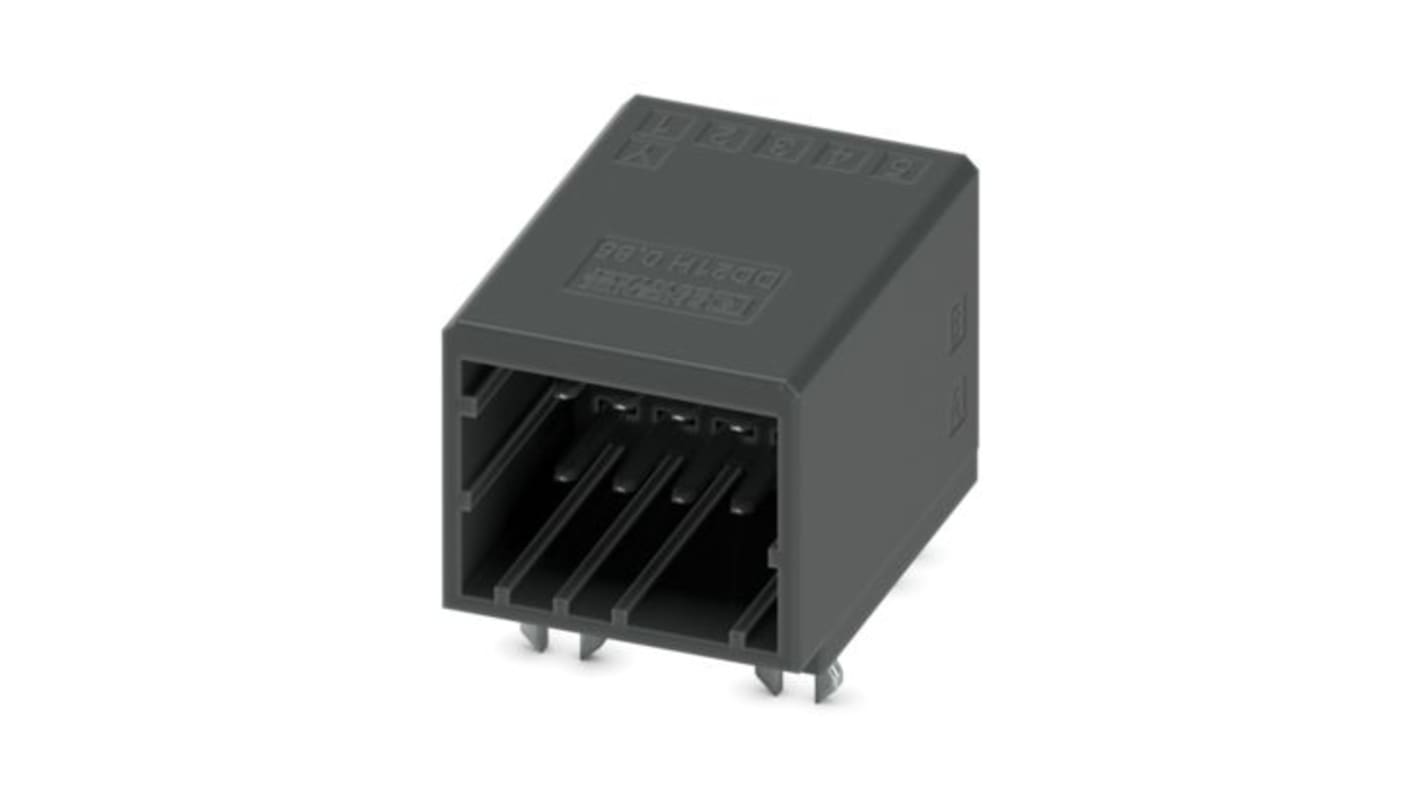

Phoenix Contact DD21H Series Wave Soldering Mount PCB Header, 10 Contact(s), 2.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 492-931
- Mfr. Part No.:
- 1378143
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£193.49
(exc. VAT)
£232.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £193.49 | £3.87 |
*price indicative
- RS Stock No.:
- 492-931
- Mfr. Part No.:
- 1378143
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | DD21H | |
| Pitch | 2.5mm | |
| Current | 5A | |
| Number of Contacts | 10 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | CONNEXIS | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Pin | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -55°C | |
| Tail Pin Length | 3.4mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | DIN EN 61984, IEC 60068-2-27:2008-02, IEC 60068-2-6:2007-12, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2020-05, ISO 6988:1985-02, UL 94 V0 | |
| Mating Pin Length | 3.4mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series DD21H | ||
Pitch 2.5mm | ||
Current 5A | ||
Number of Contacts 10 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System CONNEXIS | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Pin | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -55°C | ||
Tail Pin Length 3.4mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals DIN EN 61984, IEC 60068-2-27:2008-02, IEC 60068-2-6:2007-12, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2020-05, ISO 6988:1985-02, UL 94 V0 | ||
Mating Pin Length 3.4mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB header offers an outstanding solution for reliable electrical connections within various applications. Designed with a focus on user-friendly assembly, the product features a snap-in locking mechanism that ensures secure connections, even in high-vibration environments. Its robust construction allows for wave soldering, making the installation process both efficient and effective. With a compact pitch of 2.5 mm, it accommodates up to 10 positions across 2 rows, optimising space without compromising on electrical performance. The tin-plated copper alloy contacts ensure excellent conductivity and longevity, while compliant with WEEE/RoHS directives, making it an environmentally responsible choice. Ideal for use in various industries, this product is engineered to withstand extreme conditions, with a wide operating temperature range and superior resistance to thermal stress.
Robust design enhances durability in demanding conditions
Offers easy PCB replacement with plug-in modules
Lightweight construction ensures minimal impact on overall device weight
Black colour provides a sleek finish that blends seamlessly with most designs
Features intuitive locking mechanism to prevent accidental disconnection
Wave soldering compatibility simplifies the assembly process
Maintains excellent contact resistance for superior performance
Environmentally friendly, free from hazardous substances
Designed for compatibility with various industry applications
Precision manufacturing guarantees reliable long-term use
