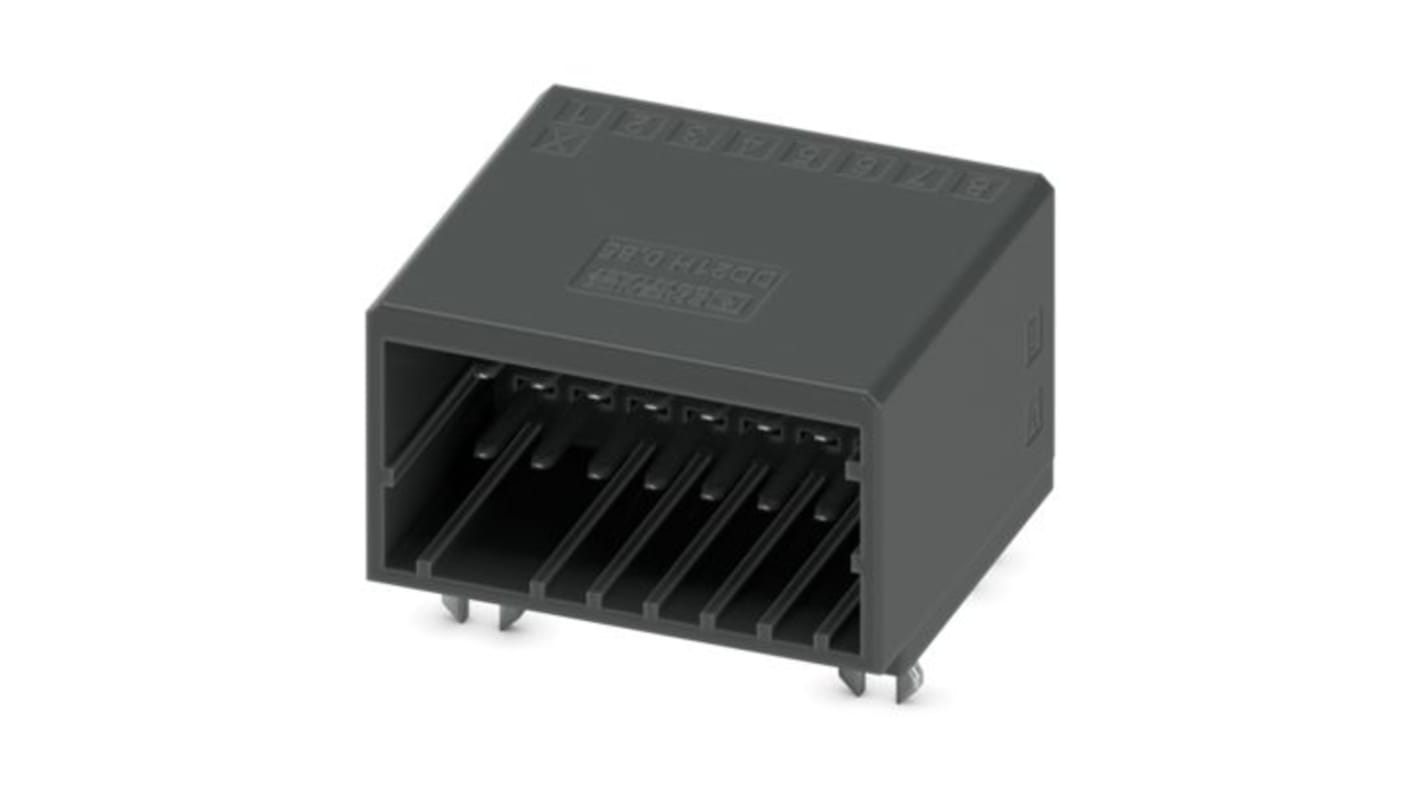

Phoenix Contact DD21H Series Wave Soldering Mount PCB Header, 16 Contact(s), 2.5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£257.99

(exc. VAT)

£309.59

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£257.99£5.16

*price indicative

RS Stock No.:
520-886
Mfr. Part No.:
1378325
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

DD21H

Current

5A

Pitch

2.5mm

Number of Contacts

16

Housing Material

Polybutylene Terephthalate

Number of Rows

2

Shrouded/Unshrouded

Shrouded

Connector System

CONNEXIS

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin over Nickel

Minimum Operating Temperature

-55°C

Termination Type

Solder

Row Pitch

2.5mm

Maximum Operating Temperature

105°C

Tail Pin Length

3.4mm

Contact Gender

Male

Standards/Approvals

DIN EN 61984, UL Recognised Approval ID: E118976-20240611

Mating Pin Length

3.4mm

Voltage

160 V

COO (Country of Origin):
CN
The Phoenix Contact DD21H 0.85/16-H-2.5-X PCB header is an advanced interconnection solution, designed to provide reliable performance in various electronic applications. Engineered for efficiency, this connector boasts a compact profile and straightforward installation, making it the ideal choice for engineers seeking to optimise their PCB designs. With a robust construction and innovative locking mechanism, it ensures a secure connection that prevents accidental disconnection, promoting durability and longevity in demanding environments. The cutting-edge technology behind this product makes it suitable for high-density applications, while its user-friendly design streamlines assembly processes. The extensive compatibility with existing systems underlines its versatility, ideal for modern electronic manufacturing. Each unit is meticulously designed to uphold industry standards, ensuring reliability and safety for any project it supports.

Designed for wave soldering, ensuring efficient connectivity

Snap-in locking mechanism enhances connection stability

Compact dimensions allow for high-density PCB layouts

RoHS-compliant and environmentally friendly materials

Easy PCB replacement enabled by plug-in modules

Linear pinning layout simplifies installation and maintenance

Manufactured using durable black PBT for increased reliability

Enhanced electrical performance with low contact resistance

Works effectively across a wide temperature range

Suitable for diverse applications with a practical design
