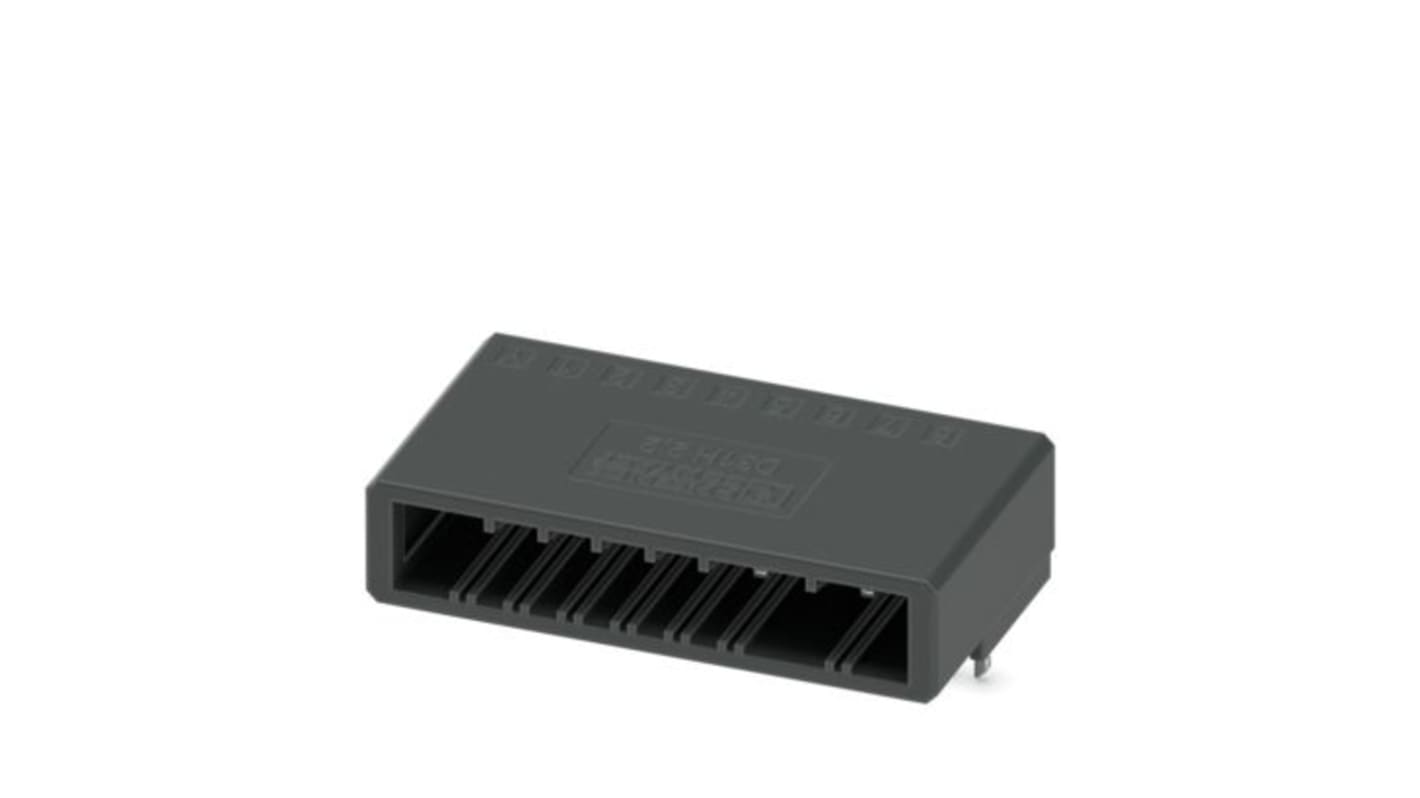

Phoenix Contact D31H Series Wave Soldering Mount PCB Header, 8 Contact(s), 3.81 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 492-874
- Mfr. Part No.:
- 1341123
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£125.51
(exc. VAT)
£150.61
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £125.51 | £2.51 |
*price indicative
- RS Stock No.:
- 492-874
- Mfr. Part No.:
- 1341123
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | D31H | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 3.81mm | |
| Number of Contacts | 8 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | CONNEXIS | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 3.81mm | |
| Termination Type | Pin | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.8mm | |
| Standards/Approvals | DIN EN 61984, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, UL 94 V0, UL Recognised Approval ID: E118976-20240617 | |
| Mating Pin Length | 3.8mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series D31H | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 3.81mm | ||
Number of Contacts 8 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System CONNEXIS | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 3.81mm | ||
Termination Type Pin | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.8mm | ||
Standards/Approvals DIN EN 61984, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, UL 94 V0, UL Recognised Approval ID: E118976-20240617 | ||
Mating Pin Length 3.8mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB header is designed for seamless integration in various applications, ensuring reliable connections and efficient performance. The D31H series guarantees a robust design with a focus on user-friendly installation. Ideal for wave soldering, this component supports a linear pinning configuration that simplifies PCB layouts while maintaining a compact form. With an impressive nominal current handling of 8 A and a rated voltage capacity of 160 V, it meets stringent electrical specifications, making it suitable for demanding environments. The combination of intuitive snap-in locking and a parallel plug-in direction enhances operational reliability, ensuring that connections remain secure. In addition, the compact dimensions and environmentally compliant materials underscore its suitability for modern electronic designs.
Robust design for reliable performance in various applications
Optimised for wave soldering to enhance installation efficiency
Compact footprint allows for space-saving PCB layouts
Linear pinning configuration simplifies design integration
Intuitive locking mechanism prevents accidental disconnection
WEEE/RoHS compliant materials ensure environmental safety
High-quality tin-plated copper alloy contacts enhance durability
Wide operating temperature range supports diverse operational needs
Minimal contact resistance contributes to superior electrical performance
