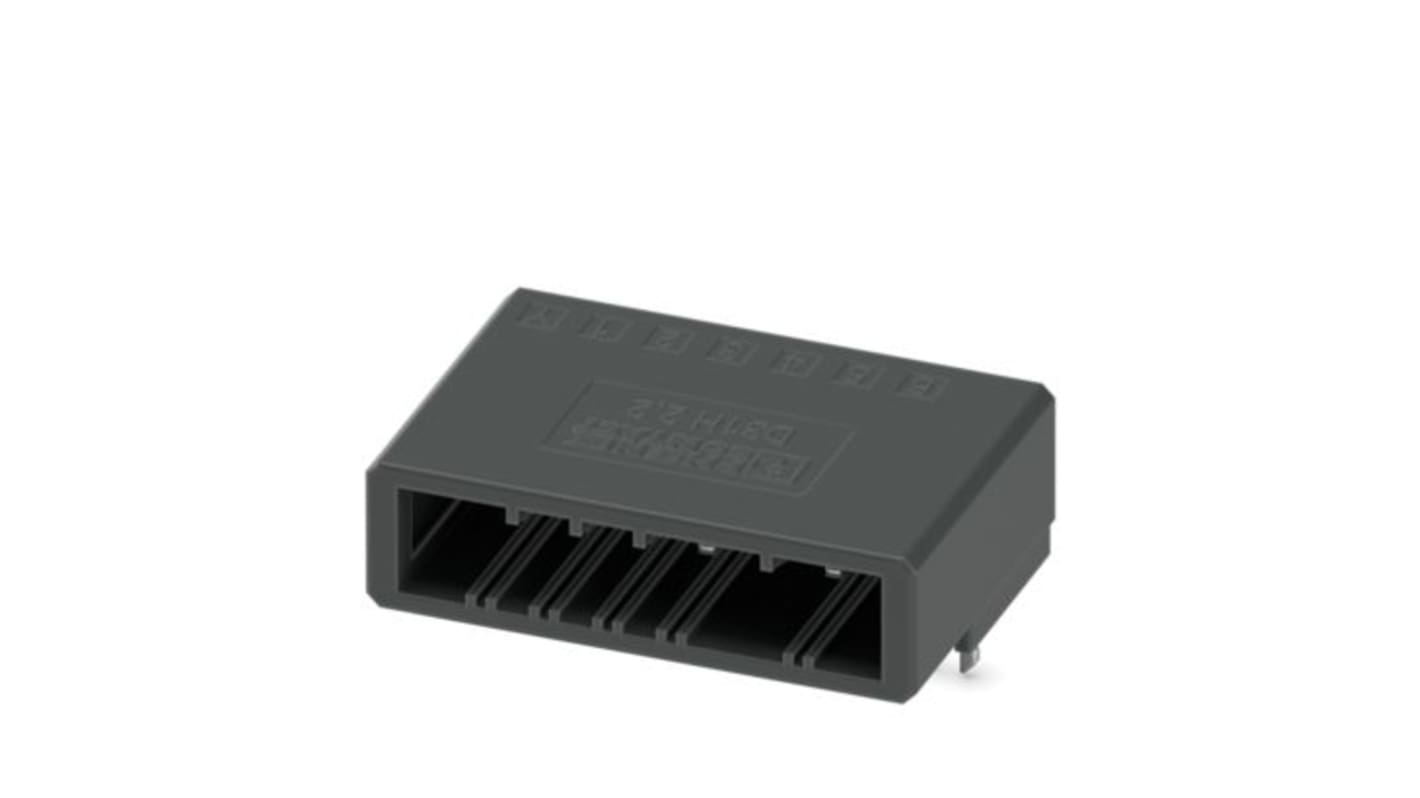

Phoenix Contact D31H Series Wave Soldering Mount PCB Header, 6 Contact(s), 3.81 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 521-607
- Mfr. Part No.:
- 1341122
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£97.13
(exc. VAT)
£116.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £97.13 | £1.943 |
*price indicative
- RS Stock No.:
- 521-607
- Mfr. Part No.:
- 1341122
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | D31H | |
| Pitch | 3.81mm | |
| Current | 8A | |
| Number of Contacts | 6 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | CONNEXIS | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Row Pitch | 3.81mm | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.8mm | |
| Standards/Approvals | No | |
| Mating Pin Length | 3.8mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series D31H | ||
Pitch 3.81mm | ||
Current 8A | ||
Number of Contacts 6 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System CONNEXIS | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Row Pitch 3.81mm | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.8mm | ||
Standards/Approvals No | ||
Mating Pin Length 3.8mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB header from the D31H 2.2/-H product family is expertly designed for seamless integration into various electronic applications. Offering outstanding functionality with the CONNEXIS Connectors S series, it provides reliable connectivity for circuit boards through its simple yet effective locking mechanism. The black housing, constructed from high-quality PBT, not only ensures durability but also compliance with strict environmental regulations. With a nominal current of 8 A and a rated voltage of 160 V, this PCB header guarantees optimal performance across diverse operational settings. Ideal for a range of applications, it promises efficient connections with easy installation and maintenance, ensuring your projects run smoothly and effectively.
Easily accommodates a linear pin layout for straightforward PCB integration
The intuitive snap-in locking mechanism secures connections reliably
Wave soldering facilitates efficient and effective assembly processes
The compact design enhances space management within electronic systems
Optimised for compatibility with the CONNEXIS plug-in system for flexible configurations
Constructed for longevity with WEEE/RoHS compliance, ensuring environmental responsibility
Tested for a range of mechanical and electrical properties, assuring quality and reliability
