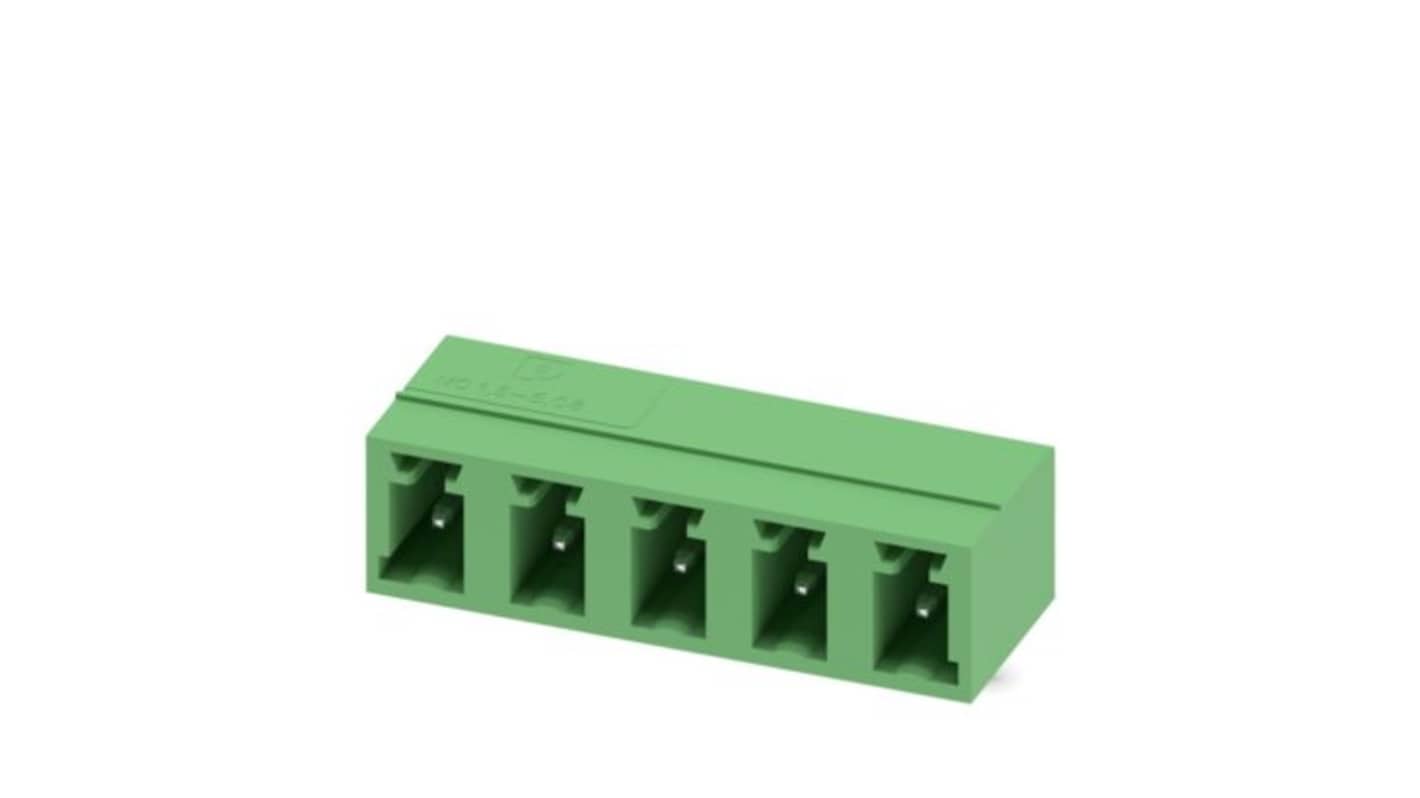

Phoenix Contact MC Series Straight Wave Soldering PCB Header, 5 Contact(s), 5.08mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 483-839
- Mfr. Part No.:
- 1836215
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£110.04
(exc. VAT)
£132.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £110.04 | £2.201 |
*price indicative
- RS Stock No.:
- 483-839
- Mfr. Part No.:
- 1836215
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | MC | |
Pitch | 5.08mm | |
Number of Contacts | 5 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Wave Soldering | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series MC | ||
Pitch 5.08mm | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Wave Soldering | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header, part of the MC 1.5/-G series, stands out with its thoughtful design aimed at simplifying connections in various applications. The compact dimensions make it versatile, while the secure linear pinning ensures reliability in performance. This connector is engineered to handle a nominal current of 8 A and is rated for a voltage of 320 V, making it an excellent choice for demanding environments. Its robust design features a green housing, crafted from high-quality materials that ensure durability and compliance with international standards. The pin layout allows for easy integration into a variety of PCB designs, while the wave soldering compatibility further enhances its utility in assembly line processes.
Designed for maximum flexibility in device design
Crafted with WEEE/RoHS-compliant materials for environmentally-friendly use
Features a secure linear pinning layout for enhanced connection stability
Offers a robust insulation resistance greater than 5 MΩ, ensuring safety
Equipped with a flammability rating of UL 94 V0 for improved fire safety
Has a durable construction to withstand a broad range of operational temperatures from -40 °C to 100 °C
Approved for both CSA and cULus standards, ensuring high-quality and safe performance
Includes a substantial minimum creepage distance to meet stringent electrical safety regulations
Crafted with WEEE/RoHS-compliant materials for environmentally-friendly use
Features a secure linear pinning layout for enhanced connection stability
Offers a robust insulation resistance greater than 5 MΩ, ensuring safety
Equipped with a flammability rating of UL 94 V0 for improved fire safety
Has a durable construction to withstand a broad range of operational temperatures from -40 °C to 100 °C
Approved for both CSA and cULus standards, ensuring high-quality and safe performance
Includes a substantial minimum creepage distance to meet stringent electrical safety regulations
