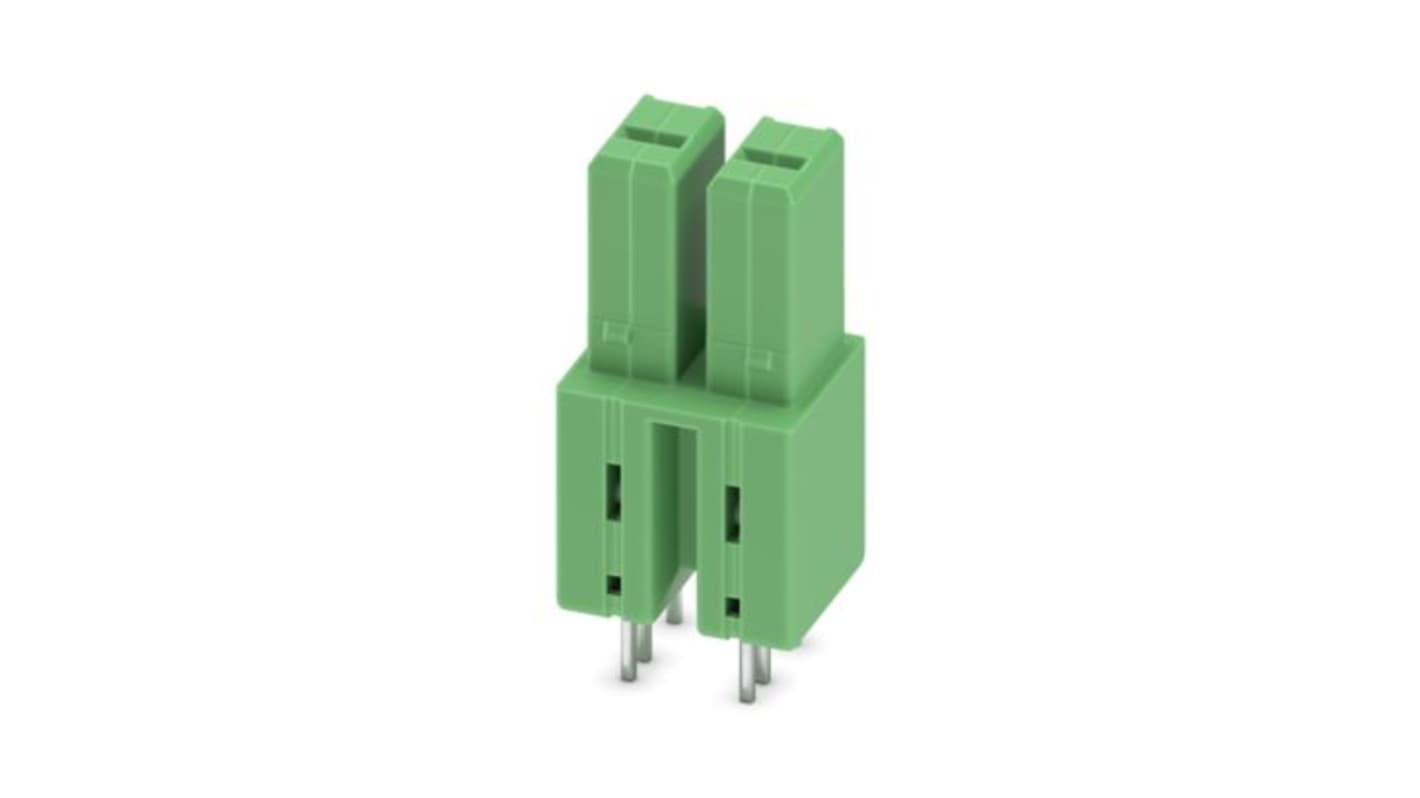

Phoenix Contact IPCV 5/ 2-G-7 Series Wave Soldering Mount PCB Header, 2 Contact(s), 7.62 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 483-652
- Mfr. Part No.:
- 1708828
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£232.49
(exc. VAT)
£278.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £232.49 | £4.65 |
*price indicative
- RS Stock No.:
- 483-652
- Mfr. Part No.:
- 1708828
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | IPCV 5/ 2-G-7 | |
| Current | 32A | |
| Pitch | 7.62mm | |
| Housing Material | Polyamide | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | COMBICON PC 5 hybrid | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Row Pitch | 7.62mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Female | |
| Tail Pin Length | 5mm | |
| Standards/Approvals | cULus Recognised, UL Recognised | |
| Mating Pin Length | 5mm | |
| Voltage | 63 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series IPCV 5/ 2-G-7 | ||
Current 32A | ||
Pitch 7.62mm | ||
Housing Material Polyamide | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System COMBICON PC 5 hybrid | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Row Pitch 7.62mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Female | ||
Tail Pin Length 5mm | ||
Standards/Approvals cULus Recognised, UL Recognised | ||
Mating Pin Length 5mm | ||
Voltage 63 V | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB Header features wave soldering for the mounting method, with a linear pinning layout. Each solder pin (P) has a 5 mm length, and there are 3 solder pins per potential. It utilizes the COMBICON PC 5 plug-in system with a standard pin connector pattern alignment. The header does not include a locking mechanism or additional mounting methods. The type of packaging is in cardboard for safe storage and transport.
Well known mounting principle allows worldwide use
Maximum flexibility when it comes to device design which has one header for connectors with different connection technologies
Inverted header with socket contacts for touch proof device outputs or PCB/PCB connections
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
