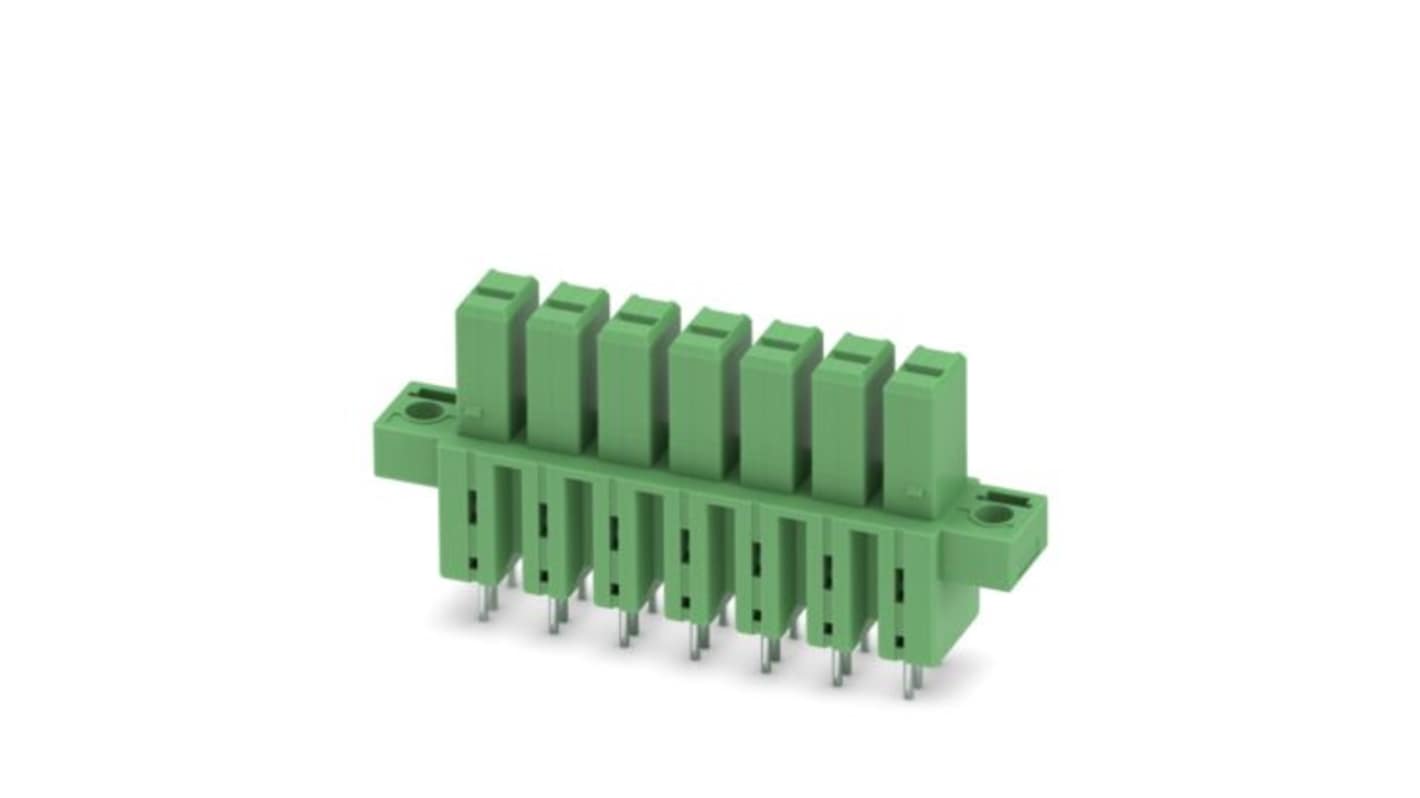

Phoenix Contact IPCV Series Wave Soldering Mount PCB Header, 7 Contact(s), 7.62 mm Pitch, 1 Row(s), Unshrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£829.97

(exc. VAT)

£995.96

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£829.97£16.599

*price indicative

RS Stock No.:
483-343
Mfr. Part No.:
1708983
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

IPCV

Product Type

PCB Header

Pitch

7.62mm

Current

32A

Number of Contacts

7

Housing Material

Polyamide

Number of Rows

1

Shrouded/Unshrouded

Unshrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON PC 5 hybrid

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Row Pitch

7.62mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Tail Pin Length

5mm

Contact Gender

Female

Maximum Operating Temperature

105°C

Mating Pin Length

5mm

Standards/Approvals

cULus Recognised, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60512-9-1, IEC 60664-1, ISO 6988, UL Recognised

Voltage

63 V

COO (Country of Origin):
PL
The Phoenix Contact PCB header from the IPCV 5/7-GF series is designed for seamless integration into various connection technologies, enhancing device versatility. With a robust design and green insulating material, this product stands out for its reliability and performance in demanding electrical environments. Its inverted configuration ensures touch-proof connections, making it ideal for both PCB-to-PCB and device outputs. Engineered for easy wave soldering, it accommodates a variety of applications while providing superior mechanical stability thanks to its screw locking mechanism. This header allows for significant design flexibility, making it a trusted choice for engineers seeking dependable connectivity solutions.

Inverted design supports touch-proof outputs

Screw locking mechanism enhances mechanical stability

Configured for wave soldering, simplifying assembly

Compatible with multiple connection technologies, offering versatility

Engineered for high current loads, ensuring reliable performance

Green colour coding facilitates easy identification in assemblies

Integrated double steel spring provides added safety against fluctuations
